The Drip Store K-VEG100 Installation Instructions

WATERING SCHEDULE
Length of Watering
Vegetable Germination 1 hour
Seedlings 45 minutes
Producing Plants 1 hour
Your plants require different amounts of water, so you will have to adjust your timing according to temperature,
wind and soil type. Use our chart as a guide, and your own experience to determine time and duration of
watering.
PARTS LIST
Part # Description
T013 500' of 5/8 inch, 15 mil drip tape with
12 inch spacing
A010 3/4 inch MPT x 3/4 inch MHT nipple
A015 3/4 inch FHT x 3/4 inch MHT
backflow preventer
F300 3/4 inch "Y" style filter with hose thread,
155 mesh, polyester screen, green
A013 3/4" FHT 25 PSI preset pressure regulator
LF503 3/4" FHT x .700 O.D. swivel adapter
with washer
T004 50', 1/2" tubing .700 OD
LF005 1/2" .700 OD compression tee
LF001 1/2" .700 OD compression coupling
A026 5/8 inch drip tape with ¼ inch
barbed connector
A027 5/8 inch drip tape end
A023 5/8 inch drip tape coupler
A006 figure 8 hose ends
SF007 goof plugs, strip of 10
A019 tubing punch
S006 5 inch hold down stakes for 1/2" tubing
Instruction manual
The Drip Store
Toll Free: 877.597.1669
Hot Warm
twice a day once a day
every day every 2 days every 3-4 days
every day every 2 days every 3-4 days
K-VEG K-VEG K-VEG
300
100
QTY QTY QTY
0 0
1 1
1 1
1 1
1 1
1 1
1 0
1 4
1 2
5 15
5 15
2 3
2 5
1 1
1 1
5 10
1 1
Copyright ©2016 030716 All rights reserved. #10001
Cool
every 2 days
INTRODUCTION
Thank you for purchasing one of The Drip Store's Drip Tape Kit. After installing the drip kit, turn the water on
and flush the system. Then, close the end of the drip tubing tape and turn the water on again. Test the system
to make sure that no leaking occurs along the connections. Please take the time to read through the enclosed
instructions and follow them step by step. If you have any questions, please call us toll free at 1-877-597-1669
or email: help@dripirrigation.com.
K-VEG
500 1000
GENERAL DESCRIPTION
QTY
The Drip Store provides you with all the parts needed to install a Drip Tape system for rows of vegetables.
1 2
The Drip Tape kit can be easily installed above or below the ground. It is designed mainly for use in vegetable
gardens or on a variety of row crops.
When installing a low volume irrigation system, please remember that drip systems require clean water and
1 2
operate at lower pressures than regular sprinkler systems. During the installation, using the filter and the
pressure regulator provided, will insure that your system will remain trouble free for years to come.
1 2
INSTALLATION
Begin the installation at the water source by attaching the backflow device to the faucet, then if you decide to
1 2
automate the system use our hose end timer. Connect the hose end timer to the faucet and then connect the
backflow device. Thread the "Y" filter to the outlet side of the backflow device, thread the pressure regulator
1 2
to the filter and thread the swivel adapter to the pressure regulator. Attach the 1/2" drip hose to the swivel
adapter by pushing and wiggling the 1/2" drip hose about 3/4" inside the adapter. Lay out the drip hose to the
vegetable garden (see different layouts). Make sure that the water flow direction in each component is in line
0 0
with the water flow arrows. After you install the drip hose and connect the drip tape into the drip hose, turn
the water on and flush the line. After flushing the lines, close the end of the drip hose and the end of Drip Tape
0 0
(see instructions how to connect each part). Turn the faucet on to pressurize the system and make sure that
there are no leaks from the filter assembly or fittings. If you use a controller, test the controller via the manual
button and then program the controller.
7 10
4 5
25 50
25 50
5 5
8 11
1 1
CONNECTING AND INSTALLING 1/2" FITTINGS
To install the 1/2" fittings, cut the drip hose with a hand pruner, being careful to keep dirt from entering
1 1
the line. Hold the fitting in one hand and the drip hose in the other and force the drip hose into the fitting by
15 30 wiggling it from side to side. Make sure that the drip hose is pushed about 1/2" inside the fitting.
1 1

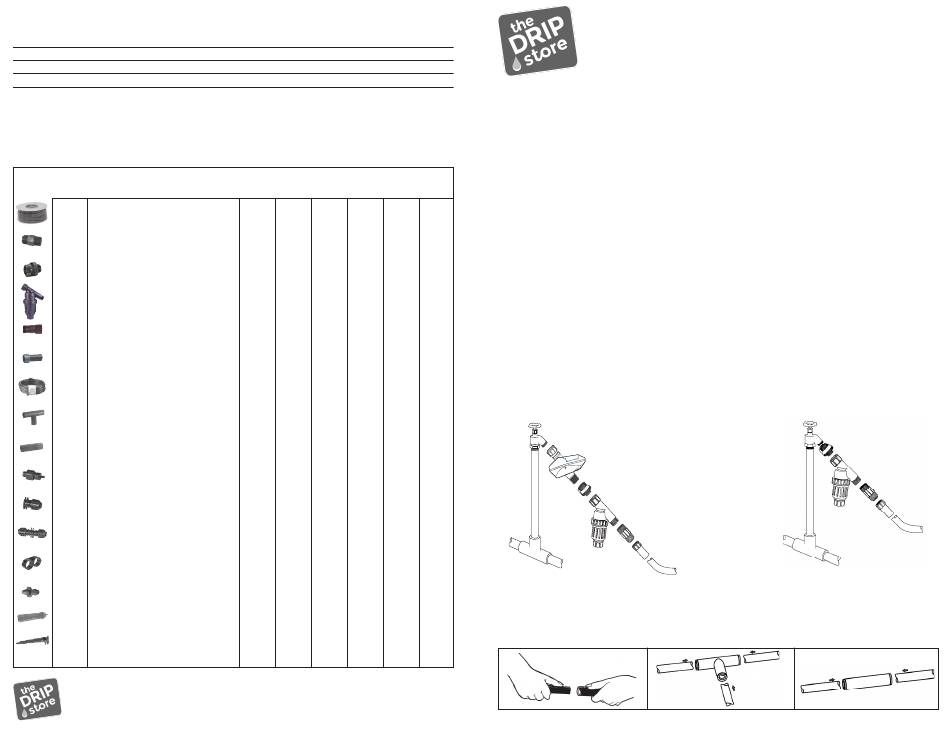

INSTALLATION INSTRUCTIONS
Model K-VEG100, 300, 500 and 1000
— C001 Timer (not included)
— A015 Backflow Device
— F300 3/4" Filter
— A013 Pressure Regulator
— LF503 3/4" Swivel Adapter
— 1/2" Drip Hose
Vegetable Drip Tape Kit
Head Assembly
without Timer
