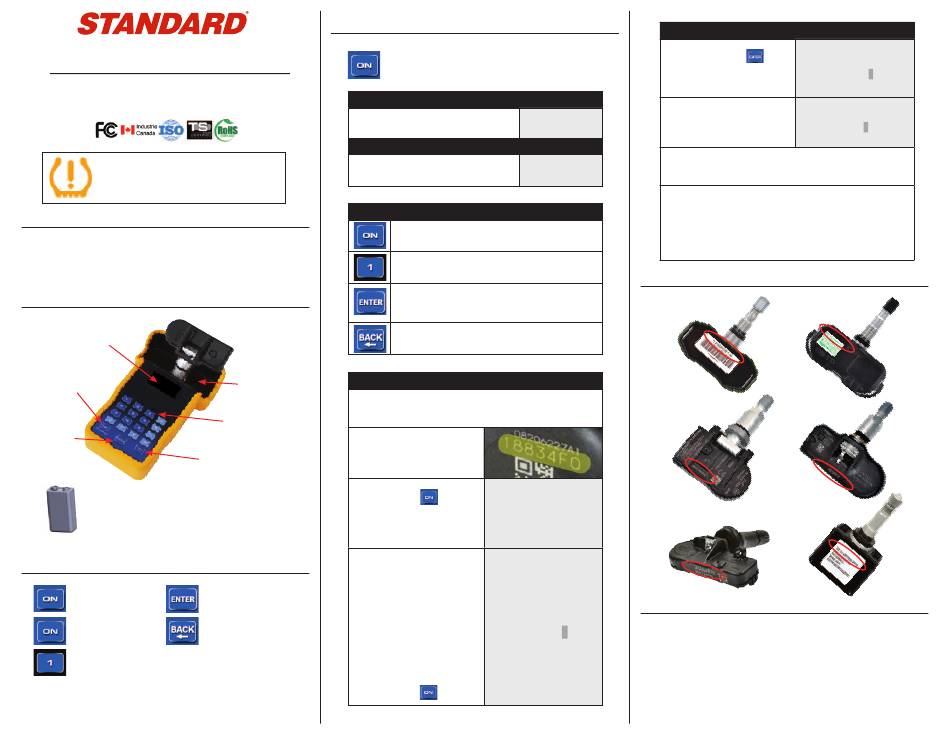

Standard TPMS Manual

IDENTIFICATION CLONING TOOL
MANUAL
To ensure correct operation and service, read
the following instructions before operating the
Identification Cloning Tool.
IDENTIFICATION CLONING TOOL USE
The Identification Cloning Tool interacts with the tire pressure sensor
through wireless (radio frequency) communication to write the sensor
identification number onto replacement sensors.
IDENTIFICATION CLONING TOOL INTRODUCTION
LCD Display
ON Key
ENTER Key
9-volt battery: Remove rubber cover and install
battery in back of tool prior to operation.
KEYPAD SUMMARY
Power unit on
Power off unit
Keypad, key in sensor
identification number
FUNCTION KEY
At power on, the tool displays the
software revision number.
While the unit is on, press and hold 'ON'
to turn the power off.
KEY
Sensor Input
IMPORTANT: After removing sensor from the tire, use TPMS
Application and Illustrated Parts Guide to determine appropriate
sensor needed to replace OE sensor.
Keypad
STEP 1:
Determine OE sensor identification
number by reading the sensor or
BACK Key
using a scan tool.
STEP 2:
Press the ON key
tool on.
NOTE: Tool shuts off automatically
if left inactive for 7 seconds.
STEP 3:
Place replacement sensor into
Identification Cloning Tool and input
OE sensor identification number.
ENTER key, to write
The 'h' or 'd' below ID number
identification number
represents input format:
h = hexadecimal (letters and
BACK key
numbers)
d = decimal (numbers only)
To change from 'd' (decimal) to
'h' (hexadecimal), or vice versa,
press the ON key
Press to turn the unit on, press and hold to turn unit off.
FIRST FUNCTION
ID Code
Ver: 1.00
SECOND FUNCTION
Bye-Bye
^0^/_
FUNCTION
ON KEY: Press and hold the ON key to power the
unit off
KEYPAD: Key in sensor identification number to be
written on blank sensor
ENTER KEY: After keying in the sensor identification
number and loading sensor, pressing the Enter key
will write sensor ID number onto blank sensor.
BACK KEY: Delete undesired inputs
ID WRITING PROCEDURE
to turn
Enter
Valve ID
018834F0
h
.
ID WRITING PROCEDURE (Cont'd)
STEP 4:
Press the ENTER key .
The tool will begin to write the
identification number onto the
new sensor.
STEP 5:
The screen will indicate that the
OE sensor ID number has been
written to new sensor by 'OK!'.
STEP 6:
Place the included sticker on the new sensor and write the ID
number for future reference.
STEP 7:
Properly dispose of old sensor.
NOTE: Old sensors will transmit signals and may interfere with
new replacement sensors and the vehicle's TPMS light may
trigger. To avoid this, place old sensors in aluminum foil or
remove from TPMS staging area.
TYPICAL OE SENSOR ID NUMBER LOCATION
Schrader Style Sensor Pacific Style Sensor
Seimens/Continental
Continental Style Sensor
Style Sensor
Snap-In Style Sensor Schrader Style Sensor
IDENTIFICATION CLONING TOOL SPECIFICATIONS
Dimensions: 143mm x 88mm x 35mm
Battery: 9V
Display: 2 line LCD, 30mm x 15 mm
Weight: 255g
Temperatures: Operational: 5°C to 45°C/41°F to 113°F
Storage: 0°C to 60°C/32°F to 140°F
Relative humidity: 70-80%
018834F0
ENTER...._h
018834F0
TX OK!_h
