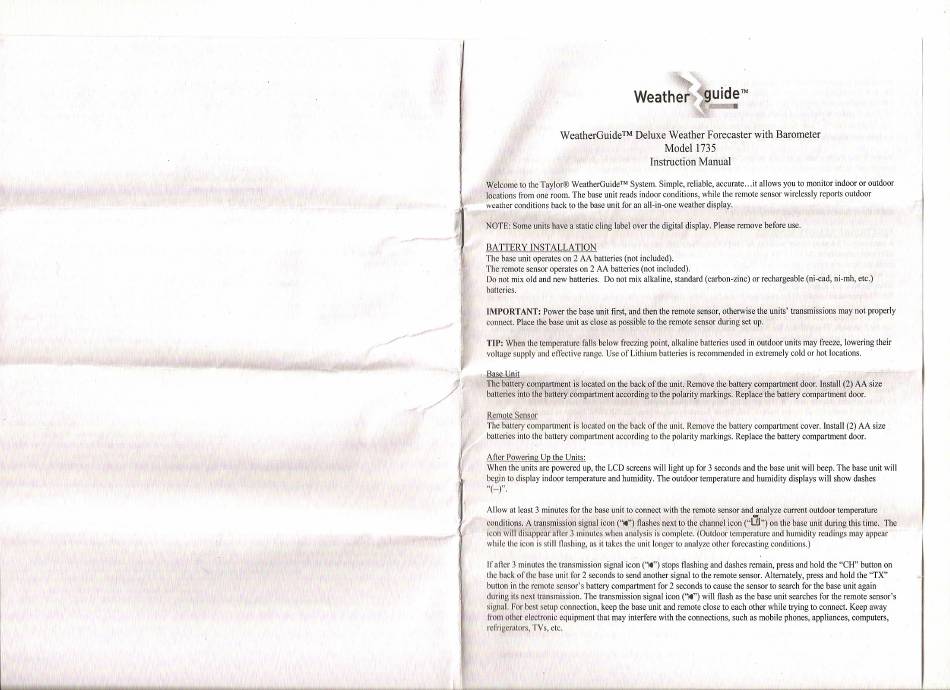

Weatherfiuide" Deluxe
Weather Forecaster with Barometer
Model
1735
Instruction
Manual
Welcome
to the Taylor®
Weatherfiuide"
System.
Simple,
reliable,
accurate ... it allows you to monitor indoor or outdoor
locations
from one
room.
The
base
unit
reads
indoor
conditions,
while
the
remote
sensor wirelessly
reports
outdoor
weather conditions back to the
base
unit
for an
all-in-one
weather display.
NOTE:
Some
units
have
a
static
cling
label over
the
digital
display. Please remove
before use.
BATTERY
INSTALLATION
The base
unit
operates
on
2
AA
batteries (not
included).
The
remote
sensor operates on 2
AA
batteries (not included).
Do
not
mix old and new batteries.
Do not mix
alkaline,
standard (carbon-zinc)
or rechargeable
(ni-cad,
ni-mh,
etc.)
batteries.
IMPORTANT:
Power
the
base unit
first,
and then the remote
sensor, otherwise the units' transmissions
may
not
properly
c
nnect.
Place the base
unit
as close as possible
to the
remote
sensor
during
set
up.
TIP:
When
the temperature
falls
below
freezing point, alkaline
batteries
used in
outdoor
units
may
freeze,
lowering
their
voltage
supply
and
effective
range. Use of
Lithium
batteries
is
recommended
in
extremely
cold or
hot
locations.
Base
Unit
The
battery
compartment
is located on the back
of
the unit. Remove the battery compartment
door. Install (2) AA size
batteries
into
the battery
compartment
according to the
polarity markings. Replace
the
battery compartment
door.
Rc
110te
Sens
r
The
battery
compartment
is
located
on
the
back of
the
unit.
Remove
the
battery
compartment
cover. Install
(2)
AA
size
batteries
into
the
battery
compartment
according
to
the
polarity
markings.
Replace
the
battery
compartment
door.
After Powering
Up
the
Units:
When
the
units are
powered
up,
the LCD screens will light up for 3
seconds
and
the
base unit will beep. The base unit will
begin
to
display indoor temperature
and humidity.
The
outdoor
temperature
and
humidity
displays will show
dashes
u(~.)n.
Allow at least 3 minutes
for the base unit
to
connect with the remote sensor and analyze
current
outdoor temperature
conditions.
A
transmission
signal icon
(''14'') flashes
next
to the
channel icon
("l1i,,)
on
the
base unit
during
this
time.
The
icon
will
dlsuppcar
allor
3
minutes
when
analysis is
complete.
(Outdoor
temperature
and
humidity
readings
may
appear
while the
icon
is
still
Ilashing, as
it
takes
the
unit
longer
to analyze
other
forecasting
conditions.)
II'
after
3 minutes
the
transmission
signal icon (''14'')
stops
flashing
and dashes
remain,
press and hold the "CH" button on
the
back
of
the
base
unit
for 2 seconds
to send another signal to
the
remote sensor.
Alternately,
press and hold the
"TX"
button
in
the
remote sensor's
battery
compartment
for 2 seconds to cause
the
sensor to search for the
base
unit again
during its
next transmission.
The transmission
signal icon ("i4") will flash as
the base
unit
searches
for the remote sensor's
sigllal.
POI'
best
setup
connection,
keep the base unit and remote close to each other while trying to connect. Keep away
from
athol'
electronic
equipment that
may
interfere with the
connections,
such as mobile
phones,
appliances,
computers,
l'olhgcl'f1tol's, TVs,
etc.
