Installation Instructions
Tools needed: power drill, #2 Philips screw driver bit

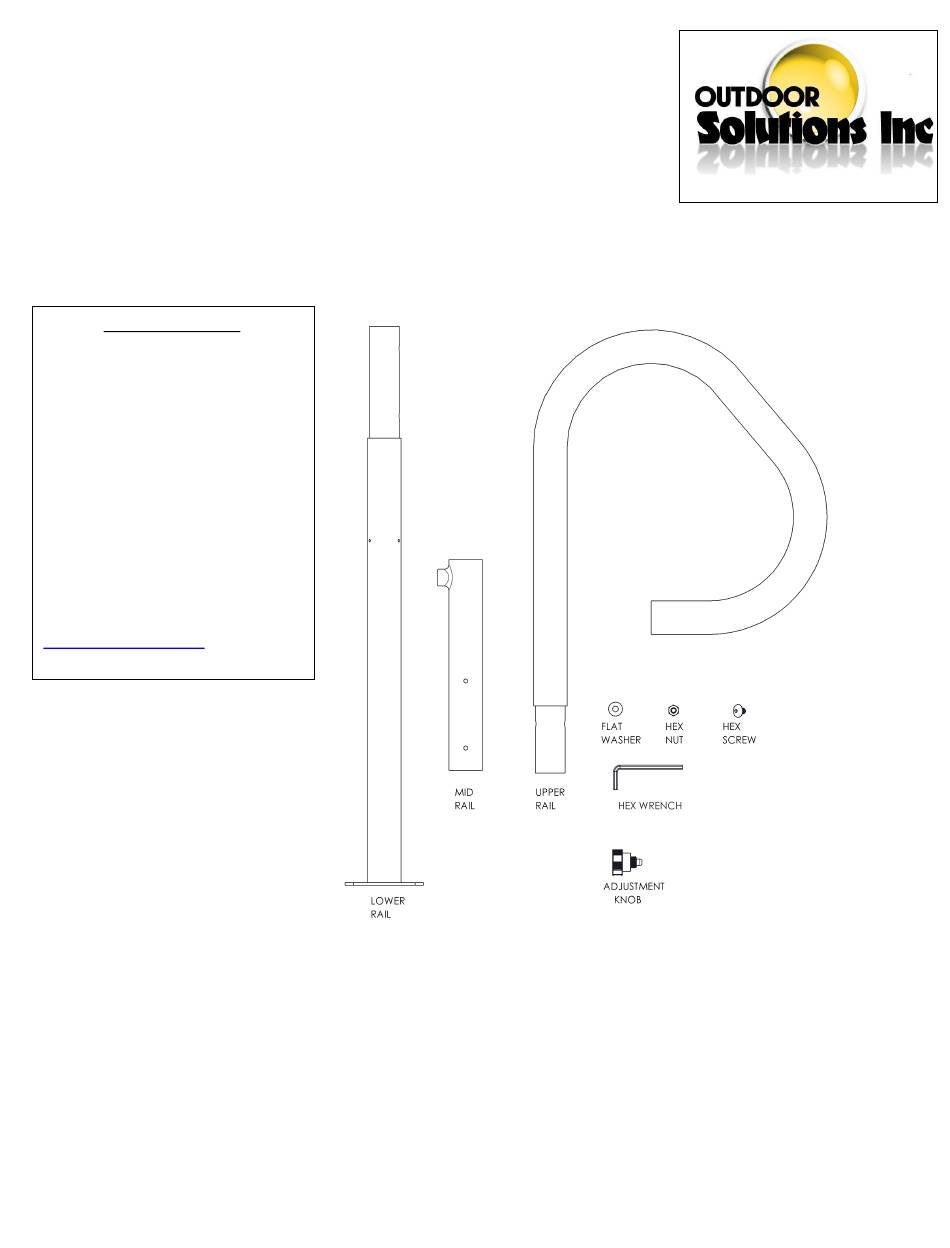

Part Identification
Part Identification
•
(12) Flat Washers
•
(6) hex nuts
•
(6) Hex Screws
•
(1) adjustment Knob
•
(1) hex wrench
•
(1) upper Rail
•
(1) mid rail
•
(1) lower rail
•
(2) support arms
(see figure 2)
Please email
osiorders@gmail.com
with any questions or missing parts.
1. Attach lower rail to four threaded stud in the base using (4) flat washers and (4) hex nuts as shown in fig
1. Do not tighten until step 2.
2. Attach (2) support arms; using (4) flat washers,(2) hex screws and (2) hex nuts as shown in figure 2.
Tighten all (6) hex nuts with the 7/16" wrench and both hex screws using the hex wrench provided.
3. Attach the mid rail to the lower rail using (4) flat washers and (4) hex screws as shown in figure 3. Tighten
using hex wrench supplied. Thread adjustment knob into mid rail as shown in fig 3. Hand tighten only.
The Guardian
Handrail by Outdoor Solutions Inc
Advertisement
Table of Contents
Summary of Contents for Outdoor Solutions Guardian
- Page 1 The Guardian Handrail by Outdoor Solutions Inc Installation Instructions Tools needed: power drill, #2 Philips screw driver bit Part Identification Part Identification • (12) Flat Washers • (6) hex nuts • (6) Hex Screws • (1) adjustment Knob • (1) hex wrench • (1) upper Rail •...
- Page 2 4. Insert upper rail into mid rail while pulling back on the adjustment knob, as shown in figure 4. This allows the Upper Rail to rotate freely. Letting you determine whether the upper rail faces the spa or the stairs to assist in entering or exiting the spa.
- Page 3 (This excludes the cost of freight to and from the manufacturer) Exclusions: • This warranty does not cover damages incurred by the use of the Guardian other than what has been depicted as normal use in this literature. •...
