Summary of Contents for EDFM CHAIN GANG
- Page 1 CHAIN GANG PROGRAMMABLE EFFECTS CONTROLLER...

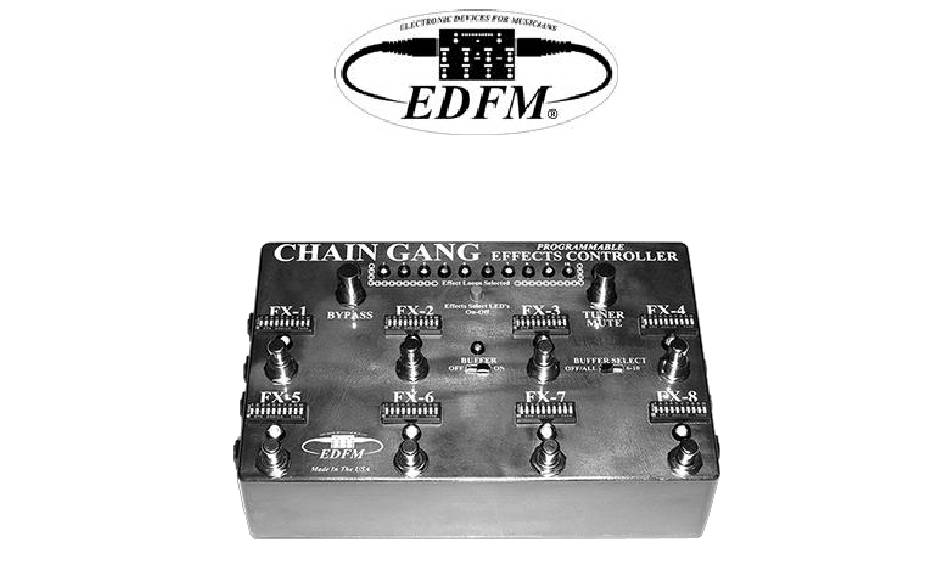

- Page 2 CHAIN GANG PROGRAMMABLE EFFECTS CONTROLLER USER Manual CHAIN GANG PROGRAMMABLE EFFECTS CONTROLLER Features: 8 programmable banks with soft touch heavy duty foot switch and unique color status indicators. 10 Individual LED's for each programmed effect selected status. On the fly programming. No need to turn off unit or unplug instruments.
-
Page 3: Top Side
CONTROLS & JACKS LAYOUT TOP SIDE 1. PROGRAMMABLE BANKS (8) 1. Each of the 8 banks consist of a heavy duty soft touch foot switch, LED on/off indicator, 10 effects select DIP switch and effects selected on/off indicator LED's. 1. FX-1 through FX-8 Effects Foot Switch's - Heavy duty Soft Touch (click-less) momentary Switches. Engages/disengages the effects that are programmed for that switches bank. -
Page 4: Back Side
BACK SIDE A total of 10 individual effects can be plugged into the Chain Gang. You can also combine multiple effects into one channel. Jacks for channel 1 - 8 are located on the back side with 9 on the left side and 10 located on the right side. -
Page 5: Right Side
RIGHT SIDE 10. INPUT jack - Connect any 1/4" instrument or other equipment here. 11. 10S Send jack - Connect this 1/4 inch jack to your effect or effects input jack. 11. 10R Return jack - Connect this 1/4 inch jack to your effect or effects output jack. 12. -
Page 6: Limited Warranty
Your EDFM Chain Gang Programmable Effect Controller pedal comes with a 1 year limited warranty on parts and workmanship. During the warranty period EDFM will repair or replace, at our option, defective parts or pedal free of charge, and return them to the owner.
