Hyperikon Triple Motion Installation Instructions

INSTALLATION INSTRUCTIONS

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS, AS YOU MAY NEED THEM AT A LATER DATE.
GENERAL: All electrical connections must be in accordance with
local and National Electrical Code (N.E.C.) standards. If you are
unfamiliar with proper electrical wiring connections obtain the
services of a qualified electrician.
TURN OFF POWER FROM THE MAIN CIRCUIT BEFORE
INSTALLING FIXTURE. Make sure fixture is grounded per National
Electrical Codes (NEC).
The safeguards and Instructions appearing on this page are not
meant to cover all possible conditions and situations that may
occur. It may be understood that common sense, cautions and
care, are factors which cannot be built into any product. The
person(s) installing, operating and responsible for the light fixture
must execute these factors.
WARNING
RISK OF FIRE AND ELECTRIC SHOCK.
CONSULT A QUALIFIED ELECTRICIAN BEFORE
INSTALLING.
WARNING Risk of fire and electrical shock. Most dwellings built
before 1985 have supply wires rated 60 degrees C. Consult a
qualified electrician before installing. If supply wires are located
within 3 inches of the ballast, use wires rated at least 90°C.
WARINING - To help prevent the possibility of electrical shock, the
use of rubber sole shoes is recommended. Exercise care; use work
gloves when handling the fixture to avoid cuts or abrasions.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.

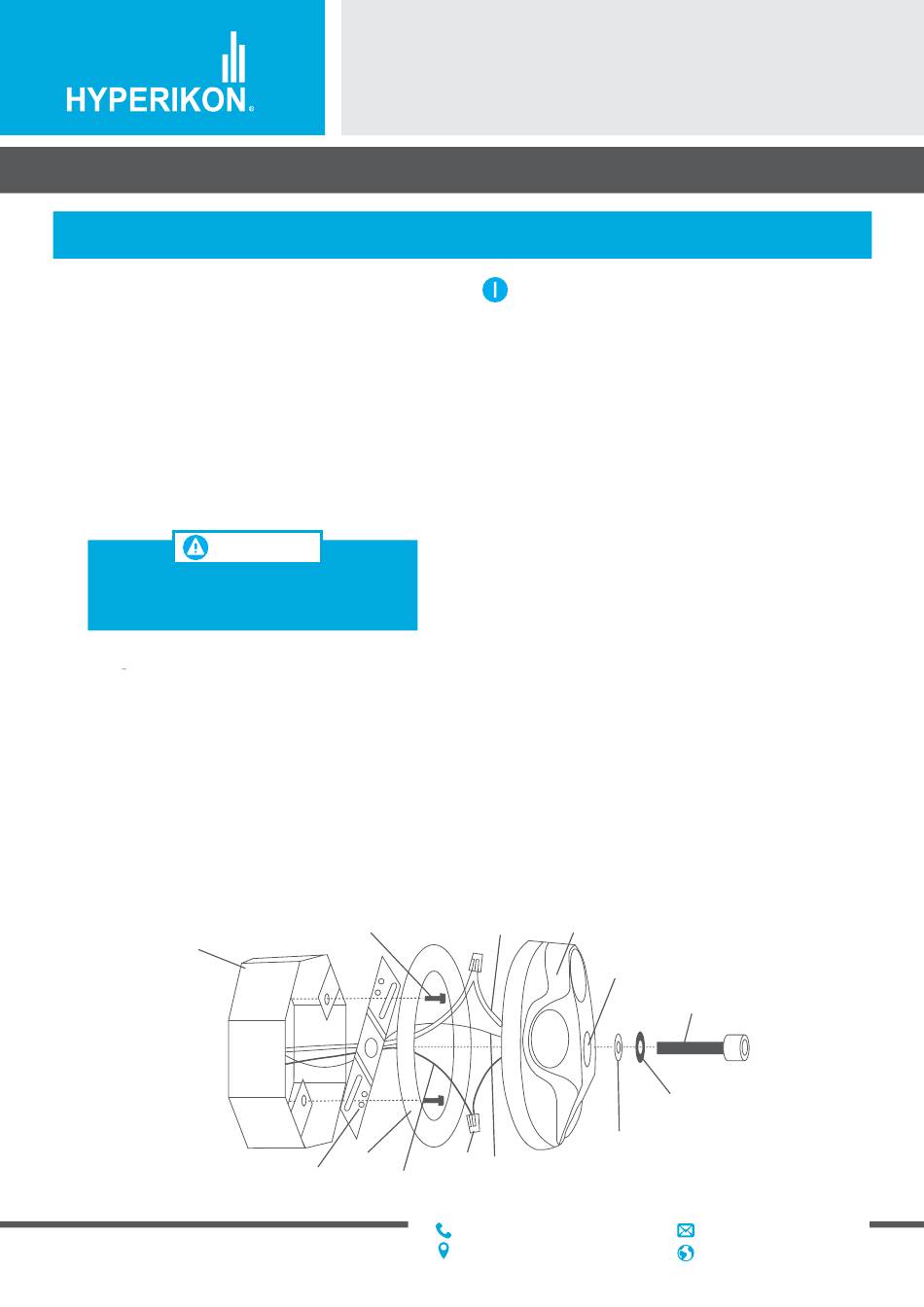

Outlet box (12)

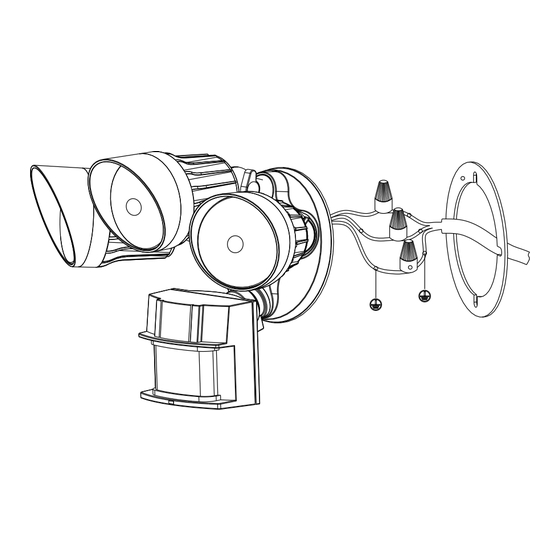

Triple Motion Security Light
Crossbar
White Wire Supply (8)
Screws (11)
Gasket (15)
Wire Nut (7)
Cross Bar (10)
Black Wire
Supply (9)
INSTALLATION INSTRUCTIONS
1. Tools needed: Philip's and Flathead screwdriver, adjustable
wrench, wire nuts, electrical tape, silicone calk.
2. Exercise care when handling the fixture to avoid cuts or
abrasions, to help prevent the possibility of electrical shock,
it is recommended to use rubber sole shoes.
3. Carefully unpack and check contents of the box to be sure
everything is included.
4. Turn OFF Power at circuit breaker box.
5. Install Cross Bar (10) to junction box using two 3/4" screws (11)
6. Electrical Connections: Make sure the supply wires and ground
wire of fixture go through the Gasket (15). Attach green/ or bare
copper wire and the green ground wire of fixture (6) to the crossbar
(10) using the ground nut of the crossbar. (Ground wire must be
properly attached or unit may not work). Connect the white supply
wire to the white fixture wire (8), cover them with a wire nut (7) or
twist together and cover really well with electrical tape. Connect
the black supply wire to the black fixture wire (9), cover them with a
wire nut (7) or twist together and cover really well with electrical
tape. Push the connected wires back into the electrical box.
7. Install Bracket Screw (1) into center hole of Fixture Back Mount
base (5). Align Fixture over J-box with Gasket (15) between it and
the Canopy. Secure the Unit to Cross Bar by tightening Center
Bracket Screw (1). Loosen adjustment knobs (13) and aim lamp
heads (14).
8. Turn on electricity at fuse or circuit breaker box and Test Unit
success of installation. (see motion)
9. Place a small streak of silicone caulk on the edge of the fixture
bracket, except at the brackets lower edge. Place the bracket of the
fixture so the bracket connecting screw protrudes out of the hole on
the fixture bracket. Make sure the fixture is oriented right side up
and not upside down on the mounting surface. Confirm that the
caulking sealant is completely around the edge of the fixture brack-
et where it meets the walls surface (There should be no caulking at
the lower edge of the bracket). Use the bracket securing nut with
rubber washer (3) to tighten up the bracket to the wall. If the fixture
bracket is not tight against the wall, you may need to adjust the two
nuts that are on the bracket connecting screw. Make sure the unit
is tight and secure against the wall.
Mount Base (5)
Center Screw (4)
Rubber Washer (3)
Green or Bare
Ground Wire (6)
(888) 846-4973
9393 Waples St, Suite 120,
San Diego, CA 92121
Bracket Screw (1)
Screw Ring (2)
