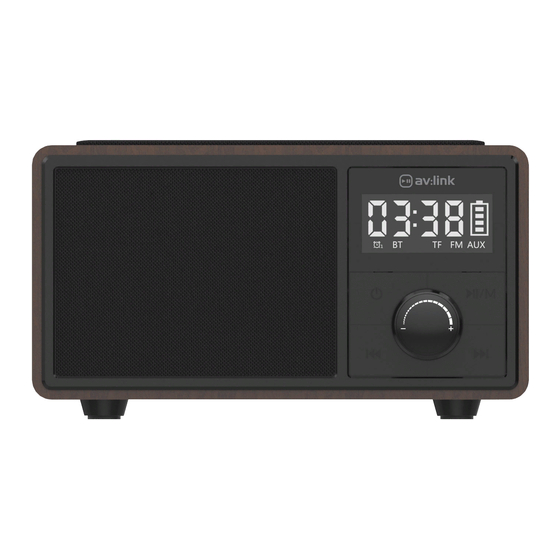

Fusion: A wireless speaker that's got it all, with an array of modern features packed into a compact, retro
design. Equipped with the latest Bluetooth technology, stream music wirelessly from your smart device and
enjoy up to 5 hours playback with the inbuilt rechargeable battery. Rear Micro SD and AUX ports add to its
versatility alongside a built-in FM radio and alarm clock functions. This stylish speaker also includes a wireless
charging plate, enabling effortless charging for compatible devices without the need for additional wires.
•
Compact, retro design that fits anywhere in your home
•
Stream your own music collection from your smart devices wirelessly via Bluetooth
•
Charge your compatible devices on the wireless charging plate (not using battery power)
•
Built-in FM radio and alarm clock functions
•
Take wherever you go with the inbuilt 1200mAh rechargeable battery
•
Internal microphone for hands-free phone calls
•
Added multimedia functionality via the rear Micro SD and AUX (3.5mm) ports
Technical Specification
FM Frequency range
USB Power
Battery
Audio output
Bluetooth version
Bluetooth range
Battery life
Input connections
Dimensions
Weight
Controls Diagram
2
1
87.5-108MHz
DC 5V
18650: 3.7V 1200mAh
5W
V5.0
Up to 10m (in clear line of sight)
Up to 5 hours from a single charge
Bluetooth, 3.5mm (Aux), Micro SD, Micro USB (DC power only)
152 x 78 x 84mm
560g
3
4
5
6
7
Bluetooth Speaker with Clock Radio
and Wireless Charging Plate
8
10
11
12
Fusion
Item ref: 120.220UK
User Manual
9
120.220UK User Manual
Advertisement
Table of Contents
Related Manuals for AV Link Fusion
Summary of Contents for AV Link Fusion
- Page 1 Item ref: 120.220UK User Manual Fusion: A wireless speaker that’s got it all, with an array of modern features packed into a compact, retro design. Equipped with the latest Bluetooth technology, stream music wirelessly from your smart device and enjoy up to 5 hours playback with the inbuilt rechargeable battery. Rear Micro SD and AUX ports add to its versatility alongside a built-in FM radio and alarm clock functions.
-
Page 2: General Usage
• Setting the time: On first use, you need to set the Fusion’s internal clock to the correct time. To do this, first switch the unit on by long pressing the Power button (2), the Fusion will enter Bluetooth mode. Next short press the Power button again to enter Standby/clock mode. - Page 3 Using the AUX connection: With the Fusion switched on, connect a compatible audio device using the 3.5mm cable provided into the AUX port on the back of the unit (10). The Fusion will detect the input and switch to AUX playback mode. Unfortunately, the track buttons on the Fusion won’t work using the AUX connection, but please ensure that the volume on the connected device is adjusted to an audible level.
- Page 4 In the box: • Fusion Bluetooth speaker • USB charging lead • 3.5mm lead • User guide Warnings • For reasons of electrical safety, this device must never be immersed in water, exposed to damp or humid conditions or subjected to excessive forces.
