Carlon CS863 Installation Instructions And Accessory Applications

Mounting Feet:
This enclosure is shipped with its mounting brackets and
installation screws packaged inside. Bracket design permits this
enclosure mounted with major dimension vertical. The purchase
of mounting feet (Part No. CJB 159) permits this enclosure to
be mounted with the major dimension horizontal to the ground.
(Cut out style only.) Use flathead screw (1/4-20x1/2") to secure
brackets to enclosure. Securely tightening the mounting brackets
will insure positive positioning of the enclosure. Torque limits for
these flathead screws are 50 in-lbs (maximum).
Covers:
The fastenings for the cover are captive slotted stainless steel
filister head screws (10-32), which are factory installed. The
torqued down limits for these screws are 25 in-lbs (maximum).
Installation of Conduit:
1) CONDUIT HOLES:
Cut holes in enclosure (when required) at the desired location.
The use of a standard hole saw is the preferred method.
For proper location of hubs, prepare a paper template with
the recommended B x C (End Installation) or A x C (Side
Installation) dimensions. Reference the table below for the
specific enclosure size. Position a standard hole saw anywhere
within the rectangle and drill (care should be taken to prevent
damaging the bosses). The maximum hub and hole size varies
with the size of the enclosure.
Reference point F should always be centered midway
between the bosses.
For side installation on hinge models, hinge side, conduit holes
should be positioned a minimum of 1" from bottom of hinge
assembly. All other dimensions are the same as on hingeless
models.
C Series Enclosures do not have the same conduit placement
requirements. It is recommended that hole locations be
centered on the sides a minimum of 1-1/2" from the bottom
and 2-1/2" from the top.

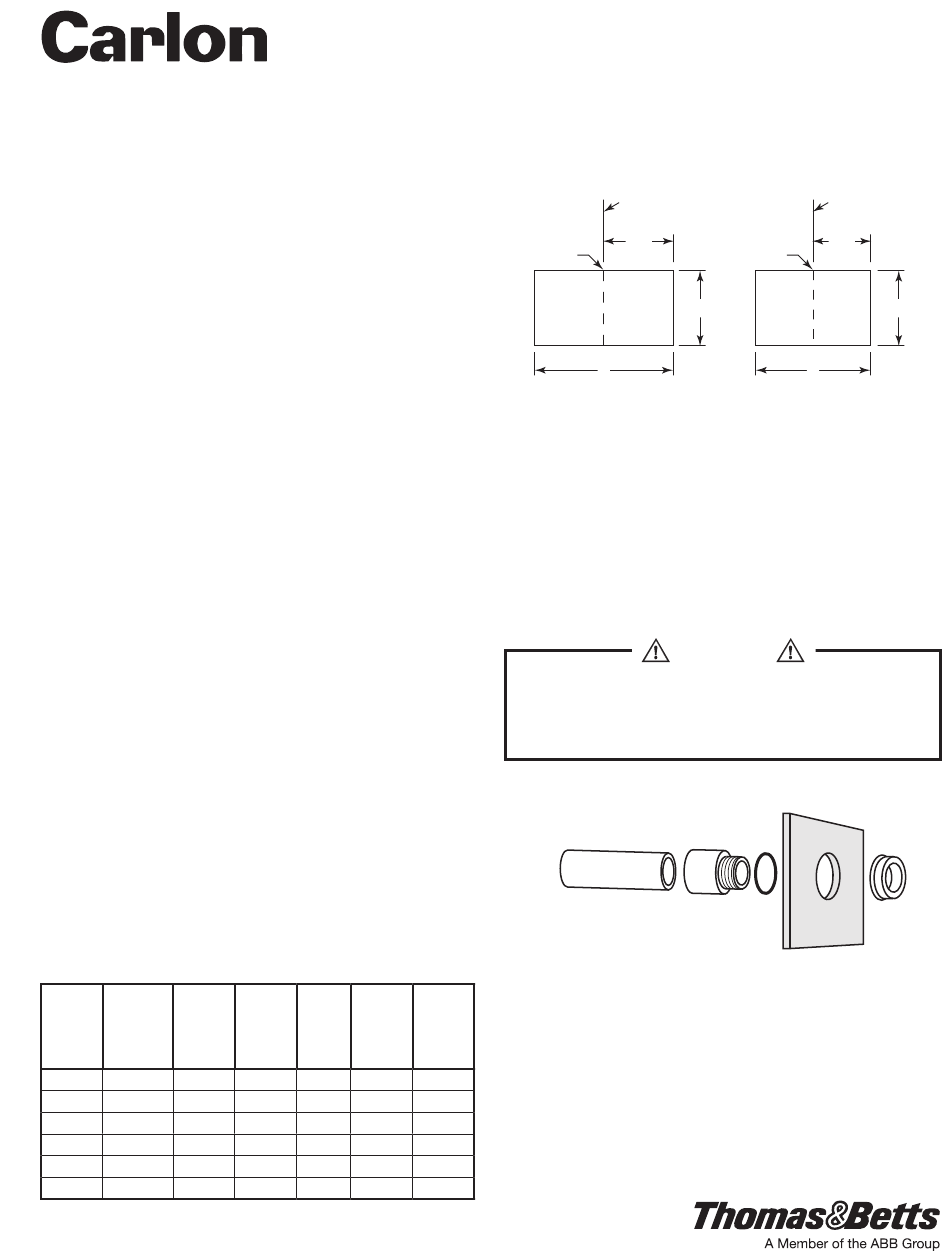

TEMPLATE DIMENSIONS FOR LOCATION
OF ELECTRICAL FITTING IN CUTOUT BOXES
PS, PJ, CS, CJ, CV & CC MODELS
Side
Catalog Inside Box Installa-
Number Size tion
A
CS665 6x6x5-3/4 5-1/4
CS863 8x6x3-1/2 7-1/8
CS1085 10x8x5-3/4 4
CS12106 12x10x6-3/4 4-3/4
CS14126 14x12x6-3/4 6
CS16147 16x14x7-1/2 6-3/4
TA04617 C Page 1 of 4
®

Installation Instructions

and Accessory Applications
Long
End
Side
Installa-
Max.
tion
Conduit Conduit
B C
Size
2-3/4 2-1/4 1-1/2
2-3/4 1-5/8 1-1/2
4-3/4 2-1/4 1-1/2
6-3/4 3-3/4 2-1/2
8-3/4 4-1/2 3-1/2
10-3/4 4-1/2 3-1/2
F
B
Figure 1
2) CONDUIT CONNECTIONS:
a. Metallic Conduit:
1. Secure the conduit connector (hub) onto the conduit, as
the hub shall be connected to the conduit BEFORE the
hub is connected to the enclosure.
2. Secure conduit connector (hub) into the prepared
enclosure hole using the connector locknut.
3. Attach grounding bushing having the proper size ground
wire lug over the connector locknut.
In accordance with the National Electrical Code, the
enclosure must be bonded between the grounding
bushings or between the grounding bushings and
the equipment grounding terminal (when provided).
Carlon Watertight Hubs
(See Hub Section)
Figure 2
b. Nonmetallic Conduit (see illustration above): Secure
Short
conduit to the conduit connector (hub), and the
Side
hub shall be connected to the conduit BEFORE the
Max.
hub is connected to the enclosure, then secured
Size
into the prepared hole using the connector locknut.
1-1/2
NOTE: Ground bushing not required when
1-1/2 attaching to nonmetallic conduit.
1-1/2
2-1/2
3-1/2
3-1/2
Line up with scribe
Line on "TOP" or "BOTTOM"
of box.
B
1/2
F
C
