LCD-SW900 INSTRUCTIONS
LCD-SW900 INSTRUCTIONS

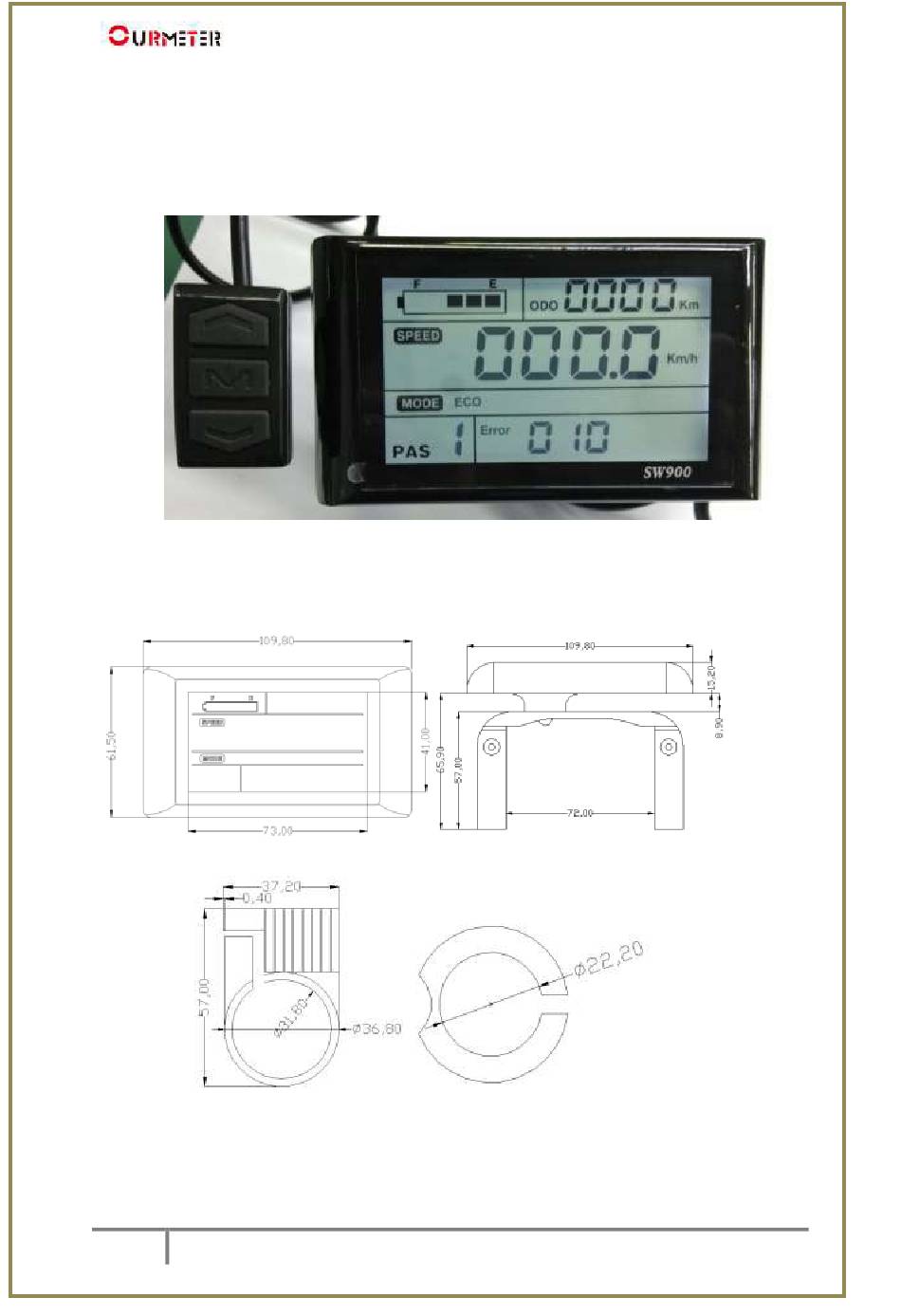

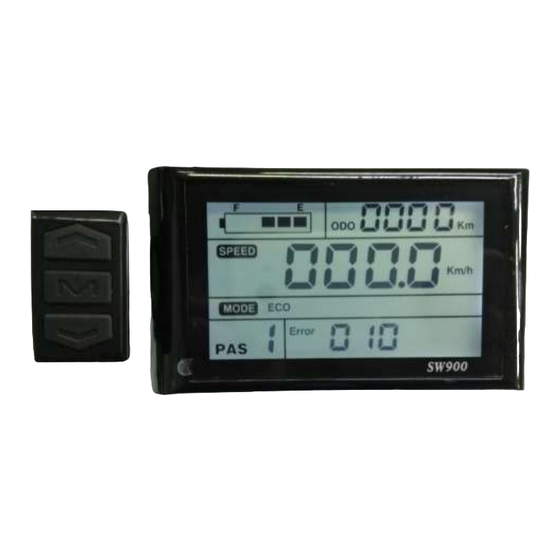

1. Shell's Size and Material
The shell's material is ABS. LCD screen is made of imported high hardness acrylic, and the
hardness is equal to the tempered glass.

Front View

Side View

Side View of the Holder

Optional size: 22.2mm, 25.4mm

2. Working Voltage and Mode of Connection

2.1 Working Voltage: DC24V 36V 48V (set by the meter), other voltage could be customized.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD-SW900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ourmeter LCD-SW900

  • Page 1 LCD-SW900 INSTRUCTIONS LCD-SW900 INSTRUCTIONS 1. Shell’s Size and Material The shell’s material is ABS. LCD screen is made of imported high hardness acrylic, and the hardness is equal to the tempered glass. Front View Side View Side View of the Holder Optional size: 22.2mm, 25.4mm...
  • Page 2 LCD-SW900 INSTRUCTIONS 2.2 Mode of Connection: Standard Connectors Line Sequence: Red Line (D+): Power Positive Black Line (GND): Power Negative Blue Line (DS): Controller’s electric door lock Brown Line (DD+): Lighting control’s Positive ( If the controller’s software and hardware support...
  • Page 3 LCD-SW900 INSTRUCTIONS 4.1 Headlight 4.2 Power status 4.3 Multi-functions Total Distance(ODO), Single Trip Distance(TRIP), Error Code(Error), Wattage(WATT), Maintenance(Maintain), DST TO GO(Unused temporarily) 4.4 E-Bike Mode Economic mode(ECO), Standard mode(STD), Powerful model(POWER), Hand speed-control model(SPEEDHANDLE), Walk assisted model(WALK) 4.5 Speed display Maximum speed(MAX), Average speed(AVG) MPH, KM/H are both optional.
  • Page 4 LCD-SW900 INSTRUCTIONS Error Code Error Status Notes Normal Status Battery is undervoltage Motor’s problem Throttle’s problem Controller’s problem Communication Receiving problem Communication Sending problem 4.7 PAS grades PAS Status (0-9 grades), Cruise mark 4.8 Parameters setting P01 Speed limit. Range: 0-100km/h, 100 means without limit No-Communication Status (controlled by the meter): when the real speed is over the ones we set, the meter would shut off PWM output;...
  • Page 5 LCD-SW900 INSTRUCTIONS P07 Reset ODO. Long press for 5s, ODO could be reset. P08 Restore Factory Settings: Long press the for 5s, when the speed position displays SSSS, namely the setting parameter restores factory setting value P09 Background luminance. 1 is the darkest, 3 is the brightest P10 Voltage grades.
  • Page 6 LCD-SW900 INSTRUCTIONS Suppose it’s PAS mode now, shortly press , PAS grade +1 shortly press , PAS grade -1 5.3.2 Shift the speed display Long press , to shift the way of speed display 5.3.3 ON/OFF 6KM/H cruising, ON/OFF Headlight, Reset ODO When e-bike stops, long press to enter 6KM/H cruising mode.
  • Page 7 LCD-SW900 INSTRUCTIONS b. Shortly press to shift to the next parameter, and to save current values at the same time. c. Long Press to exit setting parameters and to save values. If not press these buttons, it would exit and save parameters modified automatically 10s later.
