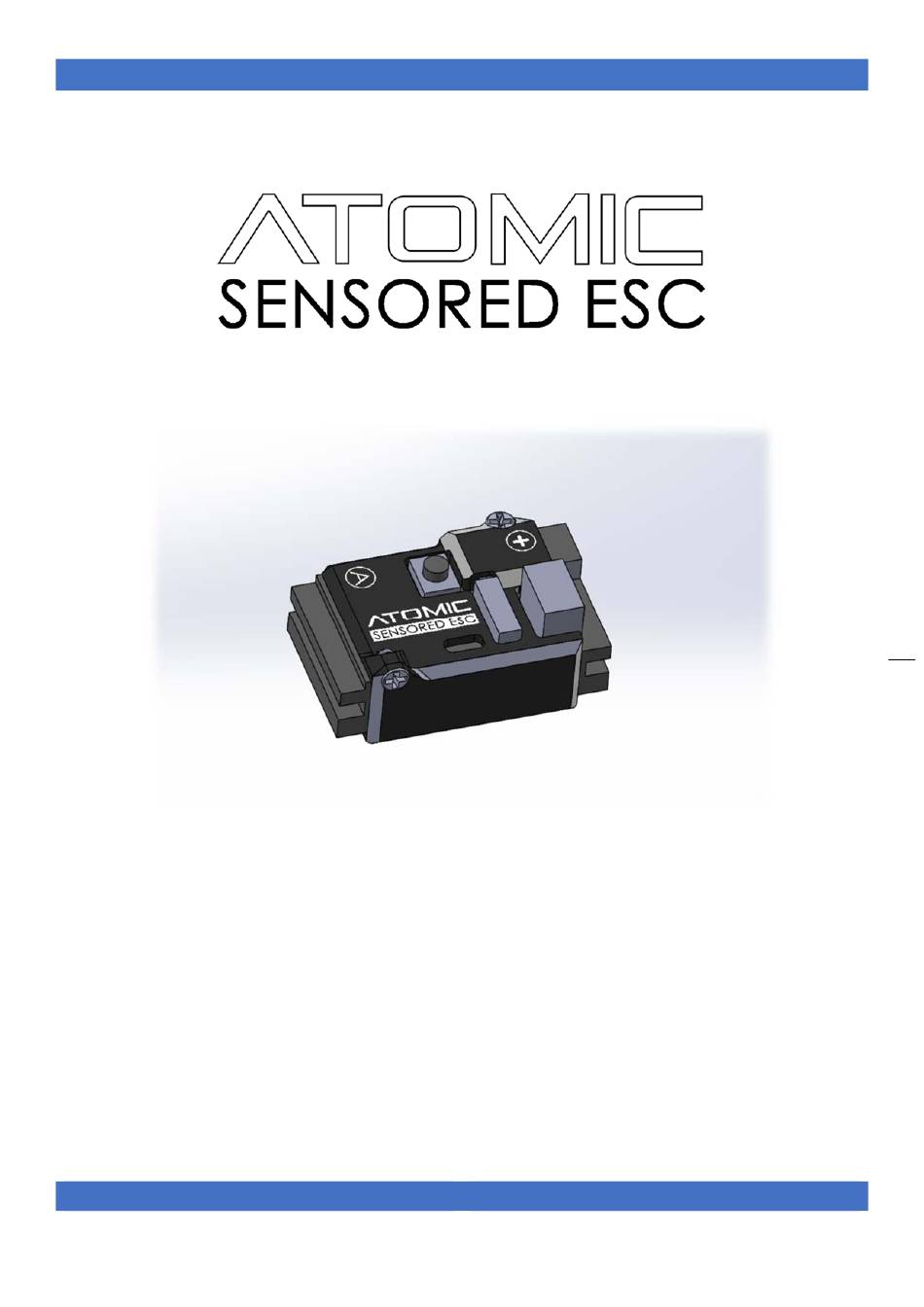

Page 1 INSTRUCTIONS 1 INSTRUCTIONS ATOMIC ...
Page 2 INSTRUCTIONS Thank you for purchasing the ATOMIC SENSORED ESC (electronic speed controller). We strongly recommend reading through this user manual before use. We do not assume responsibility for any losses caused by unauthorized modifications to our product. We are only responsible for our product cost and nothing else as result of using our product. Warnings:  Ensure all devices or wires are well connected, in order to prevent poor connections that may cause your vehicle to lose control or other unpredictable issues like damage to the device.  Always disconnect and remove batteries after use, as the ESC will continue to consume current if it’s still connected to batteries (even if the system is turned off). Long‐time contact will cause batteries to completely discharge and result in damage to batteries or ESC or both. Features:  Ultra mini size, easy to put on 1:28 scale RC cars  Compatible with both sensored or sensorless brushless motors on the market.  Aluminum casing with excellent heat dissipation.  Various protections control: motor locked up protection, low‐voltage cutoff protection, thermal protection and fail safe. 2  Advanced programming via portable LCD program box (sold separately). Specifications Current Rating 24A Continues, 40A Peak BEC Output 6V – 1.5A, 7.4V ‐‐ 1A ...
Page 3 Motor wire ‐ A Battery wire + Motor wire – B Battery wire – Motor wire – C LED signal Signal Cable to Receiver / Program Box 3 Sensor cable Motor wire ‐A to the motor A solder‐tabs Motor wire ‐B to the motor B solder‐tabs Motor wire ‐C to the motor C solder‐tabs Connect the sensor cable to the motor (if you using sensored motor) Connect battery wire ”+” to battery “positive” wire Connect battery wire “‐“ to battery “negative” wire. Connect the Signal cable to the receiver. INSTRUCTIONS ATOMIC ...
Page 4 1‐ Switch on transmitter and throttle stick at neutral position. 2‐ Connect the battery to ESC 3‐ Press and hold the ESC power button, until a BLUE Led light up. 4 4‐ When the BLUE Led light up, ESC is in Throttle Calibration mode and the neutral position is saved in the ESC. 5‐ Move the throttle to the full throttle position, then the BLUE Led will be flashing until a solid BLUE Led will be light up. Light up BLUE Led represent the full throttle position has been set. 6‐ Move the throttle stick to the full brake position, then the RED Led will be flashing until a solid RED Led will be light up. Light up RED Led represent the full brake position has been set. 7‐ Move the throttle stick back the neutral position again, then the flashing RED & BLUE (purple color) Led will be light up that means throttle range setting has been completed. 8‐ Reboot: Power off the ESC and Power on it. After reboot the ESC now is ready for run. LED Signals Throttle Neutral Blue Full Throttle Blue + Red Full Backward Red INSTRUCTIONS ATOMIC ...
