HotShot TP3 Fitting Instructions

HotShot Sports Equipment Ltd
0800 483 6647
Www.hotshot-sports.com
APPLICABLE TO TP3 & TP4 NET SYSTEM:
NET WINDING HANDLE
POST END CAP
A
B
NET POST
PLUMB
LEVEL
GROUND SLEEVE
ATTACHING THE NET TO FIXED END POST ATTACHING THE NET TO WINDING END POST
A B

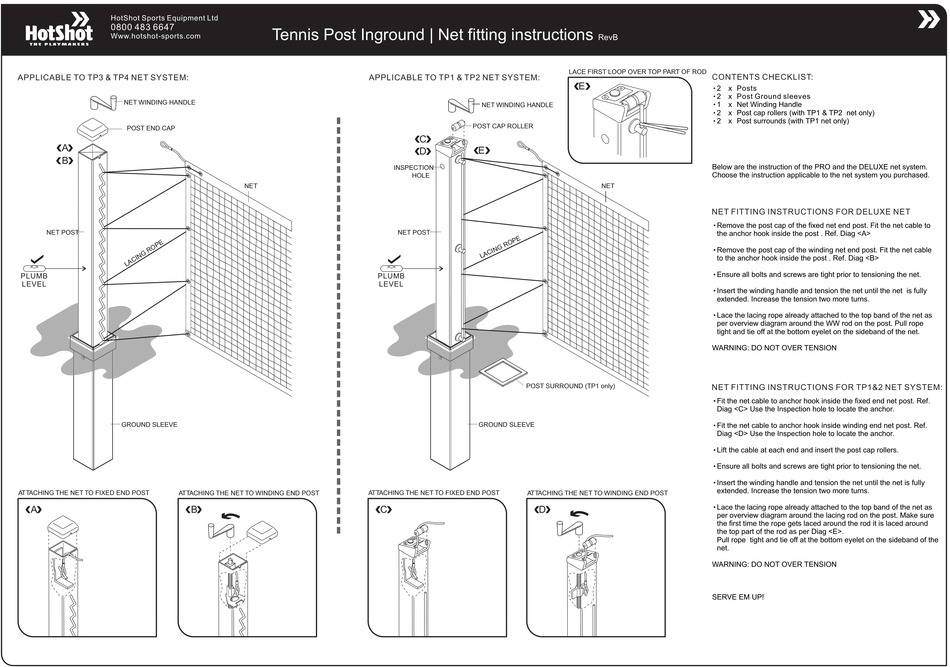

Tennis Post Inground | Net fitting instructions
APPLICABLE TO TP1 & TP2 NET SYSTEM:
C
D
INSPECTION
HOLE
NET
NET POST
PLUMB
LEVEL
ATTACHING THE NET TO FIXED END POST
C
RevB
LACE FIRST LOOP OVER TOP PART OF ROD
E
NET WINDING HANDLE
POST CAP ROLLER
E
NET
POST SURROUND (TP1 only)
GROUND SLEEVE
ATTACHING THE NET TO WINDING END POST
D
REQUIRED
TOOLS:
5mm 12mm 13mm 18mm
CONTENTS CHECKLIST:
2 x Posts
h
2 x Post Ground sleeves
h
h 1 x Net Winding Handle
h 2 x Post cap rollers (with TP1 & TP2 net only)
h 2 x Post surrounds (with TP1 net only)
Below are the instruction of the PRO and the DELUXE net system.
Choose the instruction applicable to the net system you purchased.
NET FITTING INSTRUCTIONS FOR DELUXE NET
h Remove the post cap of the fixed net end post. Fit the net cable to
the anchor hook inside the post . Ref. Diag <A>
Remove the post cap of the winding net end post. Fit the net cable
h
to the anchor hook inside the post . Ref. Diag <B>
h Ensure all bolts and screws are tight prior to tensioning the net.
Insert the winding handle and tension the net until the net is fully
h
extended. Increase the tension two more turns.
h Lace the lacing rope already attached to the top band of the net as
per overview diagram around the WW rod on the post. Pull rope
tight and tie off at the bottom eyelet on the sideband of the net.
WARNING: DO NOT OVER TENSION
NET FITTING INSTRUCTIONS FOR TP1&2 NET SYSTEM:
h Fit the net cable to anchor hook inside the fixed end net post. Ref.
Diag <C> Use the Inspection hole to locate the anchor.
Fit the net cable to anchor hook inside winding end net post. Ref.
h
Diag <D> Use the Inspection hole to locate the anchor.
h Lift the cable at each end and insert the post cap rollers.
h Ensure all bolts and screws are tight prior to tensioning the net.
Insert the winding handle and tension the net until the net is fully
h
extended. Increase the tension two more turns.
h Lace the lacing rope already attached to the top band of the net as
per overview diagram around the lacing rod on the post. Make sure
the first time the rope gets laced around the rod it is laced around
the top part of the rod as per Diag <E>.
Pull rope tight and tie off at the bottom eyelet on the sideband of the
net.
WARNING: DO NOT OVER TENSION
SERVE EM UP!
