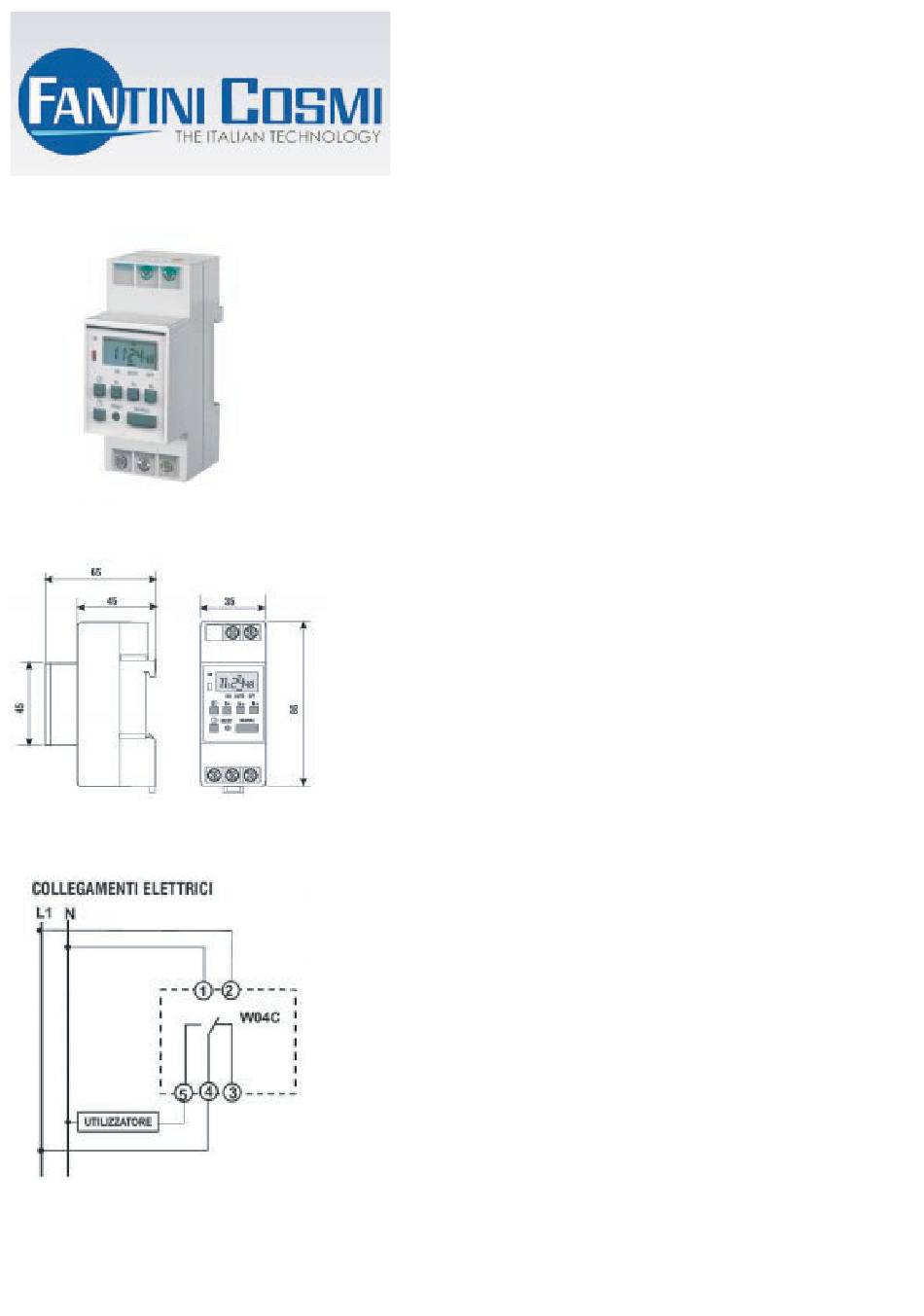

Fantini Cosmi W04C Quick Start Manual

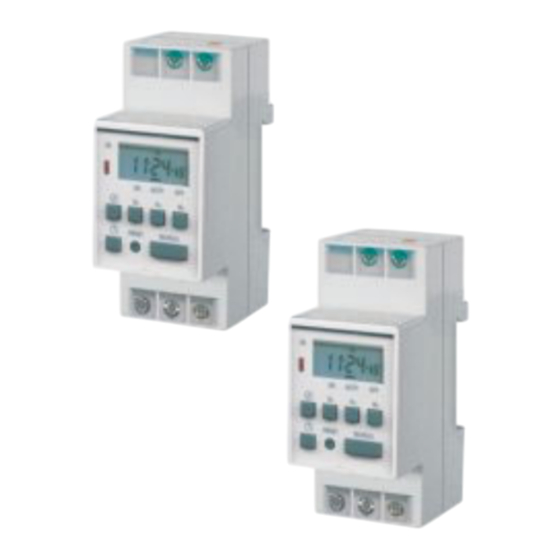

W04C Digital Timer
for DIN Rail Mounting
- Time switch with daily or weekly programmes and for universal use.
- User-friendly programming system, via 6 control buttons and a RESET key.
- On the liquid crystal display the following are read: hour, minutes, seconds,
day of the week: mo (Monday)-tu (Tuesday)-we(Wednesday)-th(Thursday)-
fr(Friday)-Sa(Saturday)-su(Sunday).
- Automatic or manual operation ON-OFF
- 16 programmes (8 on and 8 off )
- Can be programmed for individual days or blocks of days.
- Programmable minute-by-minute.
- Entered programmes can be checked.
- Manual switch-over to AUTO and ON or OFF permanently.
- LED to indicate the status of the contact
- Charge of over 100 hours.
- Fast connection of the case to the 35 mm rail EN 50022-3 DIN 46277-3
- Electronic unit in compact, modular (2 modules) shock-proof thermoplastic
case, suitable for mounting several switches side by side.
- Transparent cover to protect the control buttons.
- 16 available memories (8 ON and 8 OFF)
- Clock precision ± 1 minute/month
- TÜV approval
- Power supply 220V-250V 50-60Hz
- Consumption 4.4W
- Output via SPDT electromagnetic relays with voltage free terminals
- Contact rating 16(8)A-250V
- Charge of over 200 hours with NIMH battery 1.2 V dc
