Summary of Contents for Altek AICAMX2

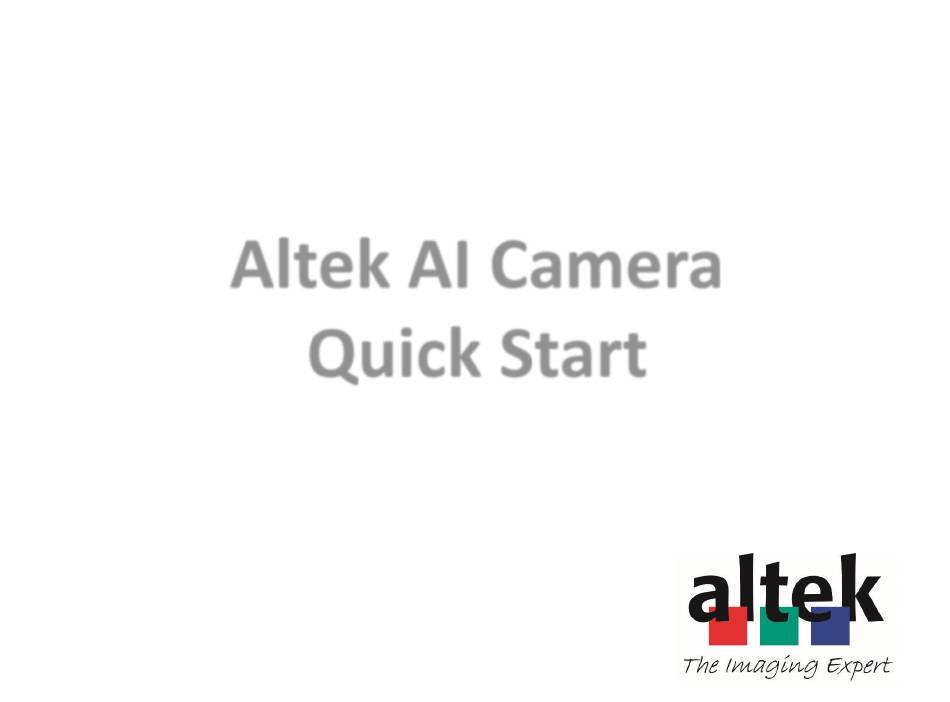

- Page 1 Altek AI Camera Quick Start...
-
Page 2: Product Specifications
Product Specifications • Model name: AICAMX2 • Max resolution: 8MP • Operating temperature: - ˚C ~ 4 ˚C • Focal Length: 4mm • F number: F1.8 • USB: Type C (DC in only) • Sensor: 1/1.8“ CMOS... -
Page 3: Parts And Controls
Parts and Controls... -
Page 4: Before Start
Before start Register account at https://azure.microsoft.com/ Log in by your azure account to Azure portal. Choose + Create a resource, then choose Internet of Things. Then, create your own Iot hub and Iot Edge (Refer to https://docs.microsoft.com/en-us/azure/iot-fundamentals/ for detail) Choose + Create a resource, then choose Internet of Things. Then, create your own Iot hub and Iot Edge Copy the value of either Connection string—primary key or Connection string—... - Page 5 Add iot edge device at Azure cloud...
- Page 6 Select your device , and set module...
- Page 7 Add Iot Edge module...
- Page 8 Setup for vison module codes snippet in Container Create Options "HostConfig": { "Binds": [ "/data/misc/camera:/app/vam_model_folder" "NetworkMode": "host" "NetworkingConfig": { "EndpointsConfig": { "host": {} • • Press Save on e a ove ready...
- Page 9 Click Configure advanced Edge Runtime settings button at the bottom and add this line "User": "root", in Create Options. Then, press save and next...
- Page 10 Submit your setting...
- Page 11 Get connection string from azure cloud first. Then, input connection string by OOBE process to device...
- Page 12 OOBE by webpage -1 Connect device with PC via Wi-Fi URL: setaicamera.ms You can check your SSID and password at bottom of device ( Default password is 12345678 if there is no label at bottom) • •...
- Page 13 OOBE by webpage -2 Press next directly at 1 Scan and select available wi-fi ap for want change device wi-fi password and internet access ssh account • page if you don t •...
- Page 14 OOBE by webpage -3 Input your connect string at webpage •...
- Page 15 Connection to Iot Edge • After OOBE, wait for connection confirmation feedback from web site once edgeAgent is run • You can check by below adb shell cmd • Device will automatically run Iot Edge next boot-up no matter internet is available or not docker ps –...
- Page 17 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
