Summary of Contents for Thinknx Envision 7

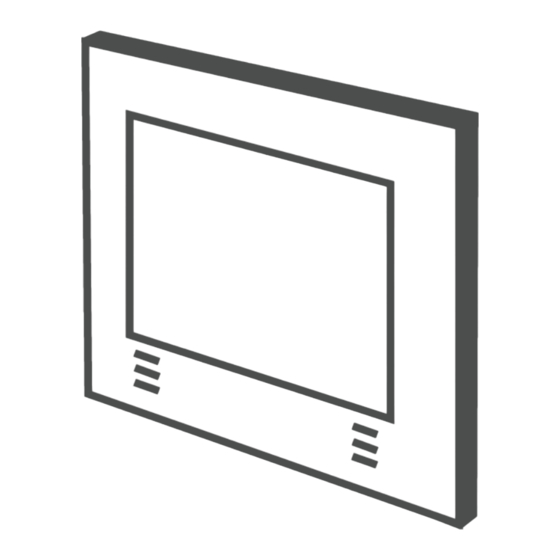

- Page 1 Envision 7 Installation sheet Scheda di installazione...
-
Page 2: Installation
Technical data Content 7’’ screen 158x93mm,1024x600 dpi resolution Envision 7 touch server Capacitive touch screen BUS and power terminal connector Quad-core ARM Cortex A9 CPU Installation Sheet 1GB DDR3 SDRAM Power Adapter 24 Vdc 30W (optional) Linux Embedded Operative System Frame (optional) Power Input: 12-24 VDC –... -
Page 3: First Configuration
After cabling central panel just insert it into the utility is available and can be downloaded from: box and fix it with the 4 screws provided with the www.thinknx.com The server is configured to box (like in the following picture). -
Page 4: Gb Ddr3 Sdram
Caratteristiche Contenuto della confezione Schermo 7’’ 158x93mm, risoluzione di 1024x600 dpi Envision 7 touch server Schermo touch capacitivo Connettore BUS e alimentazione Quad-core ARM Cortex A9 CPU Scheda di installazione 1 GB DDR3 SDRAM Alimentatore 24Vdc 30W (opzionale) Sistema operativo Linux Embedded Cornice (opzionale) Alimentazione: 12-24 VDC –... -
Page 5: Prima Configurazione
In assenza di un servizio DHCP, il server ThinKnx dispositivo. assumerà l’indirizzo di default: 192.168.0.200. Se è stato impostato un indirizzo IP statico, il server sarà... - Page 6 Go Paperless! Recycle with us! Manuals are online entirely designed and made...
