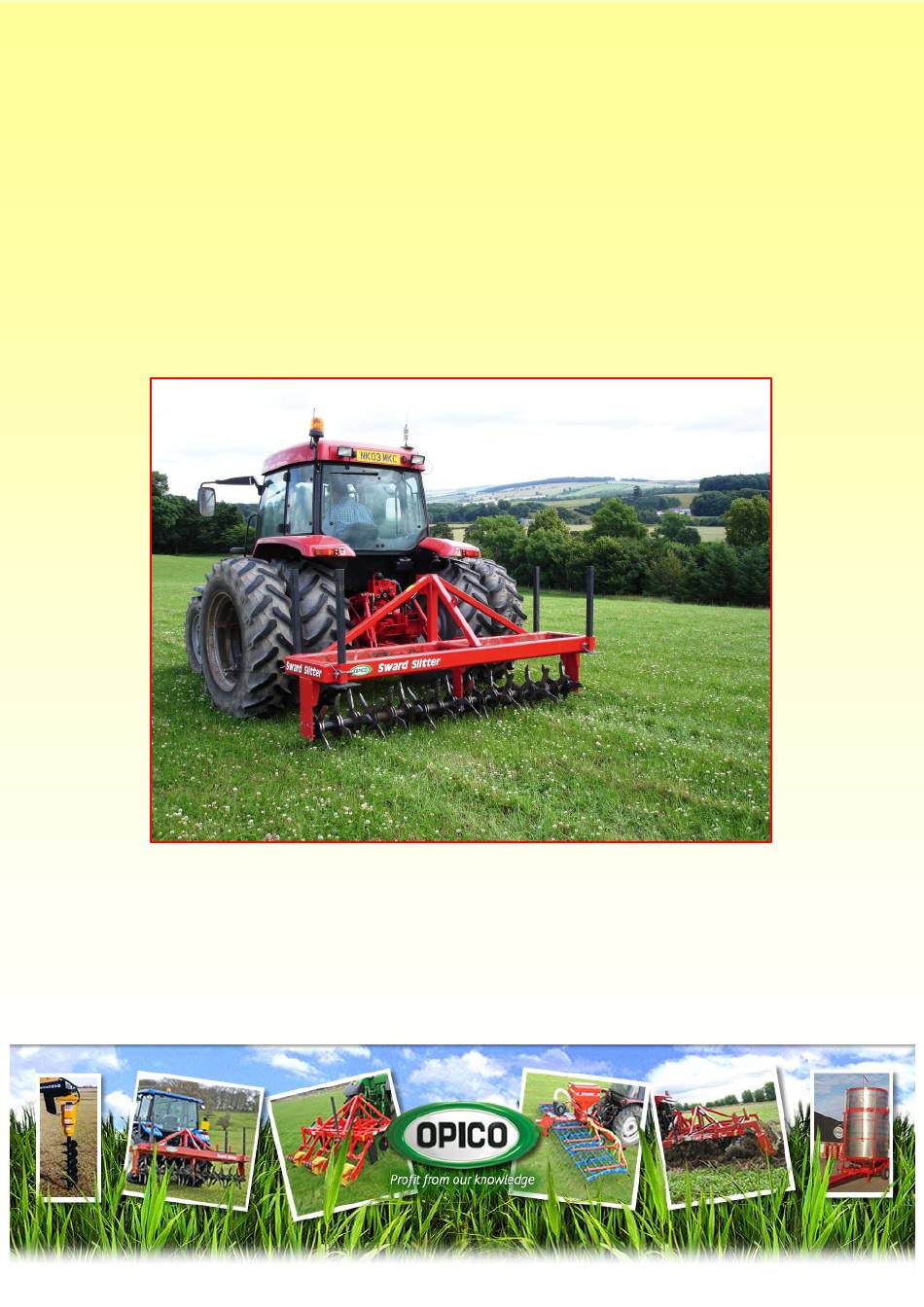

- Page 1 OPERATION MANUAL & SAFETY INSTRUCTIONS SWARD SLITTER GB, GBL & GBW OPICO LIMITED Cherry Holt Road Bourne Lincolnshire PE10 9LA Telephone: 01778 421111 Fax: 01778 425080 Email: ask@opico.co.uk Website: www.opico.co.uk Version: 15 04 Sward slitter PV...
-
Page 2: Table Of Contents
GB & GBW INDEX GLOSSARY……………………………………………………………………………………………………………………………………..3 INTRODUCTION ..……………………………………………………………………………………………………………………………..4 PURPOSE OF THE SWARD SLITTER…………………………………………………………………………………… ..5 LIABILITY AND WARRANTY………………………………………………………………………………………………..5 DANGER AND SAFETY DECALS…………………………………………………………………………………………..6 THE LOCATION OF THE DECALS………………………………………………………………………………………..9 SAFETY INSTRUCTIONS……………………………………………………………………………………………………..11 ............................. 11 ENERAL ...................... -
Page 3: Glossary
All figures, dimensions and weights are free of engagement. References to direction in the text, such as "left", "right", "front" and "rear", are always meant to be seen from the forward travel direction of the tractor. The same applies to the directions clockwise and counter clockwise. SWARD SLITTER... -
Page 4: Introduction
Pass on all safety instructions to other (fellow) users! In order to use the Sward Slitter as safely as possible, you should be well aware of all recommendations and instructions in this manual. Damage and accidents caused by non- observance of these recommendations and instructions are your responsibility. -
Page 5: Purpose Of The Sward Slitter
1. PURPOSE OF THE SWARD SLITTER Field of application The Sward Slitter is solely for use in regular arable farming. The Sward Slitter is designed to relieve the surface compaction in our grassland. This compaction in the top layer of grassland is caused by rainfall, livestock damage and traffic with heavy machines. -
Page 6: Danger And Safety Decals
Stop the engine and remove the key from the ignition when working on the machine! Attention: Carefully read the operating manual before taking the machine into operation! Danger: There is a risk of flying objects and / or clods! Keep clear! SWARD SLITTER... - Page 7 Never stand between the tractor and the machine when the power lift is being operated! Danger: Risk of injection at a leaking hydraulic system! Liquid under pressure easily penetrates through skin and clothing this can cause heavy injuries! SWARD SLITTER...
- Page 8 GB & GBW Danger: In operating position the top link must be higher on the machine side than on the tractor side! SWARD SLITTER...
-
Page 9: The Location Of The Decals
GB & GBW 4. THE LOCATION OF THE DECALS If decals are loose, have become illegible or are no longer on the machine, these must be replaced as well! SWARD SLITTER... - Page 10 GB & GBW If decals are loose, have become illegible or are no longer on the machine, these must be replaced as well! SWARD SLITTER...
-
Page 11: Safety Instructions
When making turns, take into account the length/width (turning circle) and/or swinging out, due to the large mass of the machine! Only work with machines with the protective provisions complete, intact and in the functional position! SWARD SLITTER... -
Page 12: Mounting And Dismounting
Regularly check to ensure all bolts and nuts are tight. Tighten if necessary! Parts must at least satisfy the technical specifications prescribed by the manufacturer! Always check whether replaced and/or dismounted parts are mounted correctly SWARD SLITTER... -
Page 13: Hydraulic System
(move the lever of the control valve a few times back and forth with the engine switched off)! In transport position the control valve of the hydraulic functions must be in the neutral position! SWARD SLITTER... -
Page 14: Tyres
Check the pressure of the tyres regularly and adhere to the advised air pressure. (See table). In case of doubt, contact your dealer or see a tyre tension table. Tyre Max. Min. pressure in Best pressure in Max. Pressure in speed 195 65/15 30 km/h 10.0/75 - 15,3 40km/h 14pr SWARD SLITTER... -
Page 15: Mounting And Dismounting
Fig 6.1 The top link must be higher on the machine side than on the tractor side! When the machine is in working position, the tractors power lift must be in the position that is half automatic draft control and half position control, in this way there will be enough SWARD SLITTER... -
Page 16: Dismounting And Storing
Only disconnect the hydraulic hoses when the hydraulic system of the tractor and that of the Grassland Aerator are pressure less Make sure the machine has enough stability. Dismount the machine from the tractor. Grease the rams of the cylinders to prevent corrosion. SWARD SLITTER... -
Page 17: Adjusting Grassland Aerator
The machine is also adjustable to vary the aggressiveness of the blades in order to prevent damage to the sod. Adjustable rotor angle Important: Make sure that the machine is completely horizontal, if this is not the case it can be adjusted with the top link. SWARD SLITTER... -
Page 18: Instructions For Use
It is forbidden to make tight turns with the machine in working position. The GBL version is only owned for light types of soil. It is not advisable to use the Sward slitter on ground where there are a lot of heavy stones (stones >15cm) ... -
Page 19: Maintenance
The disc blades are sharp. Avoid wrenches slipping when working near the disc blades. Avoid climbing on machine above the disc gangs where there is possibility of slipping or falling. Serious injury could occur! SWARD SLITTER... -
Page 20: Lubrication
Dispose of old oils and grease as prescribed by law. b) Twice a year c) Twice a year SWARD SLITTER... -
Page 21: Technical Specifications
GB & GBW 10. TECHNICAL SPECIFICATIONS Technical specifications Sward slitter: Type GB-2.5 GBL-3 GB-3 GB-5 GB-6 GBW-6 Number of blades Working depth max (cm) Version mounted Mounted mounted mounted mounted trailed Tyres 400/60-15.5 Working width (cm) 250 cm 300 cm... -
Page 22: Ordering Parts
If you are not sure of the correct part number of a part, you can take it to your local dealer or send in the original to prevent incorrect delivery. If decals are loose, have become illegible or are no longer on the machine, these must be replaced as well! SWARD SLITTER... -
Page 23: Ec Certificate Of Conformity
2006/42/EG), inclusive deren Änderunge, sowie mit dem entsprechenden Rechtserlaβ zur Umsetzung der Richtlinie in nationales Recht; Est conforme aux dispositions de la Directive “Machines” (Directive 2006/42/EC telle que dernièrement modifiée) et la législation nationale adoptée en application de ladite directive. Almelo, november ’14 G.J. Kamp, Director SWARD SLITTER... -
Page 24: Parts List
Countersunk head bolts M12X50 990200 Bearing UCF 207, shaft Ø35 mm 100112 Prevailing torque type hexagon nut with plastic insert M12 131005 Hexagon head bolt M10x50 100610 Prevailing torque type hexagon steellock nut M10 990243 Blades L=250 mm SWARD SLITTER... -
Page 25: Blades And Roller
Folding frame Right (without weights and axle/bearings) GB6004 M33 Bolt Ø 35 mm L=230 mm 991219 Cylinder D35-70 990878 Sealing kit for cylinder 102418 Hexagon head bolt M24x180 100124 Prevailing torque type hexagon nut with plastic insert M12 992206 Lock pin folding frames SWARD SLITTER... -
Page 26: General-Purpose
Support leg for GB-2.5 / GB-3 901100 Bracket for warning panel 992065 Wing nut M10x25 990084 Warning panel 423x423 180625 Allen head bolt ( 4x) 100506 Washer M6 (8X) 100106 Prevailing torque type hexagon nut with plastic insert M6 (4x) SWARD SLITTER... - Page 27 GB & GBW SWARD SLITTER...
-
Page 28: Weight Spindles (Old)
Spindle holder (part) shaft L=200 901010 Spindle complete (+/- 100kg weight 13 plates ) 121612 Counter sunk bolts M16X120 901002 Mounting plate 60x10 Ø 18mm 994045 Adjusting ring Ø50 mm 101007 Hexagon head bolt M10x70 901003 Plate hole Ø50mm SWARD SLITTER... -
Page 29: Concrete Slitter Weights (New)
Mounting plate 175x60x15 Ø 18mm 101612 Hexagon head bolt M16X120 8.8 qlty 100216 Washer M16 993412 Steel plate 400x17,5 L=400 (6x) 101618 Hexagon head bolt M16X180 8.8 qlty 100116 Prevailing torque type hexagon nut with plastic insert M16 SWARD SLITTER... -
Page 30: Identification Plate, Patent Plate And Safety Decals
Safety decal “Keep clear” 992057 Safety decal “Keep away from folding parts” 992058 Safety decal “Fix locking pins with inserted retaining clip” 992066 Attention decal “Correct mounting toplink between tractor and machine” 992063 Safety decal “Watch out for hydraulic leaks” SWARD SLITTER...
