Summary of Contents for PrimaCreator P120 v4

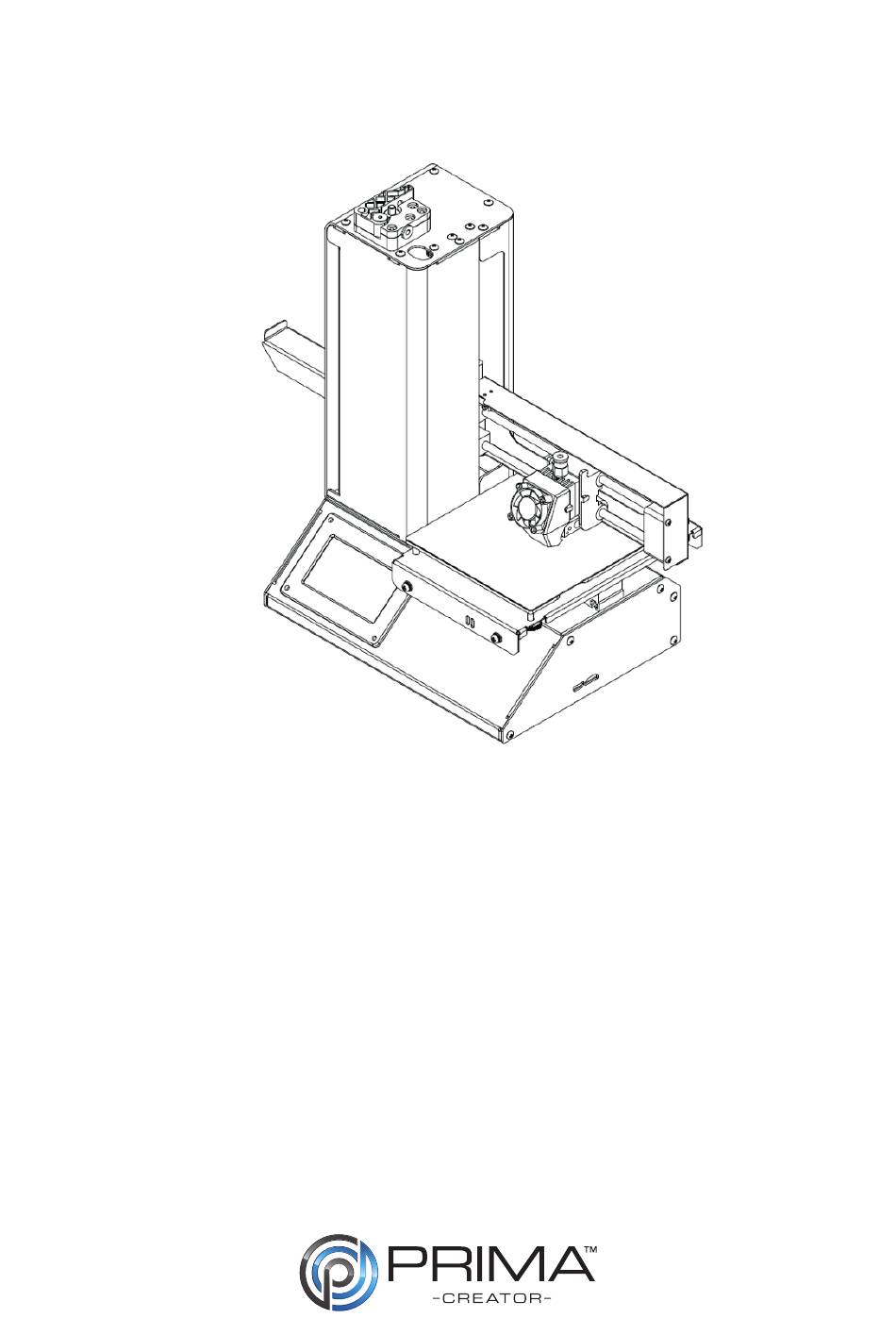

- Page 1 PrimaCreator P120 v4 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES INTRODUCTION FEATURES CUSTOMER SERVICE PACKAGE CONTENTS PRODUCT OVERVIEW SETUP WI-FI SETUP SOFTWARE INSTALLATION AND SETUP TECHNICAL SUPPORT SPECIFICATIONS REGULATORY COMPLIANCE... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES • Be careful not to damage the print surface on the build plate. • Do not remove the insulating tape on the extruder nozzle. • Take care to avoid touching hot parts, including heat block, extruder nozzle, extruded filament, and the heated build plate. -
Page 4: Introduction
INTRODUCTION Thank you for purchasing this 3D printer from PrimaCreator! This printer features a single extruder, which is capable of printing in PLA, ABS (not recommended), Wood, Copper Fill, Steel Fill, Bronze Fill, and other materials. You can print from a Windows® or Mac® PC using a USB connection or you can print from 3D model files stored on a microSD™... -
Page 5: Product Overview

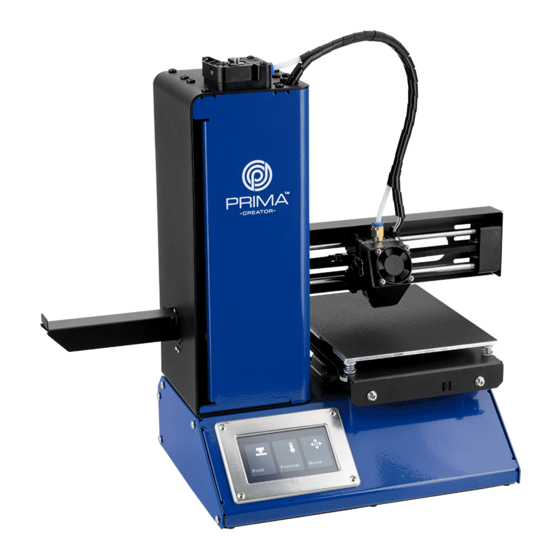

PRODUCT OVERVIEW 1. Feeding Mechanism 2. Filament Rack 3. Extruder 4. LCD Touch Screen 5. Micro USB and MicroSD Ports 6. Input Power Jack and Power Switch... -
Page 6: Setup
SETUP Perform the following steps to prepare the printer for use. 1. Remove the printer from its packaging and place it on a fl at, stable surface with plenty of ventilation and a nearby AC power outlet. 2. Open the Accessories box and remove the fi lament rack. Slide the tab at the fl at end into the slot on the left side of the printer frame. - Page 7 10. While the printer is heating, open your fi lament. Using a pair of scissors or side cutters, diagonally snip the end of the fi lament to make a point. 11. Touch the Back button on the Preheat Menu to return to the Main Menu, then touch the Move button on the Main Menu to enter the Move Menu.
- Page 8 17. After the fi rst layer has been printed, touch the Pause or Cancel button to stop the print process. 18. Compare the fi rst layer with the images in the table below to determine whether the build platform needs to be leveled or not. The nozzle is too far from the platform.
-
Page 9: Wi-Fi Setup
8. Press the Connect to WiFi button on your mobile device. The connection will be completed within 10 ~ 60 seconds, the message PrimaCreator P120 V4 is now connected to Wi-Fi will be displayed on your device's screen, and the IP address will be displayed at the top of the printer's LCD screen. -
Page 10: Software Installation And Setup
SOFTWARE INSTALLATION AND SETUP As you've seen, you can print a model directly from a gcode fi le on a microSD™ card and this is the preferred method, as it does not require a continuous connection to your computer. You can download gcode fi les to the microSD card and print them without having to build any model fi les. - Page 11 3. Use the fi le browser to select an install directory or accept the default directory (recommended). Click the Next button to continue. 4. Ensure that all boxes are checked, then click Install to continue. 5. Click Finish to complete the installation and launch the Cura software.
- Page 12 7. Click the Other option, then type in PrimaCreator P120V4. Click the Add Printer button to continue. 8. The Machine Settings screen will display. Click the Finish button to continue. You can now use Cura to print models and create gcode fi les for your printer.
- Page 13 Installing Repetier-Host You can also install Repetier-Host from the fi le on the included microSD™ card. The screenshots below show the proper Repetier-Host settings to use for this printer.
-
Page 14: Technical Support
TECHNICAL SUPPORT PrimaCreator.com is pleased to provide free technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. SPECIFICATIONS Model Prima Creator P120V4 Extruder System Single Maximum Extruder Temperature 280°C Maximum Build Plate Temperature 70°C... -
Page 15: Regulatory Compliance
• Consult the dealer or an experienced radio/TV technician for help. Modifying the equipment without PrimaCreator’s authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
