Page 1 User Manual...
Page 2: Table Of Contents

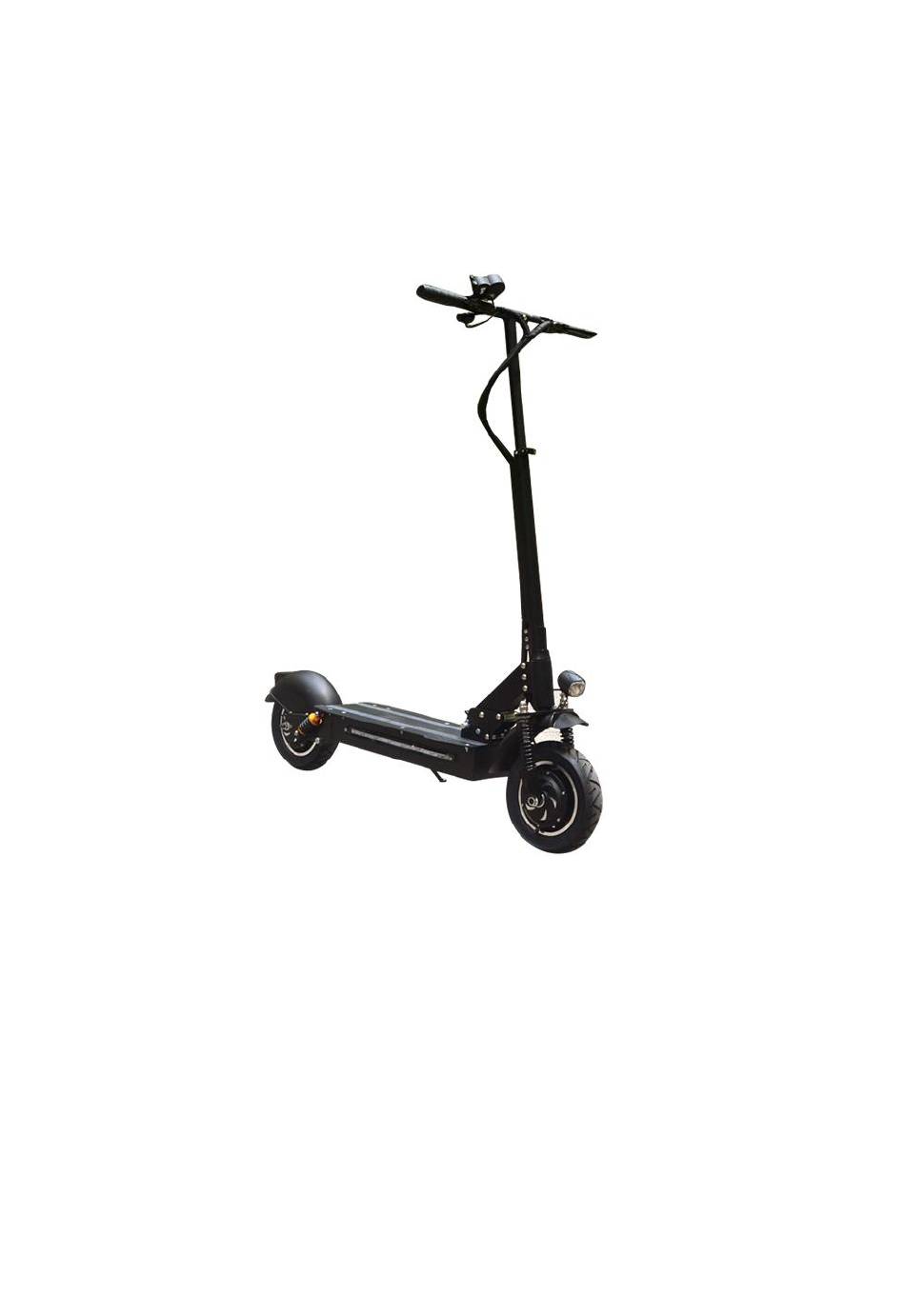

Electric scooter ER Thank you for choosing the EcoWheel ER electric scooter. The electric scooter design fulfills a new vision of an ecological world. After three years of development, tuning of every detail and testing of driving characteristics, we present you with an electric scooter that will become a part of your life. Equipped with state-of- the-art technology, it turns every city ride into a remarkable experience.
Page 3: Scooter Components
Electric scooter ER Scooter Components 1 Rear brake lever 2 Front and rear light switch 3 Direction switch. lights (T7 only) 4 Horn switch 5 Multifunction display 6 Lever lever 7 Front brake lever 8 Locking mechanism for the handlebar folding mechanism...
Page 4: Safety Notice
Electric scooter ER Safety Notice 1. The scooter is designed to carry one person. The recommended age is from 16 years. The device is also not intended for people of advanced age or for pregnant women. 2. Wear a helmet and other protective gear, incl. footwear.
Page 5 Electric scooter ER Quick-release sleeve The handlebar quick-release sleeve should be adjusted to resist when closing, and the handlebar does not slide down when pushed from above. If the sleeve is too loose, open it, tighten the knurled nut on the screw axis and close the sleeve.
Page 6: Opening Electric Scooter
Electric scooter ER Opening Electric Scooter The scooter is easy to carry and store thanks to its fast and secure folding mechanism. STEP 1 STEP 2 STEP 3...
Page 7: Folding Scooter
Electric scooter ER Folding Electric Scooter STEP 1 STEP 2 STEP 3...
Page 8: Handlebars
Electric scooter ER Handlebars Display values at power-up a / current speed in km / h b / speed mode: 1 - slow; 2 - medium; 3 - fast (last set) c / battery charge indicator (display varies according to current load / power input) d / display...
Page 9: Description Of The Display And Buttons
Electric scooter ER Description of the display and buttons Cruise control features While maintaining power / speed for about 6-10 seconds, cruise control is activated - on the display displays the symbol . Cruise control maintains engine power (speed may vary depending on terrain, for example) without holding the throttle.
Page 10: Battery And Charger
Electric scooter ER Battery and Charger Each EcoWHeel electric scooter has its battery and charger. Each scooter and its parts also have their serial number. Never charge the battery with a charger other than the one that belongs to the scooter! Otherwise there is a serious risk of damage or destruction of the battery.
Page 11: Driving Instructions
Electric scooter ER Always charge the battery in a dry and ventilated environment. Never cover the charger while it is charging, otherwise it may be damaged. The charger is designed for indoor use. The charger may be damaged by abnormal exposure to water, shock, etc. In this case, the warranty period is not applicable.
Page 12: The Scooter Malfunction
Electric scooter ER The Scooter Malfunction Changing the inner tube of the rear wheel 1. Make sure the scooter is disconnected from the charger and the display is off. 2. Place the scooter on a raised place (eg in a chair) so that the wheels are in the air and the scooter is firmly held at the bottom of the foot.
Page 13 We recommend lubricating (eg with silicone oil) the handlebar folding mechanism every 3 months (do not use WD40). Electric scooter ER Brakes Brake pads wear gradually. Brakes can be tightened after some wear - see. section before the first ride. If the brake pads are worn, they must be replaced - contact your dealer for spare parts.
Page 14: Warranty Conditions
Warranty Conditions Warranty is provided for parts or workshop scooter processing. The warranty only applies to scooters purchased from an EcoWHeel electric scooter dealer. The warranty period of 2 years is valid for the scooter and its components. The usual wear (battery capacity, tires, etc.) is not covered by the warranty.
