Summary of Contents for Image Diagnostics ilex32 4K

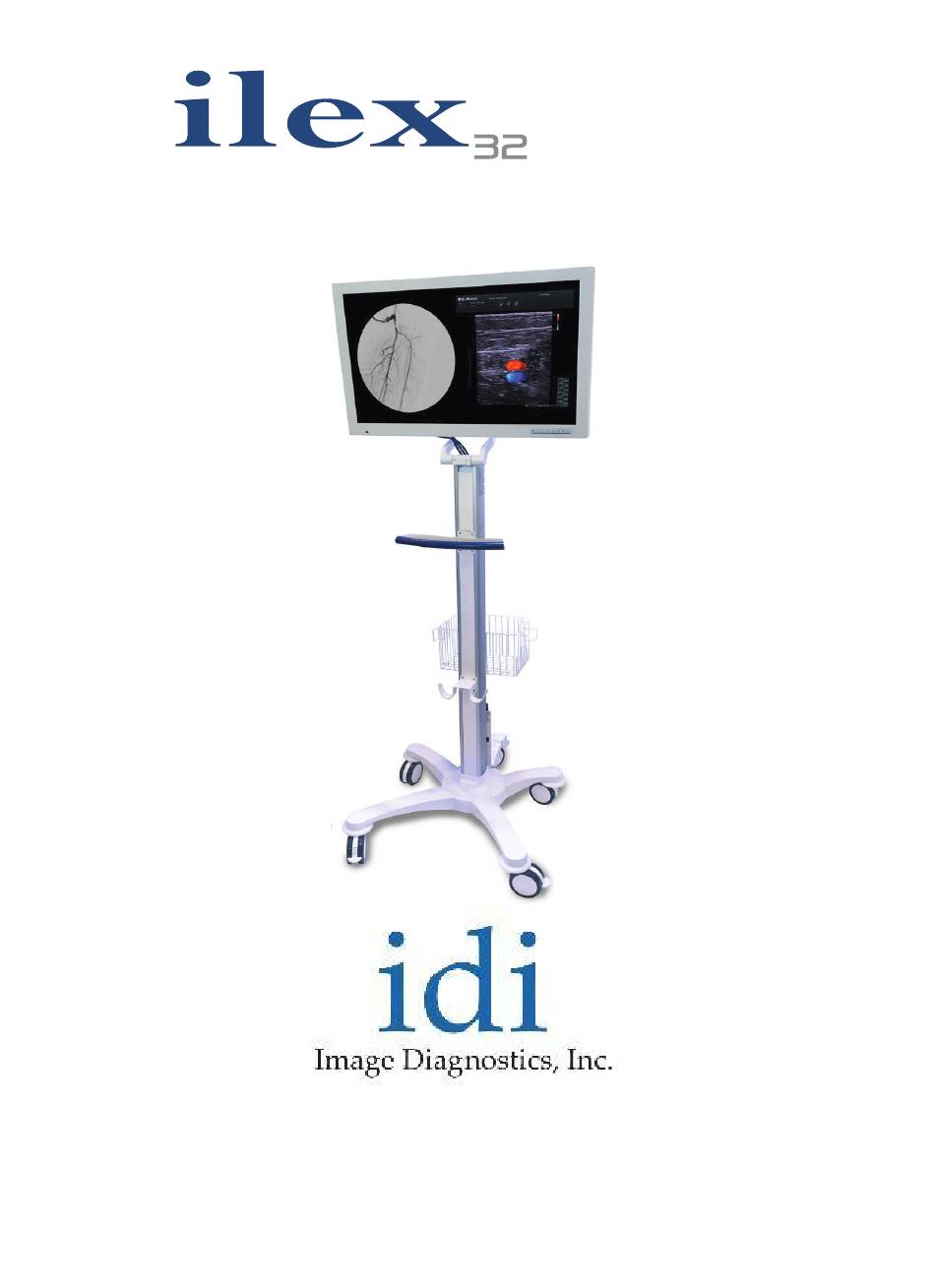

- Page 1 Installation and Operation Manual All product information and images in this document are proprietary to IDI and shall not be disclosed to any sources external to IDI customers and representatives. L280-0948 Rev. A Page 1...
-
Page 2: Component Configuration
Component Configuration Key Components • FSN 31.5” 4K monitor. • Heavy duty monitor stand with handle basket, cable, cable hooks and power brick housing. Key Concepts • All inputs are directly connected into the FSN monitor. • Programing of image size, color and PIP mode are completed through the monitors Menu feature. •... - Page 3 Assembly Tools • Metric Allen Hex Key (provided). • Medium Cross/Philips Head Screwdriver. Procedure Remove the Stand and Monitor box from its shipping pallet. Open the monitor box and place the open end on the floor (flaps open) and lift the box off of the monitor. Rotate the monitor and place it on its end and remove both of the Foam Protectors.
- Page 4 Assembly Replace the Rear Monitor Cover after connecting all the input wires using the provided thumb screws removed in step 5. Center and align the Monitor Mount Bracket to the Monitor’s Mounting Screw Holes. The Monitor Mount Bracket has multiple mounting positions to accommodate multiple Monitor Mount styles and sizes.
- Page 5 Programing FSN display monitors come equipped with a rich set of features for system set-up, image adjustments, and screen layout control. These features are managed through the “On Screen Display”, or “OSD.” Some options presented in the “OSD” are contextual and vary depending on the active input signal.
-
Page 6: Monitor Screen
Cleaning Monitor Screen Precautions • Turn the Monitor off before cleaning it. • Use a soft lint free cloth, don’t spray cleaning fluid directly on the screen as seepage could damage internal electronics. • Take care not to scratch the front filter, be mindful of jewelry and use minimal pressure to clean the Monitor face.
