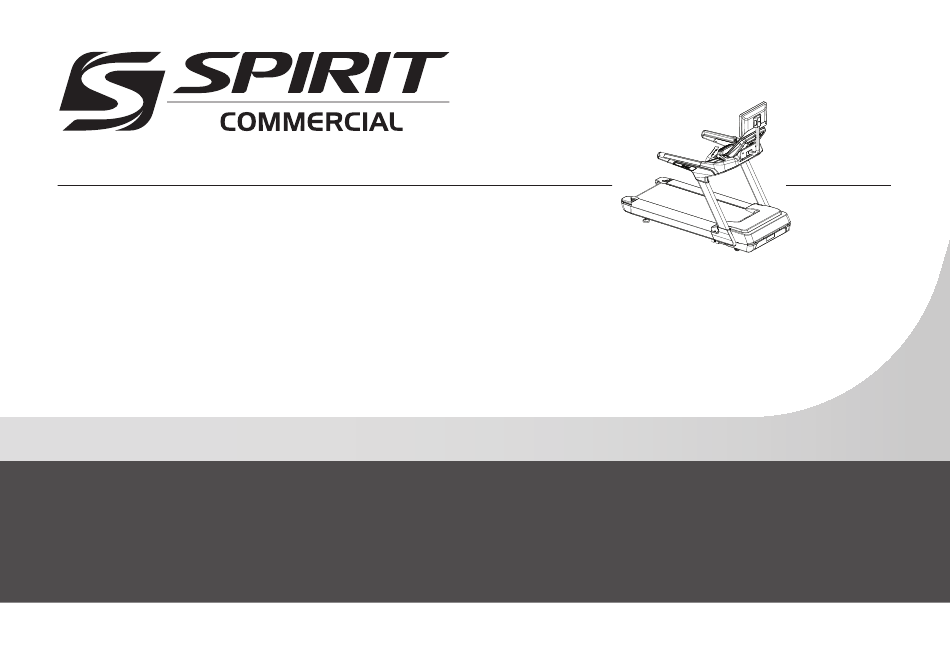

- Page 1 CT900 TV BRACKET INSTALLATION GUIDE...
- Page 2 Spirit Fitness...
- Page 3 Congratulations on your new TV bracket and welcome to the Spirit Fitness family! Thank you for your purchase of this TV bracket from Spirit Fitness. This bracket was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
- Page 4 WARNING: This product may contain a chemical known to the state of California to cause cancer, birth defects, or other reproductive harm. Spirit Fitness...
- Page 5 CT900 TV BRACKET STEP ONE 1. To route the TV cable, first remove the TV bracket cover behind the console, and the outer right side hand rail cover, and the lower right side console mast cover. www.spiritfitness.com...
- Page 6 CT900 TV BRACKET STEP TWO 1. Using the TV cable wire, or a wire snake, route the cables (indicated by thick black line) from the rear opening under the console toward the right side (left when facing the rear of the machine) and out of the console covers near the top of the right console mast.
- Page 7 CT900 TV BRACKET STEP THREE 1. Raise the incline of the machine to 15 percent to make this next step easier. Route the cables from the bottom of the console mast along the bottom of the treadmill frame to the pivot point of the incline frame.
- Page 8 CT900 TV BRACKET STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION BOLT M8x20mm SPLIT WASHER 1. Attach the TV bracket cover back onto the back of the console after removing the TV bracket dummy plate on the cover. 2. Run the cables through the TV bracket and mount the bracket to the back of the console with the four M8 BOLTS (4) and SPLIT WASHERS (5).
- Page 9 CT900 TV BRACKET STEP FIVE HARDWARE FOR STEP 5 PART TYPE DESCRIPTION SCREW M4x12mm SPLIT WASHER 4x1.0 FLAT WASHER M5x12mm SCREW 1. Attach the TV to the bracket with the four M4 SCREWS (6), SPLIT WASHERS (7) and FLAT WASHERS (8).
- Page 10 NOTES Spirit Fitness...
- Page 11 NOTES www.spiritfitness.com...
- Page 12 800.258.4555 Spirit Fitness spiritservice@spiritfitness.com 3000 Nestle Road www.spiritfitness.com Jonesboro, AR 72401 CT900 TV Bracket Installation Guide © 2018 All Rights Reserved Revision: 02.28.2018...
