Summary of Contents for Mti WIRELESS EDGE MT-386004/N
-
Page 1: Installation Instructions

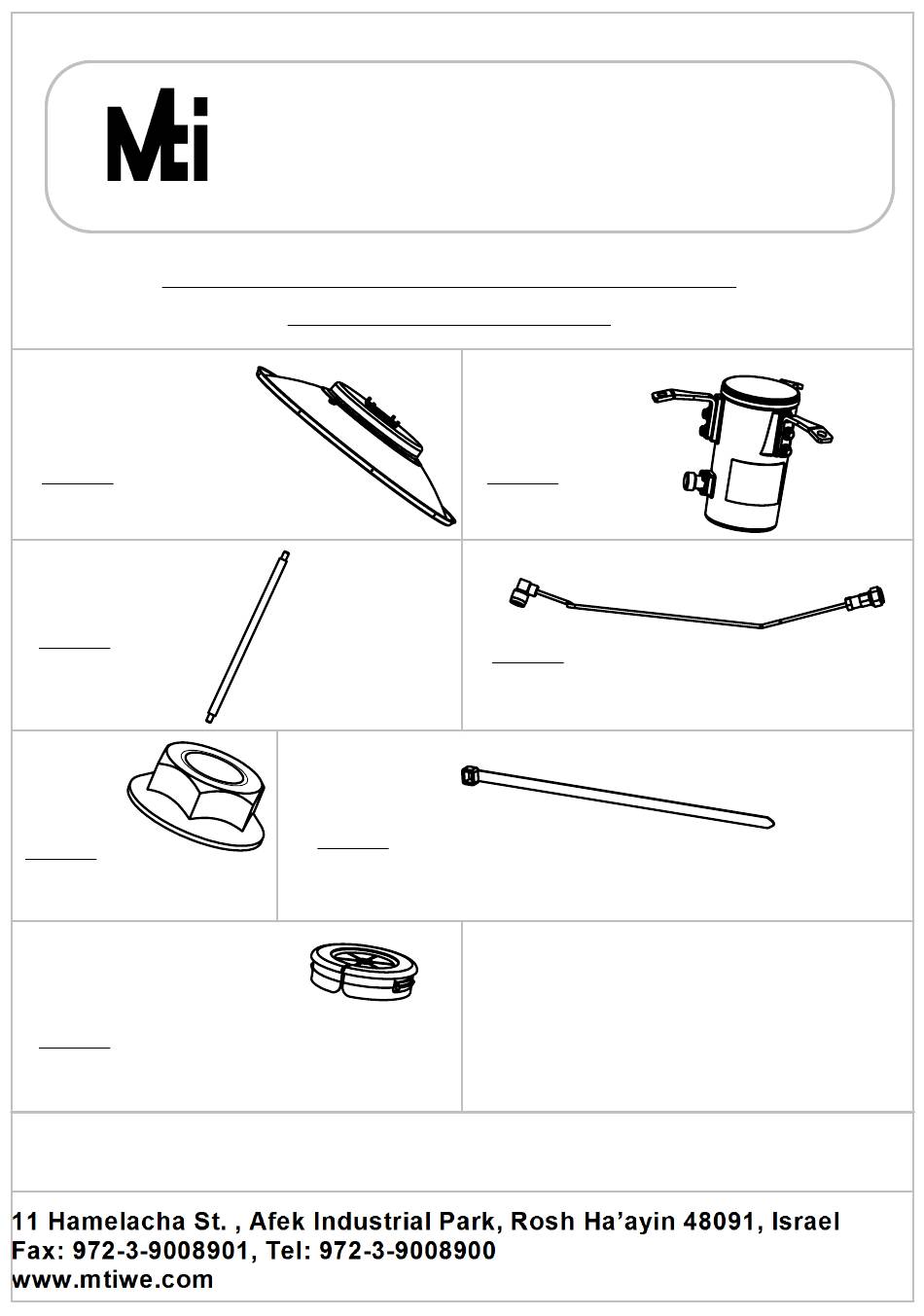

RD43345100C/A WIRELESS EDGE INSTALLATION INSTRUCTIONS FOR MT-386004/N Item 2 Item 1 Antenna Feed Antenna Dish Qty. x1 Qty. x1 Item 3 Item 4 Strut Cable Qty. x3 Qty. x1 Item 6 Item 5 Cable tie Nut 5/16" Self Locking Qty. x2 Qty. - Page 2 RD43345100C/A Step 1 Screw Struts items (3) to the Antenna Dish item (1) Tighten by firm hand force. Connector Arrow Step 2 Attach Antenna Feed item (2) to the Struts items (3). Assemble Feed connector indicates to Arrow note direction labeled on Dish, using items (5) as shown.Use tightening torque force of 71kg-cm.
- Page 3 RD43345100C/A Step 4 Insert the Cable's Right Angle connector item (4) through the hole in the Dish, towards the Horn. Using 20mm open wrench, connect the Right Angle connector to the Connector on the Feed. Attach cable with Cable Ties items (6) to strut nearby. Assemble Cable Grommet item (7) on the cable (insertion from the dish concaved side) and place it and the other Grommet firmly in the Dish holes.
