Quik Shade Go Hybrid User Manual

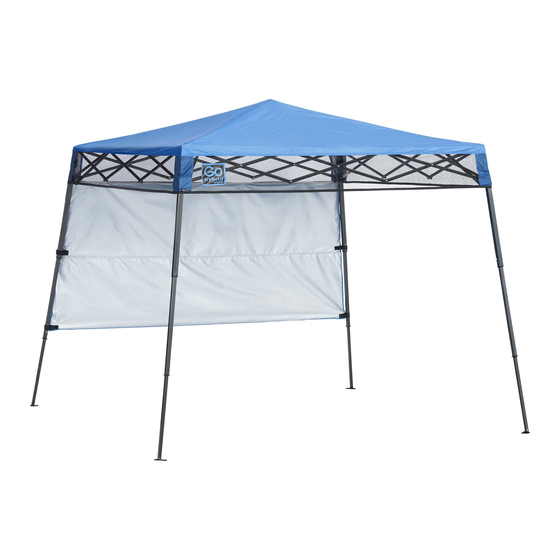

Hybrid Backpack Canopy 6' x 6'
How to set up your canopy:
Remove the canopy from the backpack and stand it up so the feet are
on the ground (figure A).
Pull opposite corners away from each other to expand canopy
(figure B & C).
Slide brackets in all four corners up, until the pull-pins snap in place
(figure D & E).
Drape the canopy top over the frame and attach hook and loop
fasteners on canopy top to those on frame (figure F & G).
Extend canopy legs to desired height (figure H).
Wrap half-wall straps around legs below push-pins to keep wall taught
(figure I).
How to take down your canopy:
Release and push in all canopy legs to their lowest positions (figure J).
Detach canopy top from frame and fold it neatly, so it will easily fit into
backpack. Do not place in bag yet (figure K).
Use the pull-pins at the corners to release corner brackets and loosen eave tension
(figure L).
With all pull-pins released, pick up and walk one corner of canopy towards the
opposite corner (figure M).
Fully compress frame so it will fit easily into the bag.
Slide canopy frame back into canopy backpack, add in the canopy top and
(figure N).
