Summary of Contents for STARKE ARVID Lift 8

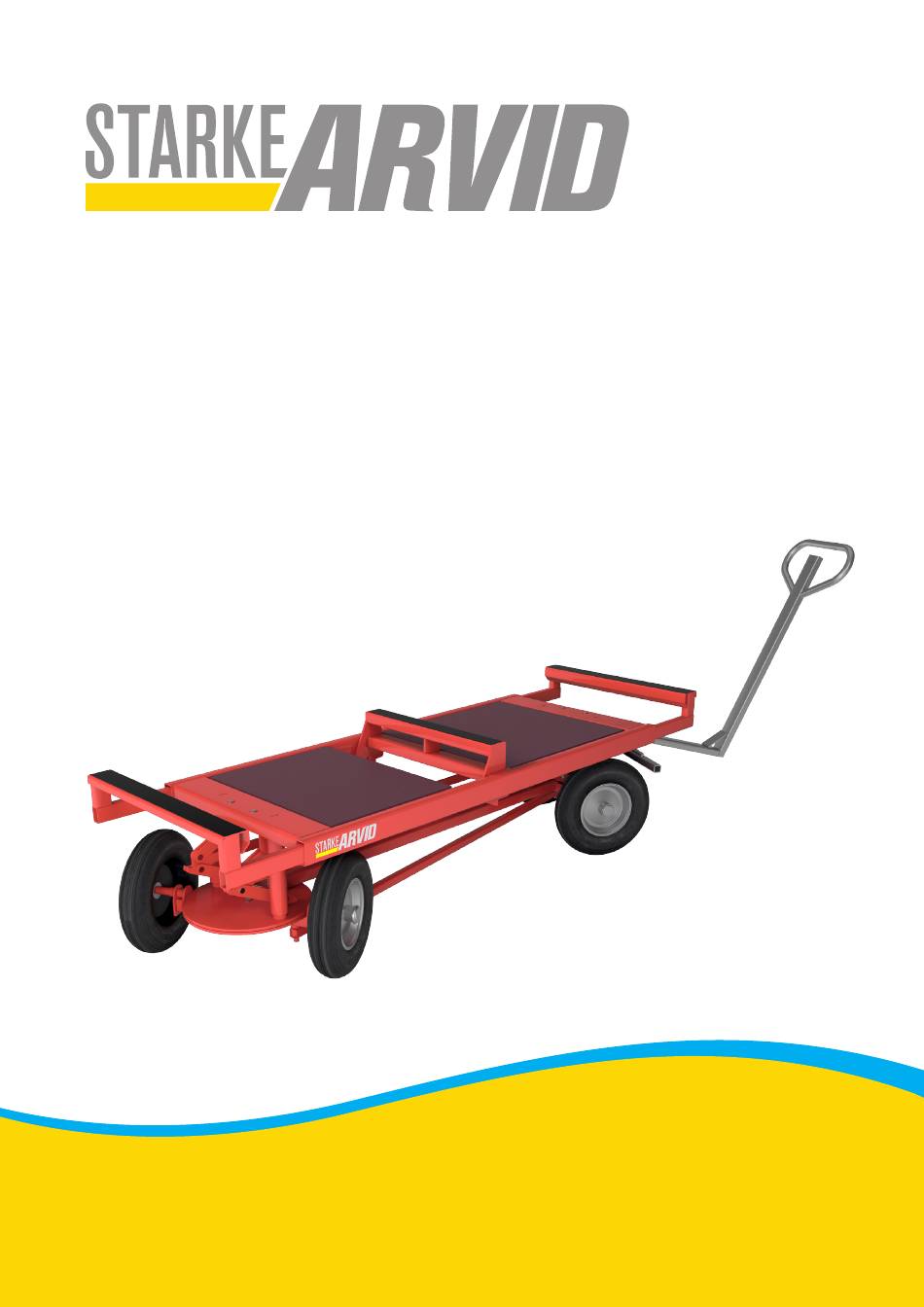

- Page 1 Version 1 03/06/2015 Instructions for use Lift 8 lift truck...
- Page 2 Thank you for choosing a STARKE ARVID® product. We have more than 25 years of experience in the construction industry. We develop, manufacture and sell equipment for material handling aimed at professionals. Starke Arvid's total product range features around 20 products.
- Page 3 Flip-up centre batten Pull-out batten Pull-out batten Brake Vertical and Four-wheel steering horizontal tie rods When using a hoist or crane, place the forks or strops directly under the platform frame to avoid damage to the tie rod. To avoid getting air in the hydraulic system, lift the truck when it is in its maximum raised position. Pump setting The hydraulic pump has adjustable sensitivity that allows the speed at which it begins to work to be set.
- Page 4 Installing the handle Lift the batten Run the chain through Install the handle with the nuts, washers and bolts supplied (3 pcs) Pump up the platform Thread the chain over the tension pin and down through the hole. It is difficult to thread the chain through the hole, but this is normal.
- Page 5 4 pcs 4.00x8” 8 ply Service/Spare parts: Our network of dealers serves as basic assurance for STARKE ARVID® products. If you have any questions regarding servicing or spare parts, contact your dealer or Starke Arvid AB direct. Guarantee: Subject to compliance with these instructions, we provide a one-year warranty as per NL 01.
