NGS-EEC Systems
LESSON 5

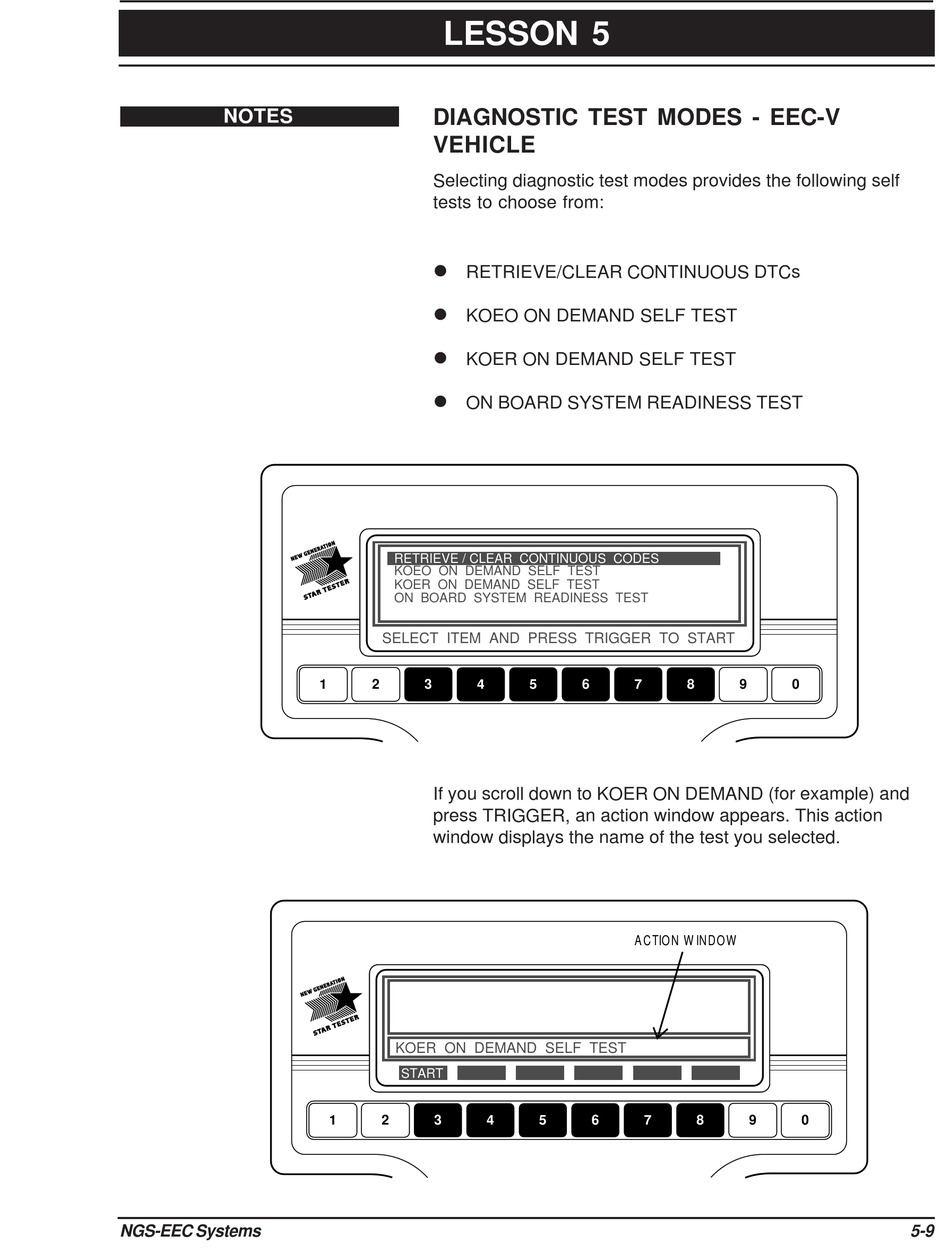

DIAGNOSTIC TEST MODES - EEC-V
VEHICLE
Selecting diagnostic test modes provides the following self
tests to choose from:
l
RETRIEVE/CLEAR CONTINUOUS DTCs
l
KOEO ON DEMAND SELF TEST
l
KOER ON DEMAND SELF TEST
l
ON BOARD SYSTEM READINESS TEST
RETRIEVE / CLEAR CONTINUOUS CODES
KOEO ON DEMAND SELF TEST
KOER ON DEMAND SELF TEST
ON BOARD SYSTEM READINESS TEST
SELECT ITEM AND PRESS TRIGGER TO START
1 2 3 4
If you scroll down to KOER ON DEMAND (for example) and
press TRIGGER, an action window appears. This action
window displays the name of the test you selected.
KOER ON DEMAND SELF TEST
START
1 2 3 4
5 6 7 8
ACTION WINDOW
5 6 7 8
9 0
6630 5-20
9 0
6630 5-21
5-9
