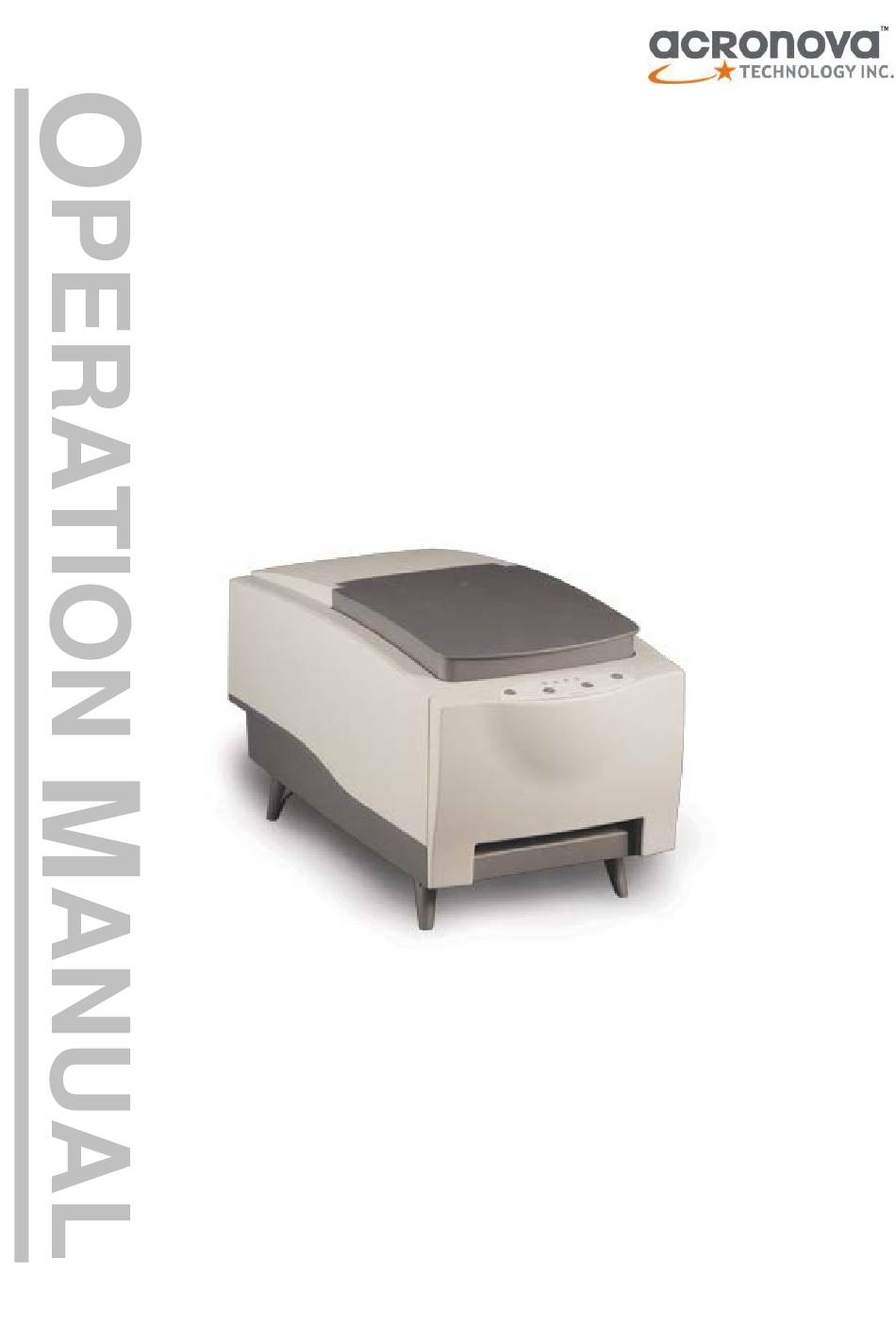

- Page 1 Operation Manual Nimbie Automated Disc Duplicator Model #: NB12 Series (Standalone) Serial Number: ______________________________ (The serial number is labeled on the rear panel of the device.)
-
Page 2: Preface
© 2011, Acronova Technology Inc. All rights reserved. Notices: Reproduction, adaptation, or translation without prior written permission is prohibited. Trademarks: Acronova, Nimbie, GetTray, Xymba, DupliQ, and Apus are the trademarks of Acronova Technology Inc. All other products, © 2011, Acronova Technology, Inc. - Page 3 Acronova Technology Inc. makes no warranty of any kind with respect to this information. Acronova Technology Inc. guarantees this device for a period of one year from the date of delivery, free from defects in material and workmanship.
- Page 4 In no event will Acronova Technology Inc. be liable for direct, indirect, special, incidental, tort, economic, contingent or consequential damages resulting from any defect in this product or its documentation, including, without, limitation, damages or costs relating to the loss of data, profits, business or goodwill, even if Acronova Technology Inc.,...
-
Page 5: Table Of Contents
Verify a Stack of Discs ..............21 Appendix Nimbie Maintenance ..............23 Choosing Reliable Blank Discs........... 23 Disc Separation................23 The Quality of the Master Disc Counts ........24 Writing Speed................24 Frequently Asked Questions © 2011, Acronova Technology, Inc. -
Page 6: Specifications
Dimensions: 7-3/4" x 8-1/2" x 15-3/8"; 19.5 x 21.3 x 39 cm Weight: 2.7 kg; 6 lbs (varies upon configuration) Power: 100 to 240VAC; 50 or 60 Hz *Specifications are subject to change without notice. © 2011, Acronova Technology, Inc. -
Page 7: Unpacking Your Nimbie
Once you have removed all the parts included with your package, please check to see if any pieces are missing or damaged. If any part is missing or damaged, contact your local dealer immediately. © 2011, Acronova Technology, Inc. - Page 8 One Nimbie NB12 Automated Disc Duplicator One power cord One power adapter One spindle box (serves as the Finish Disc Bin) Three Extension Rods (attached to the underside of Nimbie's lid) One Alignment Pad Four Legs One operation manual © 2011, Acronova Technology, Inc.
-
Page 9: Getting Familiar With Nimbie
Lid (Blank Disc Storage) Open the lid to access the blank disc storage area. Control Panel Located on the top front of Nimbie, the control panel © 2011, Acronova Technology, Inc. -
Page 10: Rear View
Kensington Security Slot Security lock anti-theft system. Control Panel There are operation buttons and LED indicators on Nimbie’s control panel as illustrated to the right. High-Speed Duplication Press to start the duplication process at the highest possible © 2011, Acronova Technology, Inc. -
Page 11: Led Indicators
Ready Mode High-Speed Duplication Norm-Speed Duplication High-Speed Duplication with Disc Verification Norm-Speed Duplication with Disc Verification Disc Verification / Simulation Erasing rewritable disc Error Encountered Function Key Enabled : Lit : Off : Flash : Running © 2011, Acronova Technology, Inc. - Page 12 Operation Manual, Nimbie NB12 Version 1.3 (This page is intentionally left blank.) © 2011, Acronova Technology, Inc.
-
Page 13: Device Installation
Place Nimbie on level surface so that it stands firmly on its legs. Place the spindle box that came with the unit in front of Nimbie. Use the alignment pad to appropriately position the spindle box © 2011, Acronova Technology, Inc. - Page 14 Finish Disc Slot. Use the power cord that came with the unit to connect Nimbie to a wall outlet with a reliable power supply. You have now successfully completed the installation of Nimbie device. © 2011, Acronova Technology, Inc.
-
Page 15: Before Getting Started
Rejected Discs Nimbie is designed to have Rejected Discs come out underneath the unit. Do not block the Reject Disc Slot. Periodically remove rejected discs so that there is room to accommodate more discs © 2011, Acronova Technology, Inc. -
Page 16: More Than 30 Discs In One Session
To remove the extension rods from the disc loader, turn the rods clockwise and pull them upward vertically. When not using the rods, return them to their original position on the lid’s underside. Automated Multiple-Master-Disc Duplication © 2011, Acronova Technology, Inc. -
Page 17: Write Speed: Production Rate Vs. Duplication Quality
However, due to the limitation of industry standards, for audio disc verification it will only perform the reading check, and not the comparison process. © 2011, Acronova Technology, Inc. -
Page 18: Handling Disc Write Failures
Although it is fine to leave the power cord plugged in, it is recommended that you unplug the cord for increased safety when Nimbie is not used for extended periods of time. © 2011, Acronova Technology, Inc. -
Page 19: Operation Quick Guide
Important: To verify your written data, press the Function Key which will light up its LED and then press the High or Norm-Speed Duplication button to start. © 2011, Acronova Technology, Inc. -
Page 20: Duplication Simulation
Press the Test/Abort button to start. Nimbie will run the operation until the disc loader is empty. Important: Duplication simulation will not work with DVD+R, DVD+RW and DVD+R DL discs. When a DVD+ disc is detected it will be rejected. © 2011, Acronova Technology, Inc. -
Page 21: Erase A Stack Of Rewritable Discs
Follow the steps below to start the verification process: Load the master disc and the discs you would like to verify. Press the Function Key which will light up its LED. Press the Test/Abort button to start. © 2011, Acronova Technology, Inc. - Page 22 Operation Manual, Nimbie NB12 Version 1.3 (This page is intentionally left blank.) © 2011, Acronova Technology, Inc.
-
Page 23: Appendix
Avoid these types of discs. Nimbie is equipped with a patent pending disc separator, which handles discs that adhere to each other better than traditional autoloaders. However, it is strongly recommended that you separate or loosen blank discs from each other before use. © 2011, Acronova Technology, Inc. -
Page 24: The Quality Of The Master Disc Counts
Insufficient power supply may decrease output rate or increase failure rate. As a general rule, a lower writing speed will improve quality. When creating audio and video discs a lower writing speed is recommended to assure quality. © 2011, Acronova Technology, Inc. -
Page 25: Frequently Asked Questions
Turn the power switch to the Off position and back to the On position after waiting 30 seconds. If this does not solve the problem, please contact your dealer or authorized service center. Nimbie is showing an error on the LED display. What should I © 2011, Acronova Technology, Inc. - Page 26 Next press and hold the TEST button until the LED display changes again. Please record the new LED message. Please provide this information to the dealer along with the Nimbie serial number located on the bottom of the unit. © 2011, Acronova Technology, Inc.
- Page 27 Version 1.3 Operation Manual, Nimbie NB12 (This page is intentionally left blank.) © 2011, Acronova Technology, Inc.
- Page 28 Operation Manual, Nimbie NB12 Version 1.3 Acronova Technology, Inc. http://www.acronova.com Manual Ver.: 1.3, July 2011 Part #: 711-NT12-9AC6-3 © 2011, Acronova Technology, Inc.
