COLUMN
(1)
ARMS
STEP TWO
Connect Antenna Arms
to the upright pieces
with locking pin
PIN W/ LANYARD
HINGE
UPRIGHT
If you have any questions about assembly or any Atomic products please call 717-626-4408
ANTENNAE CHANDELIER
EYE BOLT - PICK POINT
& CENTER BOLT
(8)
STEP THREE
Connect Antenna Arms
to center column.
ARM
8
3
www.atomicrental.tv

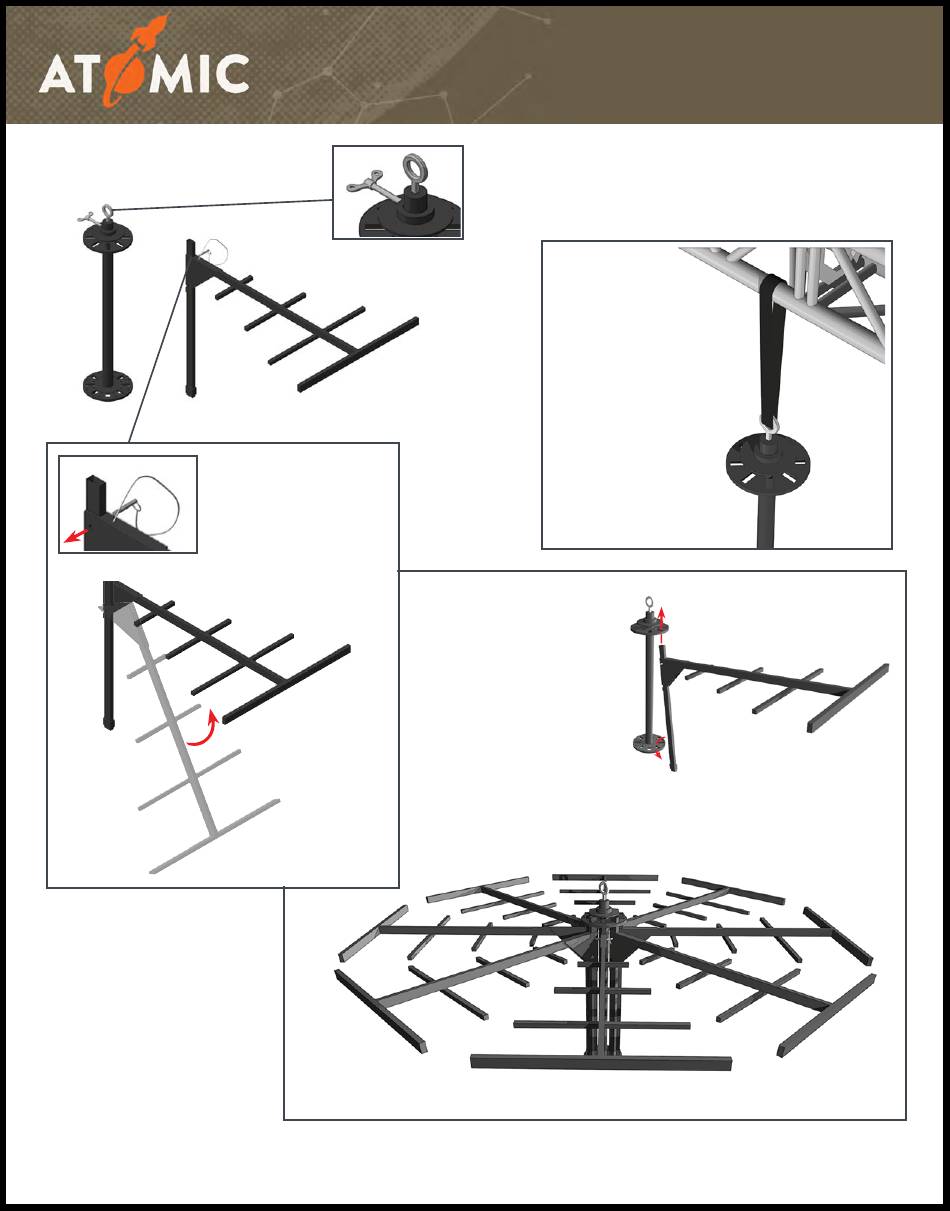

INSTALLATION INSTRUCTIONS
Dimensions:
ASSEMBLED CHANDELIER W/ FABRIC -
8'-1"DIAM X 8'-6"H
STEP ONE
Hang column from
center pick point
ASSEMBLE IN ORDER SHOWN BELOW:
6
2
5
1
2
4
7
1
Page 1 o f 2
Advertisement
Table of Contents
Summary of Contents for Atomic ANTENNAE CHANDELIER
- Page 1 PIN W/ LANYARD STEP THREE HINGE Connect Antenna Arms to center column. UPRIGHT ASSEMBLE IN ORDER SHOWN BELOW: If you have any questions about assembly or any Atomic products please call 717-626-4408 www.atomicrental.tv Page 1 o f 2...
- Page 2 Attach fabric panels to Antenna Arms. The supplied bag with fabric contains correct quantity and widths. STEP SIX Hang at trim height and soak with light. If you have any questions about assembly or any Atomic products please call 717-626-4408 www.atomicrental.tv Page 1 o f 2...
