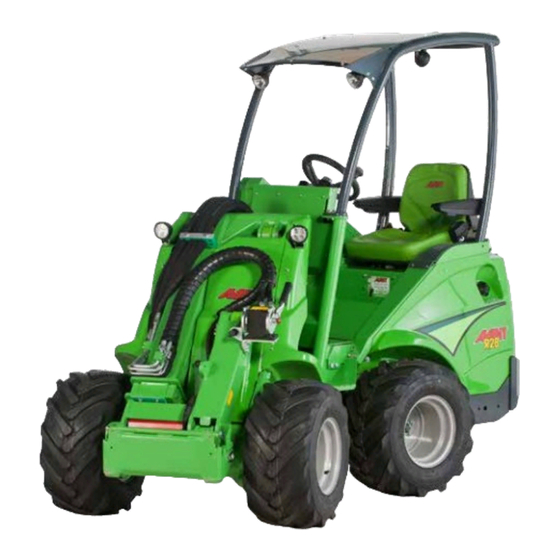

- Page 1 English Operator’s Manual 2013-...
-
Page 2: Table Of Contents
Table of contents TABLE OF CONTENTS Table of contents ..........2 Requirements for attachments......23 Coupling the attachments......23 Introduction, warranty ........3 Hydraulic attachment coupling plate ....23 Safety instructions ........... 4 Coupling the hydraulic hoses of the attachment ..24 Description of the loader........7 Service and maintenance instructions ...25 Main parts of the loader........8 Safety instructions for maintenance ....26... -
Page 3: Introduction, Warranty
Introduction, warranty Introduction AVANT TECNO OY wants to thank you for purchasing this AVANT loader. It is the result of Avant’s long experience in design and manufacturing of compact loaders. We ask you that you read and understand the contects of this manual completely before operating the loader. -
Page 4: Safety Instructions
If these this purpose: Avant Leguan 50, following the instructions are not followed, the instructions in the Operators Manual of Leguan 50. consequence can be breakdown of the 10. - Page 5 Safety instructions Handling of heavy loads Never take a heavy load on the loader from high level – e.g. from truck, shelf etc. – risk of tipping over! Always put the load down on the ground before leaving the machine. When loading, always keep the loader chassis as straight as possible.
- Page 6 Safety instructions...
-
Page 7: Description Of The Loader
Description of the loader Description of the loader Identification of the loader Write down the identification information of your loader in the following fields, it facilitates ordering of spare parts etc. 1. Loader model_____________________________________________ 2. Loader serial no.___________________________________________ 3. Engine serial no.___________________________________________ Serial number of the loader is printed on the type plate (see page 9), which also indicates the loader model. -
Page 8: Main Parts Of The Loader
Description of the loader Main parts of the loader Following picture shows the main parts of the loader: Hydraulic connectors Multi connector Pressure 2 Tank line Pressure 1 Attachment coupling plate Front frame Attachments are mounted on the On the front frame are mounted: parking brake, attachment coupling plate. -
Page 9: Signs And Decals
Signs and decals Make sure that the following signs and decals clean, undamaged and readable. If any of these decals is missing or is unreadable it should be replaced without delay. Ask for new decals from your local Avant dealer. A411047 A43600 Sound power level / Sound pressure level at driver’s seat... -
Page 10: Technical Specification
Description of the loader Technical specification Model AVANT R35 Model AVANT R35 Engine make & type Kubota V1505 Length 2567 mm Width 1293 mm Function 4 stroke (with 26x12.00-12 wheels) Height 2158 mm Cooling system water Number of cylinders Ground clearance... - Page 11 Description of the loader 26x12.00-12 26x12.00-12 1200 1200 1293 2567...
-
Page 12: Load Diagram
Tie down points are located on the rear frame on the Contact Avant service for instructions if necessary. sides, and on the front frame close to the boom. The loader can be lifted by mounting appropriate If absolutely necessary, the loader can be towed with lifting slings on the ROPS frame. -
Page 13: Operating Instructions
Operating instructions Operating instructions... -
Page 14: Controls
Operating instructions Operating controls Following picture shows the location of operating controls. The location and function of controls may be slightly different in different models, see following pages. 1. Steering wheel 13. Switches on the panel 2. Drive pedal, left: drive backward (page 16) 3. -
Page 15: Control Of Loader Boom, Auxiliary Hydraulics And Other Functions
Operating instructions Control of loader boom, auxiliary hydraulics and other functions Most of the functions of the loader are controlled at the control panel on the right side of the operator: Boom and bucket movements, auxiliary hydraulics (attachments), engine revs etc. , depending on loader model. Following pictures show the different functions: Attachment control switch pack (option) -
Page 16: Dashboard
Operating instructions Dashboard On the dashoard on the right side of the driver’s seat are mounted gauges, indicators and switches which help the operator to control the loader. Dashboard may be slightly different in different models. Following picture shows the different functions: 1. -
Page 17: Suspension Seat
Operating instructions Suspension seat Telescopic boom The suspension seat is equipped with a seat belt and Telescopic boom is has the following adjustments: operated with the control lever no. 8 on the control 1. Suspension adjustment panel (see page 14) or with •... -
Page 18: Joystick
Make sure that the weight on the trailer is This optional equipment distributed correctly so that the trailer cannot enables road traffic registration cause an upward lifting force on the trailer in certain countries. coupling Requirements vary in different countries, please consult your local AVANT distributor. -
Page 19: Tilt Adapter
Operating instructions Tilt adapter (option) Snow chains (option) The hydraulic tilt adapter The loader can be equipped with snow chains, following mounts between the tyre size: attachment and the 23x10.50-12 snow chain part no. 64745 attachment coupling plate. It 26 x 12.00-12 snow chain part no. 64973 allows the driver to tilt the 27x8.50-15 snow chain part no. -
Page 20: Starting The Engine
Operating instructions Starting the engine Before starting the engine do the daily checks, see page 27. Adjust the seat and mirrors (if fitted) so that you have a good working position and unrestricted field of vision from the driver’s seat. Check that all controls function correctly. -
Page 21: Drive Control
Operating instructions Drive control AVANT R35 loader is equipped with a hydrostatic drive system, there is a variable displacement hydraulic pump in the drive circuit. The oil flow of this drive pump is steplessly adjusted with the two drive pedals. The drive pedals act in a proportional way to control the drive speed and power available at the drive motors. -
Page 22: Steering Of The Machine
Operating instructions Steering of the machine Loader control Steering of the machine happens with the steering The loader boom and bucket are controlled with the wheel. The steering wheel is hydraulically powered. multi-function lever sideways (tilt) and back & forward A practical way of steering is to steer with your left (boom up &... -
Page 23: Requirements For Attachments
• Read Operators Manual of the attachment before starting operation. Make sure that the attachment is compatible with the loader. Contact your Avant dealer if necessary • Make sure that the attachment is connected properly on the attachment coupling plate, and that it is being used in accordance with the instructions in the Operators Manual. -
Page 24: Coupling The Hydraulic Hoses Of The Attachment
Operating instructions Coupling the hydraulic hoses of the attachment Coupling the multi connector Align the pins of the attachment connector with correspondig holes of the loader connector. Connecting is not possible if the multi connector for some reason is mounted in a wrong way on the attachment hoses. -
Page 25: Service And Maintenance Instructions
Operating instructions Service and maintenance instructions Service parts are available through your Avant dealer or authorized service. If you are not sure about how to do any service operation, ask for additional information before starting servicing. Contact Avant service. -
Page 26: Safety Instructions For Maintenance
Take If you find a fault, the hose or the component must waste oil and fluids to recycling be replaced. Contact your Avant dealer or service for station. spare parts. Never handle pressurized hydraulic components, because ejection of high pressure hydraulic fluid can cause serious injuries. -
Page 27: Daily Inspections
Service and maintenance instructions Daily inspections • Tyre pressure • Locking of attachment and locking pins on • Boom movements attachment coupling plate, function of attachment, • Drive control and steering position of attachment hoses • Eventual need for lubrication •... -
Page 28: Cleaning Of The Machine
Service and maintenance instructions 2. Cleaning of the machine 6.Changing of hydraulic oil filters Cleanliness of the loader is not only a question of The hydraulic oil return filter outer appearance. All surfaces, painted and others, is located on top of the will stay in better condition when they are cleaned hydraulic oil tank, under the regularly. -
Page 29: Adjust Pressure Of Hydraulic System
It is recommended that pressures should only be checked and adjusted by a competent and Slide pads nos. 1 and 2 experienced technician. Call your AVANT dealer can be adjusted by mounting if you need assistance. thin adjustment sheets between the boom and the 10. -
Page 30: Service, Engine
Service and maintenance instructions 14.-25. Service, engine Jump start and auxiliary power AVANT R35 is equipped with a Kubota diesel engine The engine can be started with auxiliary power if (see technical specification sheet for the engine type necessary, by using appropriate (strong enough) jump of each model). -
Page 31: Greasing Points
In case the ROPS safety frame or the FOPS canopy of the machine gets damaged, the machine must be taken to Avant service for checking. It is not allowed to repair the ROPS and FOPS. -
Page 32: Filters
Service and maintenance instructions FILTERS Following pictures and tables show the location and part numbers for the filters. AVANT R35 filters Filter kit A410961 includes: 1. Air filter 64956 Air filter 2. Fuel filter 64626 Fuel filter 3. Fuel filter, pre filter 64657 Fuel filter, pre filter 4. -
Page 33: Troubleshooting
Hydraulic attachment does not The hoses of the attachment or Check and correct, contact work when the auxiliary the machine multi connector are Avant service if necessary. hydraulics control lever is moved mounted on wrong fittings. Engine does not start. No fuel. -
Page 34: Service History
Services made SERVICES MADE Date Operating hours Remarks 1. _________ __________ ________________________________________________________________ ________________________________________________________________ 2. _________ __________ ________________________________________________________________ ________________________________________________________________ 3. _________ __________ ________________________________________________________________ ________________________________________________________________ 4. _________ __________ ________________________________________________________________ ________________________________________________________________ 5. _________ __________ ________________________________________________________________ ________________________________________________________________ 6. _________ __________ ________________________________________________________________ ________________________________________________________________ 7. _________ __________ ________________________________________________________________ ________________________________________________________________ 8. -
Page 35: Ec Declaration Of Conformity
EC Declaration of conformity EC DECLARATION OF CONFORMITY 1. Manufacturer: Avant Tecno Oy Ylötie 1 FI-33470 YLÖJÄRVI FINLAND 2. We hereby declare that the machines listed below conform to EC Directives, as they are amended: 2006/42/EC (Machinery), 2004/108/EC (EMC) and 2000/14/EC (Noise Emission). - Page 36 FIN-33470 YLÖJÄRVI, FINLAND Tel. +358 3 347 8800 Fax +358 3 348 5511 e-mail: sales@avanttecno.com AVANT has a policy of continuing improvement, and retains the right to change specifications without notice. © 2013 AVANT Tecno Oy. All rights reserved. www.avanttecno.com...
