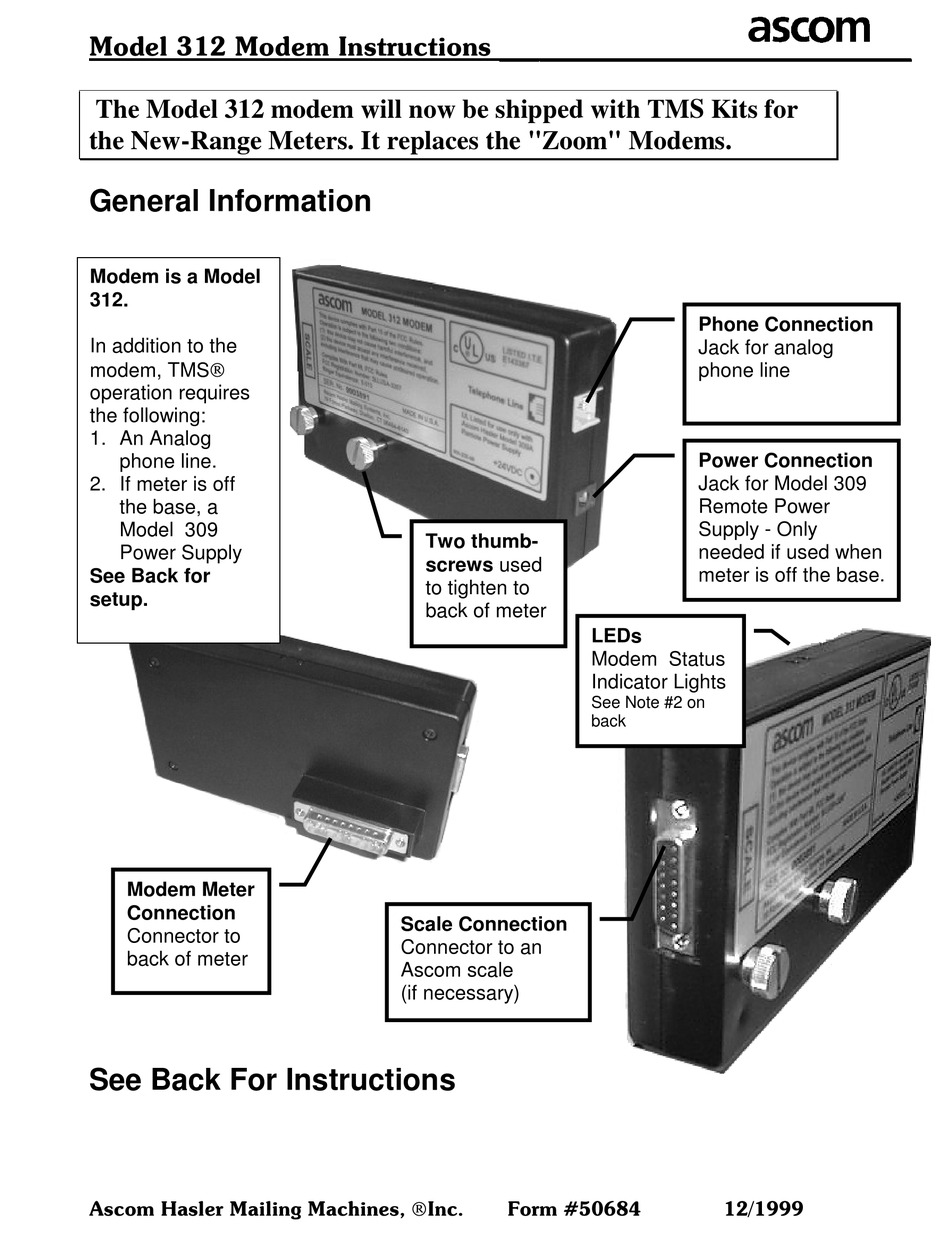

0RGHO 0RGHP ,QVWUXFWLRQV BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
The Model 312 modem will now be shipped with TMS Kits for
the New-Range Meters. It replaces the "Zoom" Modems.
General Information
Modem is a Model
312.
In addition to the
modem, TMS®
operation requires
the following:
1. An Analog
phone line.
2. If meter is off
the base, a
Model 309
Power Supply
See Back for
setup.
Modem Meter
Connection
Connector to
back of meter
See Back For Instructions
$VFRP +DVOHU 0DLOLQJ 0DFKLQHV ®,QF
Two thumb-
screws used
to tighten to
back of meter
Scale Connection
Connector to an
Ascom scale
(if necessary)
)RUP
Phone Connection
Jack for analog
phone line
Power Connection
Jack for Model 309
Remote Power
Supply - Only
needed if used when
meter is off the base.
LEDs
Modem Status
Indicator Lights
See Note #2 on
back
