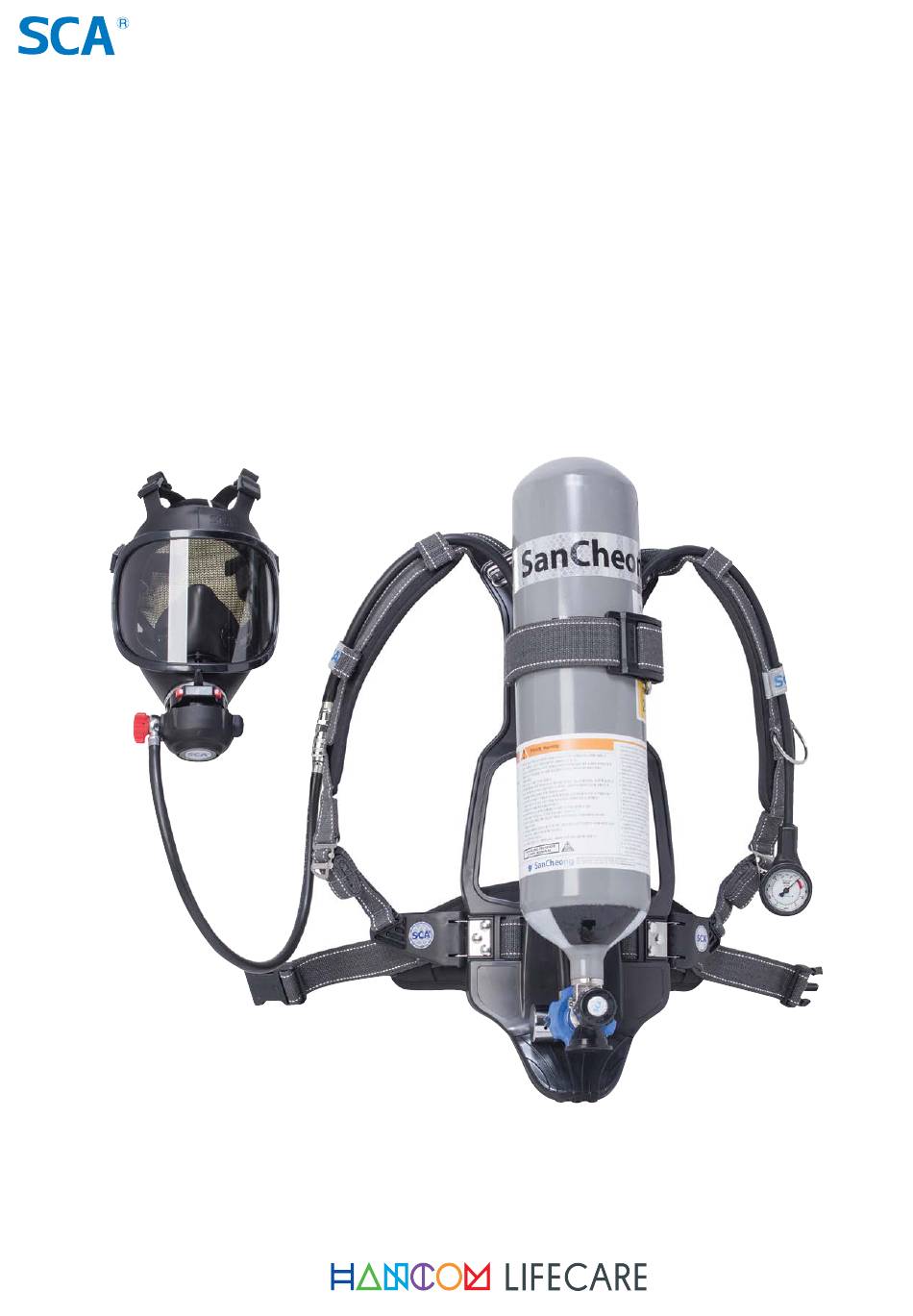

- Page 1 Hancom Lifecare puts safety first. Self-Contained Breathing Apparatus User Manual SCA 820H www.hancomlifecare.com...
- Page 2 Hancom Lifecare dreams of an accident - free society. Thank you for purchasing Hancom Lifecare’s self-contained breathing apparatus ( SCA 820H). Before using the product, please be sure to familiarize yourself with how to use it; the warnings and the cautions described in this User Manual are for the sake of your...
-
Page 3: Table Of Contents
Self-Contained Breathing Apparatus User Manual SCA 820H CONTENTS 1. Warnings and Cautions 2. General Specifications 3. Composition and Characteristics 4. Items to Be Checked before Use Mounting the Cylinder onto the Backframe & Harness Assembly Airtightness Testing Alarm Device Facepiece Demand valve 5. -
Page 4: Warnings And Cautions
Warnings and Cautions ■ Warnings and cautions are indicated by the following signs and meanings: Warning Failure to follow the instructions could result in serious injury or death. Caution Failure to follow the instructions could result in personal injury or physical damage. Warning Before using the self-contained breathing apparatus (SCBA), please be sure to familiar- ize yourself with how to use it and the warnings and the cautions described in this User... - Page 5 Please inspect and replace the filter and oil in the air compressor periodically in order to prevent the addition of any foreign material when filling the high-pressure air cylinder (hereinafter referred to as the “cylinder”) with air. SCA 820H...
-
Page 6: General Specifications
Caution Always wear and use the SCBA in a safe place free of air pollution. If the demand valve fails to operate normally while you are using the SCBA, please open the by-pass valve (emergency value) immediately so that you can breathe and then escape to a safe place. - Page 7 300bar. (The duration of SCBA usage may vary remarkably lot according to the user’s physical condition and working environment.) Warning Cylinder air pressure should not exceed 300bar. (This requirement is applicable at a tem- perature of 35 ℃ .) SCA 820H...
-
Page 8: Composition And Characteristics

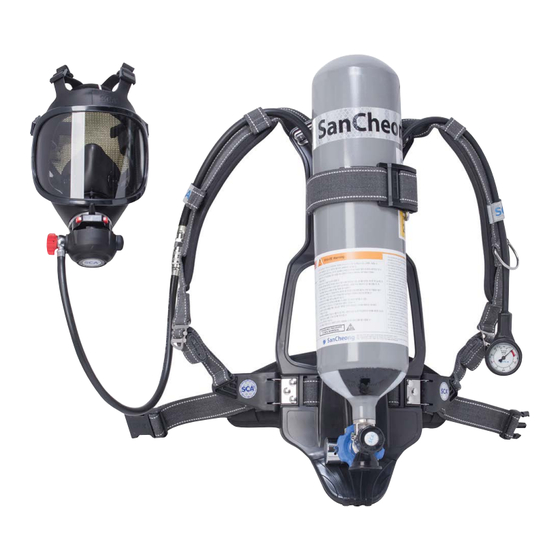

Composition and Features Facepiece strap (head fitness adjustment strap) Visor Demand vavle separation button By-pass valve Demand valve Air blocking button (push button) Waist belt buckle Alarm device Cylinder valve... - Page 9 Cylinder Backframe Shoulder straps Pressure gauge SCA 820H...
- Page 10 Facepiece: Composed of the visor, the demand valve separation button, the air block- ing button (push button), the demand valve, the exhaust valve, the facepiece straps, and the facepiece rubber, the facepiece protects the wearer’s face. With their mesh-like pattern, in particular, the facepiece straps provide excellent wearing comfort and their structure prevents the adjustment strap portions from getting twisted.
- Page 11 Each shoulder strap is equipped with a D-ring so that you can at- tach personal protective equipment such as a lantern or an automatic alarm flasher to it. SCA 820H...
-
Page 12: Items To Be Checked Before Use
Items to Be Checked before Use ■ Mounting the Cylinder onto the Backframe & Harness Assembly • Adjust the cylinder securing band of the backframe and harness assembly so that it is larger than the cylinder. • Place the cylinder inside the securing band while keeping the cylinder valve part facing toward the bottom of the backframe and harness assembly. -
Page 13: Alarm Device
If the alarm device fails to sound when the needle on the pressure gauge indicates about 55bar, the SCBA user won’t know he/she has to escape and thus is likely to face a very dangerous situation. In this case, contact the After-Sales Service Team of our Company for inspection and repair services. SCA 820H... -
Page 14: Facepiece
■ Facepiece • Confirm the correct shape of the facepiece and check it for any damage. • Check the rubber component of the facepiece for any damage. • Check to see whether the visor is properly clean and transparent and whether an anti-fog agent has been applied to it. -
Page 15: Demand Valve
In this case, do not use the equipment and contact the After-Sales Service Team of our Company for inspection and repair services. SCA 820H... -
Page 16: How To Use The Scba
How to Use the SCBA ■ Before Use 1. Check to confirm that the cylinder valve is closed. 2. Check to confirm that the high pressure cylinder is firmly se cured to the backframe and harness assembly. (Refer to the Items to Be Checked before Use.) 3. - Page 17 9. Place the tip of your chin on the end part of the facepiece and then put on the facepiece straps to cover your head. SCA 820H...
- Page 18 10. Secure the facepiece by evenly pulling the head adjustment straps on its right and left sides with both hands, and then finally tighten the head adjustment strap on its top side. Caution 1. If you pull the head adjustment strap located on the top center too strongly in order to secure the facepiece onto your face, a gap may occur at the top of the facepiece, thus preventing it from remaining airtight, and your face may feel severe pressure.
- Page 19 If the facepiece fails to remain airtight while you are wearing it, you are not protected from toxic gas. In this case, never enter any dangerous area where there is toxic gas, and im- mediately contact the After-Sales Service Team of our Company for inspection and repair services. SCA 820H...
- Page 20 ■ After Use 17. After using the SCBA, get out of the toxic gas area completely and then push the air blocking button to block the air supply. 18. Loosen the facepiece straps by pulling them forward and then take off the facepiece starting with your chin.
-
Page 21: Cleaning And Inspection After Use
Using any such material may cause stress-corrosion cracking on the cylinder surface, thus leading to the destruction of the cylinder, and consequently the user may suffer a serious injury or even lose his/her life. SCA 820H... - Page 22 ■ Inspection after Use 1. If the pressure of the compressed air in the cylinder is below 90% of the prescribed value (300bar), please refill the cylinder with new compressed air and then store it. 2. Check the rubber O-ring in the connection nut of the high pressure regulator and the connection of the medium pressure hose to see whether they operate normally and remain airtight.
- Page 23 SCA 820H...
-
Page 24: Storage
Storage - After using the self-contained breathing apparatus (SCBA), be sure to go through the inspection and cleaning process, let it dry sufficiently, and then store it. - Fully close the cylinder valve, the demand valve and the by-pass valve (emergency valve), completely remove the residual pressure from the SCBA, and then store it. - Page 25 13. Be sure to familiarize yourself with the contents of the “Handling Precautions” label attached to the cylinder or inserted in its surface before using it SCA 820H...
-
Page 26: Contents Of The Warranty And Consulting Services For Users
The free-of-charge warranty period is one year from the date of purchase. Warranty Card Product Self-contained breathing apparatus (SCBA) Model SCA 820H Warranty period One year from the date of purchase ( Company Name Address Inspected by... - Page 27 Safety First Hancom Lifecare saves lives and property. Metric Pressure Measurement Units UNIT mbar kbar 1bar 1000 0.001 1mbar 0.001 1kbar 1000 0.01 0.001 1kPa 0.01 1000 0.001 1MPa 1000 0.01 1Pa=1N/m 1kPa=1kN/m 1MPa=1MN/m Pressure Units Cross Reference Chart atms.
- Page 28 SCA 820H Self-Contained Breathing Apparatus #53 Jungbudaero 1960Beon-gil, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, 17160, Korea Tel: +82-31-5183-9000 Fax: +82-31-321-4088 www.hancomlifecare.com...
