CERTIFICATION:
ETL WET

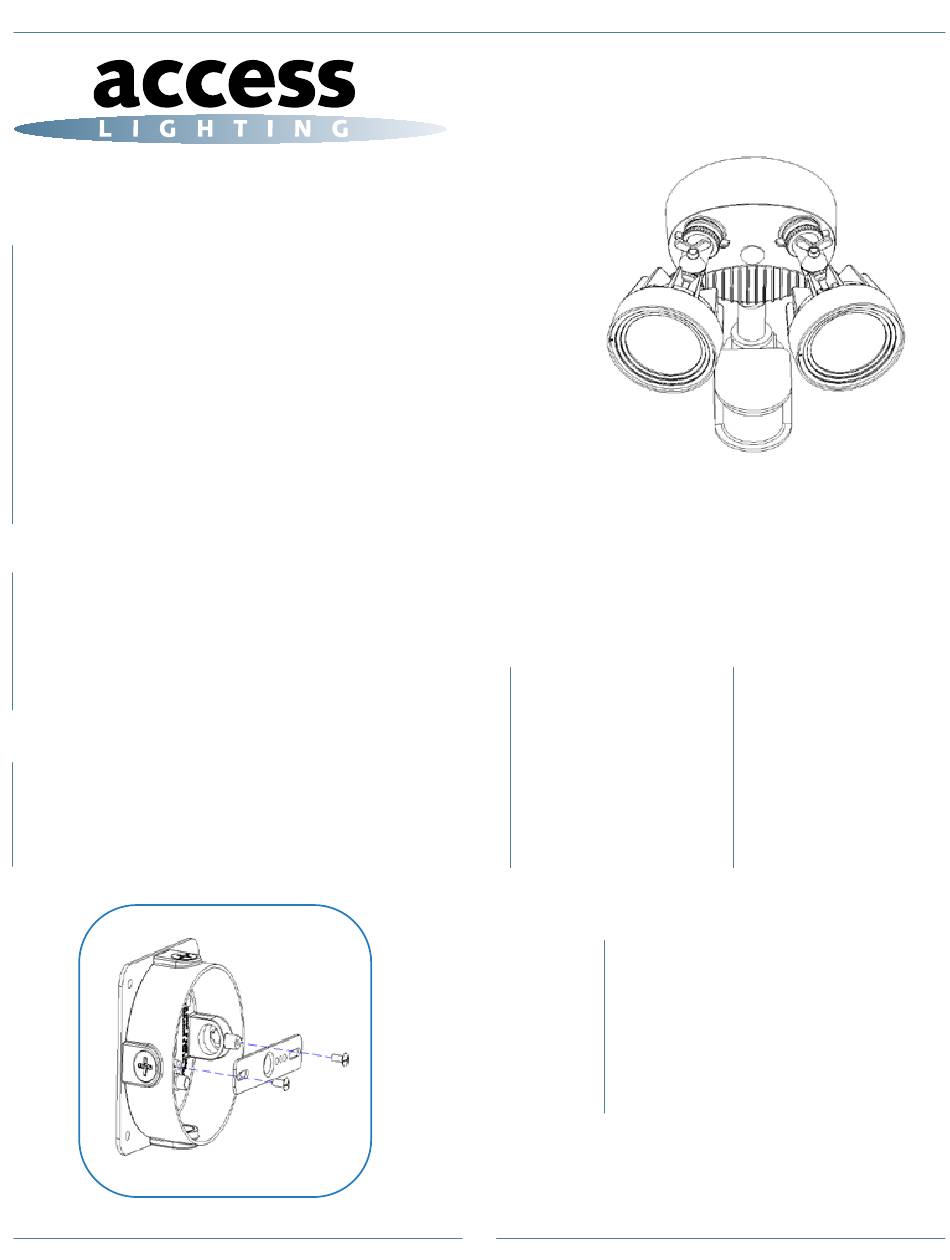

INSTALLATION INSTRUCTIONS
IMPORTANT
Before assembling your access lighting fixture, please make sure that
you carefully read through these instruction sheets. Consider having
your fixture installed by a qualified licensed electrician.
Note: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can't be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and National Electrical Codes. These fixtures are intended for
mounting to a standard 4" x 2 1/2"metal octagon outlet box. The box
must be directly supported by the building structure and U.L. Recognized.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.
COLLECTION
GUARDIAN
WHAT WE PROVIDE
•
Mounting Hardware
•
Crossbar Plate
•
Gasket
•
LED
1
PREPARE FIXTURE AND MOUNT
CROSSBAR PLATE
If there is an existing fixture remove it.
Expose the supply wires from the J-box.
Mount the crossbar plate to the J-box with the supplied
screws.
1
APPLICATION
MODEL NO.
OUTDOOR
WHAT YOU NEED
•
Screwdriver
•
Wire Cutters
•
Wiring Supplies as Specified
by Electrical Code
NO.
20785LED
20785LED
Advertisement
Table of Contents
Summary of Contents for Access Lighting 20785LED
- Page 1 20785LED INSTALLATION INSTRUCTIONS IMPORTANT Before assembling your access lighting fixture, please make sure that you carefully read through these instruction sheets. Consider having your fixture installed by a qualified licensed electrician. NOTE: The important safeguards and instructions that appear in this manual are not meant to cover all possible conditions and situations that may occur.
- Page 2 CERTIFICATION: ETL WET 20785LED MAKE WIRE CONNECTIONS Gently pull the supply wires through the hole in the gasket. Connect the black supply wire to the black fixture wire. Secure with the supplied wire nuts. Connect the white supply wires to the white fixture wire.
- Page 3 CERTIFICATION: ETL WET 20785LED Note: - Lamp heads must be positioned above motion sensor head and controls on motion sensor must face the ground. - Aim lamp heads and install optional visors - Aim lamp heads at least 20º down below horizontal in order to prevent water from accumulating inside lens.
