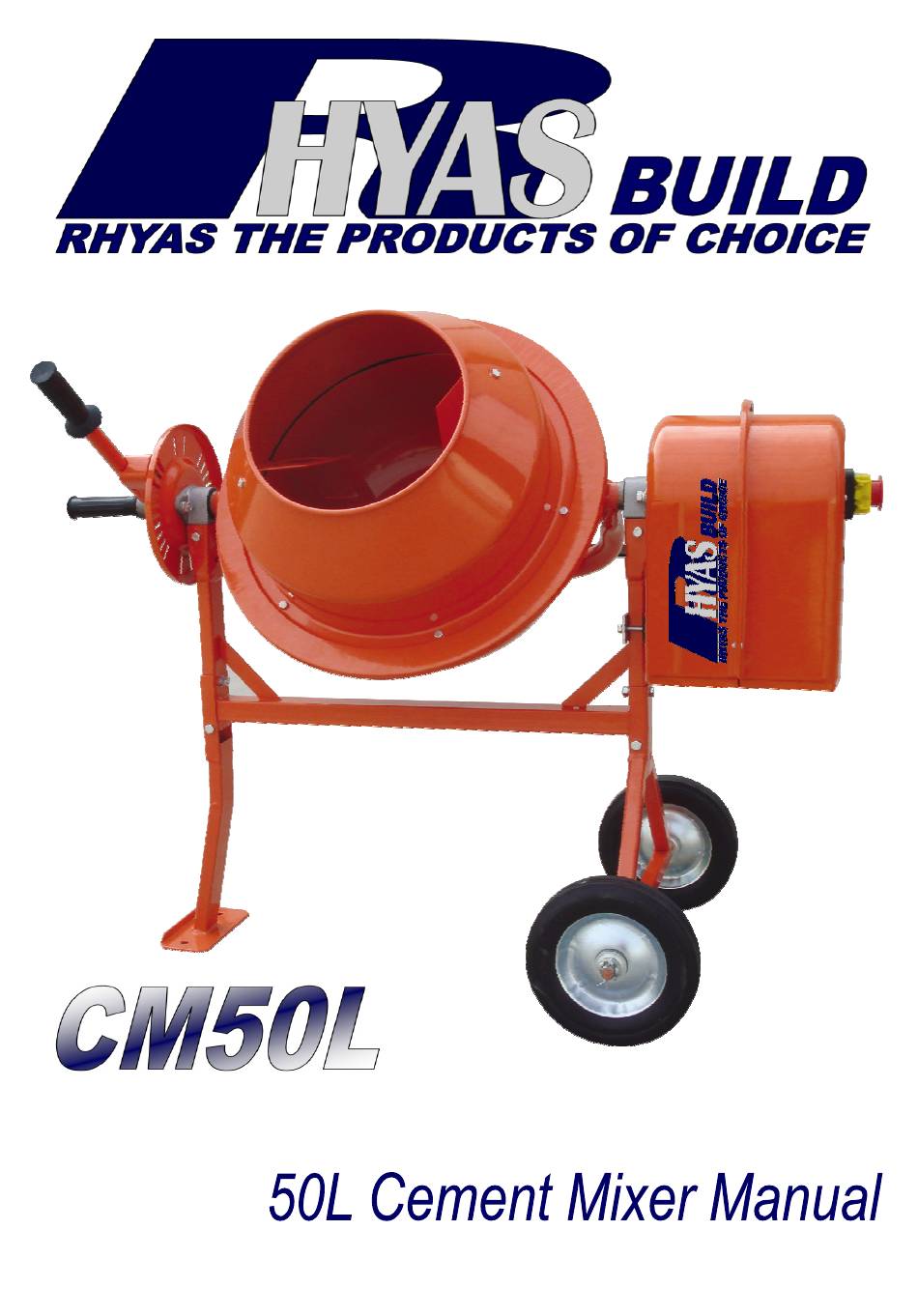

Summary of Contents for Rhyas CM50L
- Page 2 TECHNICAL SPECIFICATION 2. Bolt the bottom Model:- CM50L section of the Voltage:- 230V AC 50HzMax mixing drum to the Motor:- 250 Watts base frame. Drum Speed:- 30 rmp Ensure the small Motor Speed:- 1380 rmp spline is at the Drum Capacity:- 50 Litres wheel end.
- Page 3 5a. Insert the drum pulley on the keyway spline SQUARELY & FIRMLY and lock in place. Check the keyway & pulley hole are clean. 5b. Bolt the motor on to the motor mounting plate. USING THE MIXER 5c. Pass the drive belt over the drum pulley and motor pulley.
- Page 4 Date: May 2011 Rhyas Products, Unit A Southern Ave, Leominster. HR6 0QF UK. Subject to change. Document Ref: CM50L Cement Mixer 53019 Product code: 53019 Copyright: These instructions are the sole property of Rhyas Products and may not be reproduced.
