Summary of Contents for oticon FittingLINK 3.0

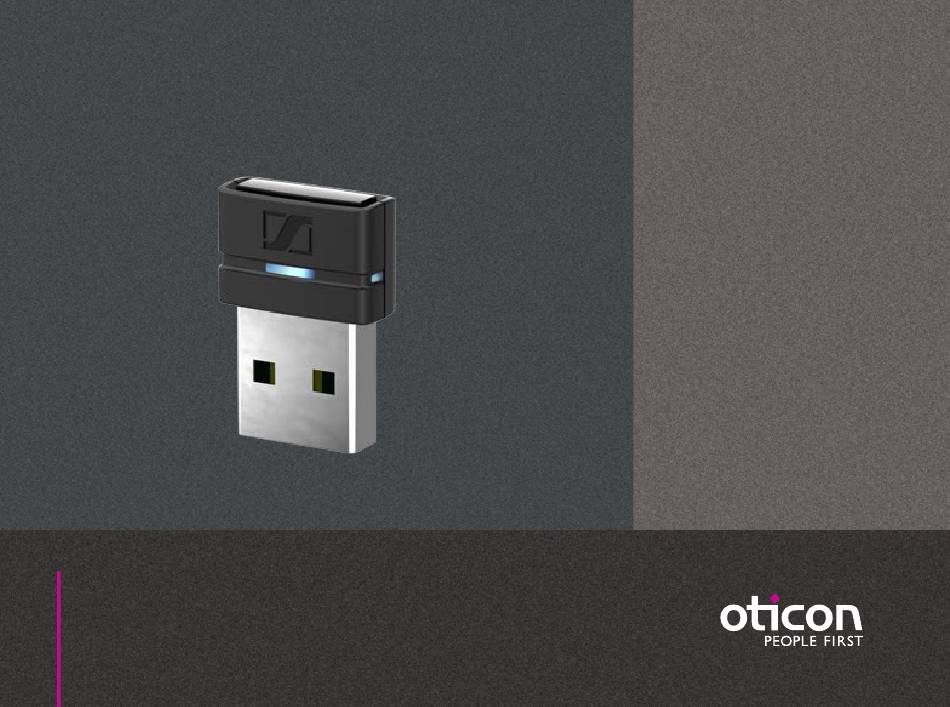

  • Page 1 Wireless Programmer FittingLINK 3.0 Instructions for use...
  • Page 2 Introduction to this booklet This booklet guides you on how to use and maintain your new FittingLINK 3.0. Please read the booklet carefully including the “Warnings” section. This will help you get the most out of your new FittingLINK 3.0.
  • Page 3 FittingLINK 3.0 is intended to be used by hearing care professionals. Compatibility FittingLINK 3.0 is compatible with Oticon hearing aids with 2.4 GHz radio technology.

  • Page 4: Table Of Contents

    Start up Connect FittingLINK 3.0 to a PC FittingLINK 3.0 and your fitting software Daily use How to use FittingLINK 3.0 Pairing FittingLINK 3.0 with 2.4 GHz wireless hearing aids LED indicator Taking care of your FittingLINK 3.0 Troubleshooting Warnings...
  • Page 5 More info International warranty Technical information...

  • Page 6: Package Contents

    Package contents You will find the following items in the package: FittingLINK 3.0 Desk stand Instructions for Use (this booklet) Wireless Programmer FittingLINK 3.0 Instructions for use About Startup Daily use Warnings More info...

  • Page 7: Product Overview

    Product overview FittingLINK 3.0 LED indicator USB 2.0 Cable (2 m) Desk stand...

  • Page 8: Startup

    Before FittingLINK 3.0 can be used as your programming device for wireless hearing aids, Genie 2 must be installed on your PC. FittingLINK 3.0 must then be plugged into your PC in one of two ways: You can choose to plug FittingLINK 3.0 in the desk stand and...
  • Page 9 FittingLINK 3.0 directly into a USB port on the PC [B]. We recommend that you keep FittingLINK 3.0 in the desk stand to ensure optimal performance.
  • Page 10 Let the installation finish before you proceed. The driver installation runs only the first time you turn on your PC or in case you unplug FittingLINK 3.0 and afterwards plug it into a different USB port than the one originally used. About...

  • Page 11: Fittinglink 3.0 And Your Fitting Software

    FittingLINK 3.0 and your fitting software When you have connected FittingLINK 3.0 to your PC and you open Genie 2 for the first time, FittingLINK 3.0 will be detected as a programming device. FittingLINK 3.0 is automatically added as an option on the “Detect”...

  • Page 12: How To Use Fittinglink 3.0

    See the “Pairing FittingLINK 3.0 with 2.4 GHz wireless hearing aids” section. We recommend that you keep FittingLINK 3.0 in the desk stand to ensure optimal performance. Operating range while pairing In order to ensure steady high performance it is necessary to keep the hearing aids within 30 centimetres of FittingLINK 3.0 during...
  • Page 13 Operating range for test box verification When performing coupler-based verification in a hearing aid test box, the distance between FittingLINK 3.0 and the hearing aids should be as short as possible and no more than 0.5 metres.

  • Page 14: Pairing Fittinglink 3.0 With 2.4 Ghz Wireless Hearing Aids

    2. Open Genie 2 3. Attach speakers to the hearing aids Up to 30 cm 4. Insert new batter- 5. Place the hearing aids and FittingLINK 3.0 ies in the battery within range. See the “Operating range while drawer on the pairing”...
  • Page 15 6. Close the battery drawer and 7. Select FittingLINK 3.0 as your wait for the startup jingle. programming device and FittingLINK 3.0 will automati- Now the hearing aids will be in cally detect all 2.4 GHz hearing pairing mode for 3 minutes.
  • Page 16 8. In “Detect Wireless “select the 9. When the fitting is finished relevant hearing aids from the enter “Save and Exit” and click instruments list and click “OK” to save and close the “Connect” to begin the fitting. session. About Startup Daily use Warnings More info...
  • Page 17 IMPORTANT NOTICE Please refer to the hearing aid’s instructions for use for details on the functionality of the specific hearing aid solution.

  • Page 18: Led Indicator

    LED indicator How to read the LED indicator Indication Description FittingLINK 3.0 active FittingLINK 3.0 inactive FittingLINK 3.0 searching for in range FittingLINK WP-2 FittingLINK 3.0 in pairing mode with FittingLINK WP-2 Self test error Steady LED off Slow flash...

  • Page 19: Taking Care Of Your Fittinglink 3.0

    Taking care of your FittingLINK 3.0 FittingLINK 3.0 and its accessories must be kept free of dirt and debris. Use a soft, dry cloth to clean FittingLINK 3.0. We recommend that FittingLINK 3.0 is kept in the desk stand in between fitting sessions.

  • Page 20: Troubleshooting

    Locations where Bluetooth technology is not allowed FittingLINK 3.0 must not be used in locations where Bluetooth technology is not allowed. Please note that FittingLINK 3.0 is only active when the LED indicator is on, i.e. when used by Genie 2.
  • Page 21 • Close Genie 2 and turn off your PC • If FittingLINK 3.0 is plugged into the desk stand, unplug and reinsert the desk stand cable in the PC, and then unplug and reinsert FittingLINK 3.0 in the desk stand •...
  • Page 22 Check for possible sources of interference. See the “Interference” section. Speakers must be attached to the hearing aids before they can be detected by FittingLINK 3.0, since the antenna is placed in the speaker wire. Check that FittingLINK 3.0 and the hearing aids are within range.
  • Page 23 Failed connection to hearing aids when performing a test box verification • Consult Genie 2 “Help files”. FittingLINK 3.0 LED indicator flashes blue Pairing mode with FittingLINK WP-2 has been activated. Simply wait for the signal to stop. For further details see the FittingLINK WP-2 “Instructions for Use”...

  • Page 24: Warnings

    Choking hazards and risk of phones, citizens band devices and swallowing small parts other wireless devices) may occur. • Your FittingLINK 3.0 and its parts If this occurs, increase the distance should be kept out of reach of between FittingLINK 3.0 and the children and anyone who might interfering device.
  • Page 25 Connection to external equipment • The safety of the use of FittingLINK 3.0, when connected directly or via the desk stand to external equipment, is determined by the external equipment. When connected to equipment plugged into a wall outlet, this equipment...
  • Page 26 International warranty Your FittingLINK 3.0 is covered by an national legislation governing sale of international limited warranty issued consumer goods. by the manufacturer for a period of If you need service 12 months from the date of delivery. This limited warranty covers manu- Please contact your supplier’s sup-...
  • Page 27 Technical information Model BTD 800 USB Type FittingLINK 3.0 Version WP-3 Operating conditions Temperature: 5 °C to 40 °C Humidity: 15% to 93%, non-condensing Atmospheric pressure: 700 hPa to 1060 hPa Storage and transportation Temperature: -25 °C to 70 °C...
  • Page 28 FittingLINK 3.0 contains a radio USA and Canada transceiver using Bluetooth Low This device is certified under: Energy (BLE) and a proprietary short FCC ID: DMOCBBSKE range radio technology both working IC: 2099D-BTD800 at 2.4 GHz. The 2.4 GHz radio trans- mitter is weak and always below +8.0...
  • Page 29 responsible for compliance could void interference to radio or television the user’s authority to operate the reception, which can be determined equipment. by turning the equipment off and on, the user is encouraged to try to This Class B digital apparatus complies correct the interference by one or with Canadian ICES-003.
  • Page 30 The manufacturer declares that Declaration of Conformity is available this FittingLINK 3.0 is in compliance from the manufacturer. with the essential requirements and other relevant provisions of Directive SBO Hearing A/S 2014/53/EU. Kongebakken 9 DK-2765 Smørum Denmark www.sbohearing.com Waste from electronic...
  • Page 32 0000164504000001...
