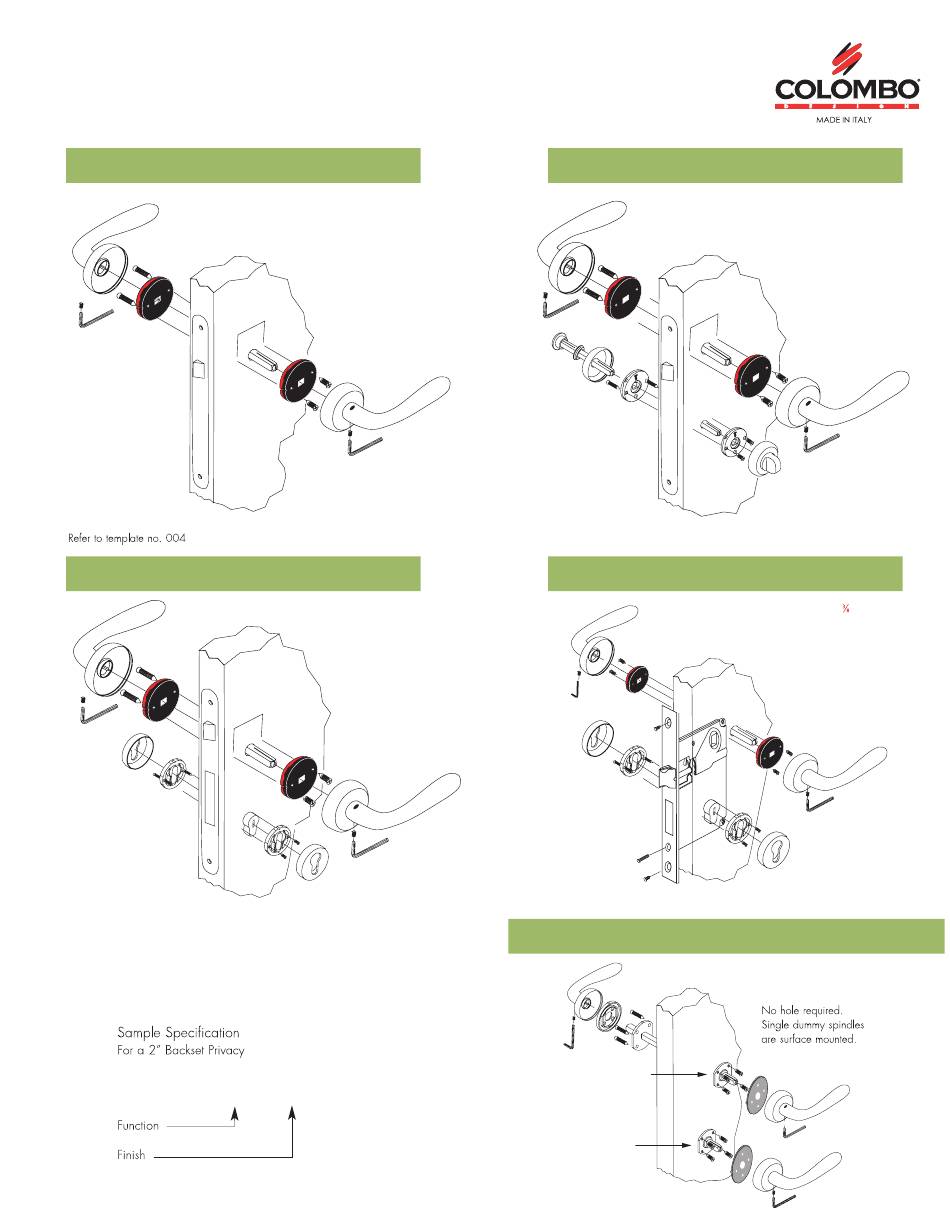

EURO MORTISE MOUNTING
R SERIES
PASSAGE M300 - 2" BS
KEYLOCK M350 - 2" BS
Refer to template no. 006
All levers with square back plates,
include square escutcheon plates for keylock sets
Lever - CB51 R - M340 - Satin Nickel
PRIVACY M340 - 2" BS
Refer to template no. 005
HD KEYLOCK HDM350 - 2" BS
Refer to template no. 006E
DOUBLE DUMMY D190
Refer to template no. 011A
Refer to template no. 011B
HD Mortise also available in 2 " or 2¾" backset
SINGLE DUMMY D185
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Colombo R Series
Summary of Contents for Colombo R Series
- Page 1 EURO MORTISE MOUNTING R SERIES PASSAGE M300 - 2” BS PRIVACY M340 - 2” BS Refer to template no. 005 KEYLOCK M350 - 2” BS HD KEYLOCK HDM350 - 2” BS HD Mortise also available in 2 " or 2¾" backset Refer to template no.
-
Page 2: Tools Required
INSTALLATION INSTRUCTIONS FOR PASSAGE EURO MORTISE LOCK R M300 - non-bored door condition TOOLS REQUIRED: PLEASE NOTE Euro Passage Mortise Red side 5/8 Dia. Drill Bit, 5/8 Router Bit for Pocket, Required Springs are handed. Black must be hole 7/8 Router Bit for face plate and Phillips Screwdriver. positioning facing you for Right Hand Lever. - Page 3 INSTALLATION INSTRUCTIONS FOR PRIVACY EURO MORTISE LOCK R M340 - non-bored door condition TOOLS REQUIRED: Euro Privacy Mortise PLEASE NOTE Red side 5/8 Dia. Drill Bit, 5/8 Router Bit for Pocket, Required Springs are handed. Black must be hole 7/8 Router Bit for face plate and Phillips Screwdriver. positioning facing you for Right Hand Lever.
- Page 4 INSTALLATION INSTRUCTIONS FOR KEYLOCK EURO MORTISE LOCK R M350 non-bored door condition Euro Keylock Mortise TOOLS REQUIRED: PLEASE NOTE Red side 5/8 Dia. Drill Bit, 5/8 Router Bit for Pocket, Required Springs are handed. Black must be hole 7/8 Router Bit for face plate and Phillips Screwdriver. positioning facing you for Right Hand Lever.
- Page 5 HDM350 HD EURO MORTISE KEYLOCK WITH 2” BACKSET TEMPLATE For Non-bored door condition TOOLS REQUIRED: HD Euro Mortise Keylock 5/8 Dia. Drill Bit, 5/8 Router Bit for Pocket, 7/8 Router Bit for face plate and Phillips Screwdriver. 9/16” / 13.5 TS INCLUDED WITH YOUR Keylock Strike NEW HEAVY-DUTY KEYLOCK...
- Page 6 DOUBLE DUMMY D190 - Template for non-bored door condition Determine backset DOUBLE DUMMY SPINDLE HOLE DRILL ONLY IF YOU HAVE LEVER OR KNOB ON THIS SIDE OF DOOR 5/8” DIA. (16 mm) 2-3/8” BACKSET TEMPLATE PLASTIC ADAPTOR NOT USED FOR HD POINT NO.
