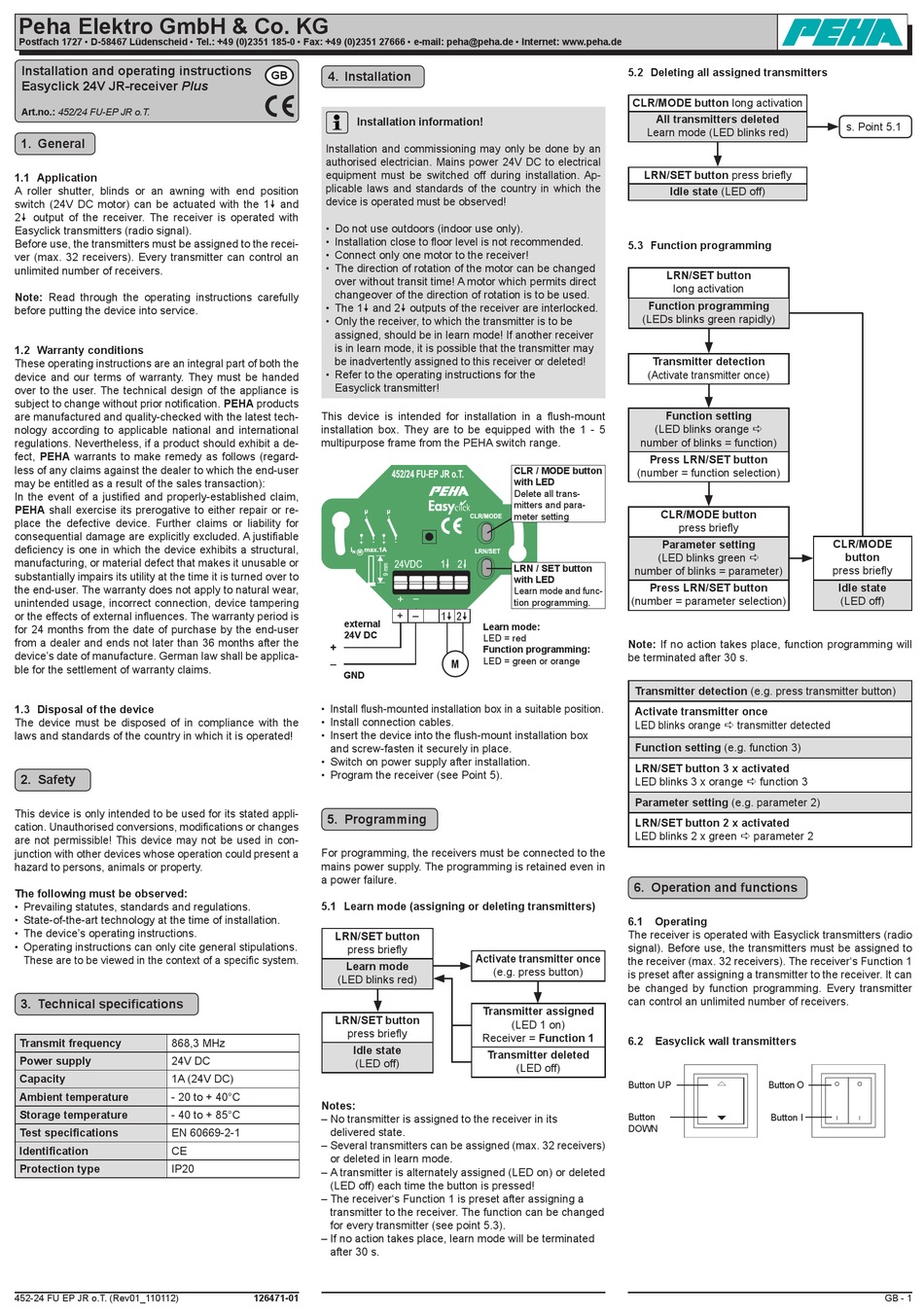

PEHA Easyclick 24V JR-receiver Plus Installation And Operating Instructions

Peha Elektro GmbH & Co. KG
Postfach 1727 • D-58467 Lüdenscheid • Tel.: +49 (0)2351 185-0 • Fax: +49 (0)2351 27666 • e-mail: peha@peha.de • Internet: www.peha.de
Installation and operating instructions
Easyclick 24V JR-receiver Plus
Art.no.: 452/24 FU-EP JR o.T.

1. General

1.1 Application
A roller shutter, blinds or an awning with end position
switch (24V DC motor) can be actuated with the 1 and
2 output of the receiver. The receiver is operated with
Easyclick transmitters (radio signal).
Before use, the transmitters must be assigned to the recei-
ver (max. 32 receivers). Every transmitter can control an
unlimited number of receivers.
Note: Read through the operating instructions carefully
before putting the device into service.
1.2 Warranty conditions
These operating instructions are an integral part of both the
device and our terms of warranty. They must be handed
over to the user. The technical design of the appliance is
subject to change without prior notification. PEHA products
are manufactured and quality-checked with the latest tech-
nology according to applicable national and international
regulations. Nevertheless, if a product should exhibit a de-
fect, PEHA warrants to make remedy as follows (regard-
less of any claims against the dealer to which the end-user
may be entitled as a result of the sales transaction):
In the event of a justified and properly-established claim,
PEHA shall exercise its prerogative to either repair or re-
place the defective device. Further claims or liability for
consequential damage are explicitly excluded. A justifiable
deficiency is one in which the device exhibits a structural,
manufacturing, or material defect that makes it unusable or
substantially impairs its utility at the time it is turned over to
the end-user. The warranty does not apply to natural wear,
unintended usage, incorrect connection, device tampering
or the effects of external influences. The warranty period is
for 24 months from the date of purchase by the end-user
from a dealer and ends not later than 36 months after the
device's date of manufacture. German law shall be applica-
ble for the settlement of warranty claims.
1.3 Disposal of the device
The device must be disposed of in compliance with the
laws and standards of the country in which it is operated!

2. Safety

This device is only intended to be used for its stated appli-
cation. Unauthorised conversions, modifications or changes
are not permissible! This device may not be used in con-
junction with other devices whose operation could present a
hazard to persons, animals or property.
The following must be observed:
• Prevailing statutes, standards and regulations.
• State-of-the-art technology at the time of installation.
• The device's operating instructions.
• Operating instructions can only cite general stipulations.
These are to be viewed in the context of a specific system.

3. Technical specifications

Transmit frequency 868,3 MHz
Power supply 24V DC
Capacity 1A (24V DC)
Ambient temperature - 20 to + 40°C
Storage temperature - 40 to + 85°C
Test specifications EN 60669-2-1
Identification CE
Protection type IP20
452-24 FU EP JR o.T. (Rev01_110112)
Hohlwand-Installationsklei Hörgeschädigtensysmbol Hubschrauber-Landeplatz Hunde tragen während Hupen
GB

4. Installation

nverteiler , Warnung vor Rolltreppenbenutzung
Rotorblättern
Hygienischen Atemschutz Im Brandfall keinen Im Brandfall werden sie Impulslichtbogenschweiß Imputz-Installationsdose
benutzen Aufzug benutzen! alarmiert! Wenn Sie einen en
Brand entdecken, Brand
Installation information!
Infektiöse Stoffe Information für die Information, Informieren Sie sich bitte Inline-Skating nicht
[Unterklasse 6.2] [IMO] Feuerwehr Informationsstelle über die Lage der gestattet
Treppen, Notausgänge.
Installation and commissioning may only be done by an
authorised electrician. Mains power 24V DC to electrical
Instrumente Instrumentiertische, Internationaler Ionisierende Isolierende
equipment must be switched off during installation. Ap-
-flächen Landanschluss Strahlungsenergie Schutzhandschuhe für
Arbeiten unter
plicable laws and standards of the country in which the
device is operated must be observed!
Kaltlicht; Elektromedizin, Karzinogenität Keimzell-Mutagenität Kein Handhaken Kein Trinkwasser
Beleuchtung über (Gefahrenkategorien 1A, (Gefahrenkategorien 1A, verwenden
Lichtleiter 1B und 2) 1B und 2)
• Do not use outdoors (indoor use only).
• Installation close to floor level is not recommended.
• Connect only one motor to the receiver!
• The direction of rotation of the motor can be changed
over without transit time! A motor which permits direct
changeover of the direction of rotation is to be used.
• The 1 and 2 outputs of the receiver are interlocked.
• Only the receiver, to which the transmitter is to be
assigned, should be in learn mode! If another receiver
is in learn mode, it is possible that the transmitter may
be inadvertently assigned to this receiver or deleted!
• Refer to the operating instructions for the
Easyclick transmitter!
This device is intended for installation in a flush-mount
installation box. They are to be equipped with the 1 - 5
multipurpose frame from the PEHA switch range.
452/24 FU-EP JR o.T.
µ µ
+ - + -
I max.1A
N M
24VDC
—
+
+ –
external
24V DC
+
+
-
–
GND
• Install flush-mounted installation box in a suitable position.
• Install connection cables.
• Insert the device into the flush-mount installation box
and screw-fasten it securely in place.
• Switch on power supply after installation.
• Program the receiver (see Point 5).

5. Programming

For programming, the receivers must be connected to the
mains power supply. The programming is retained even in
a power failure.

5.1 Learn mode (assigning or deleting transmitters)

LRN/SET button
press briefly
Learn mode
(LED blinks red)
LRN/SET button
press briefly
Idle state
(LED off)
Notes:
– No transmitter is assigned to the receiver in its
delivered state.
– Several transmitters can be assigned (max. 32 receivers)
or deleted in learn mode.
– A transmitter is alternately assigned (LED on) or deleted
(LED off) each time the button is pressed!
– The receiver's Function 1 is preset after assigning a
transmitter to the receiver. The function can be changed
for every transmitter (see point 5.3).
– If no action takes place, learn mode will be terminated
after 30 s.
126471-01
Hupen geboten
-2.Vorschlag-
Inert-Gas-Einrichrung
Installationskanal
Kalibriert
Kein Trinkwasser (ISO)
CLR / MODE button
with LED
Delete all trans-
mitters and para-
meter setting
CLR/MODE
LRN/SET
1 2
LRN / SET button
with LED
Learn mode and func-
tion programming.
1 2
Learn mode:
LED = red

Function programming:

LED = green or orange
M
Activate transmitter once
(e.g. press button)
Transmitter assigned
(LED 1 on)
Receiver = Function 1
Transmitter deleted
(LED off)

5.2 Deleting all assigned transmitters

CLR/MODE button long activation
All transmitters deleted
Learn mode (LED blinks red)
LRN/SET button press briefly
Idle state (LED off)
5.3 Function programming
LRN/SET button
long activation
Function programming
(LEDs blinks green rapidly)
Transmitter detection
(Activate transmitter once)
Function setting
(LED blinks orange 
number of blinks = function)
Press LRN/SET button
(number = function selection)
CLR/MODE button
press briefly
Parameter setting
(LED blinks green 
number of blinks = parameter)
Press LRN/SET button
(number = parameter selection)
Note: If no action takes place, function programming will
be terminated after 30 s.
Transmitter detection (e.g. press transmitter button)
Activate transmitter once
LED blinks orange  transmitter detected
Function setting (e.g. function 3)
LRN/SET button 3 x activated
LED blinks 3 x orange  function 3
Parameter setting (e.g. parameter 2)
LRN/SET button 2 x activated
LED blinks 2 x green  parameter 2

6. Operation and functions

6.1 Operating

The receiver is operated with Easyclick transmitters (radio
signal). Before use, the transmitters must be assigned to
the receiver (max. 32 receivers). The receiver's Function 1
is preset after assigning a transmitter to the receiver. It can
be changed by function programming. Every transmitter
can control an unlimited number of receivers.

6.2 Easyclick wall transmitters

Button UP Button O
Button Button I
DOWN
s. Point 5.1
CLR/MODE
button
press briefly
Idle state
(LED off)
GB - 1
