Forms + Surfaces Knight Bollard Installation Instructions

KNIGHT BOLLARD
TM
MATERIALS INCLUDED
a

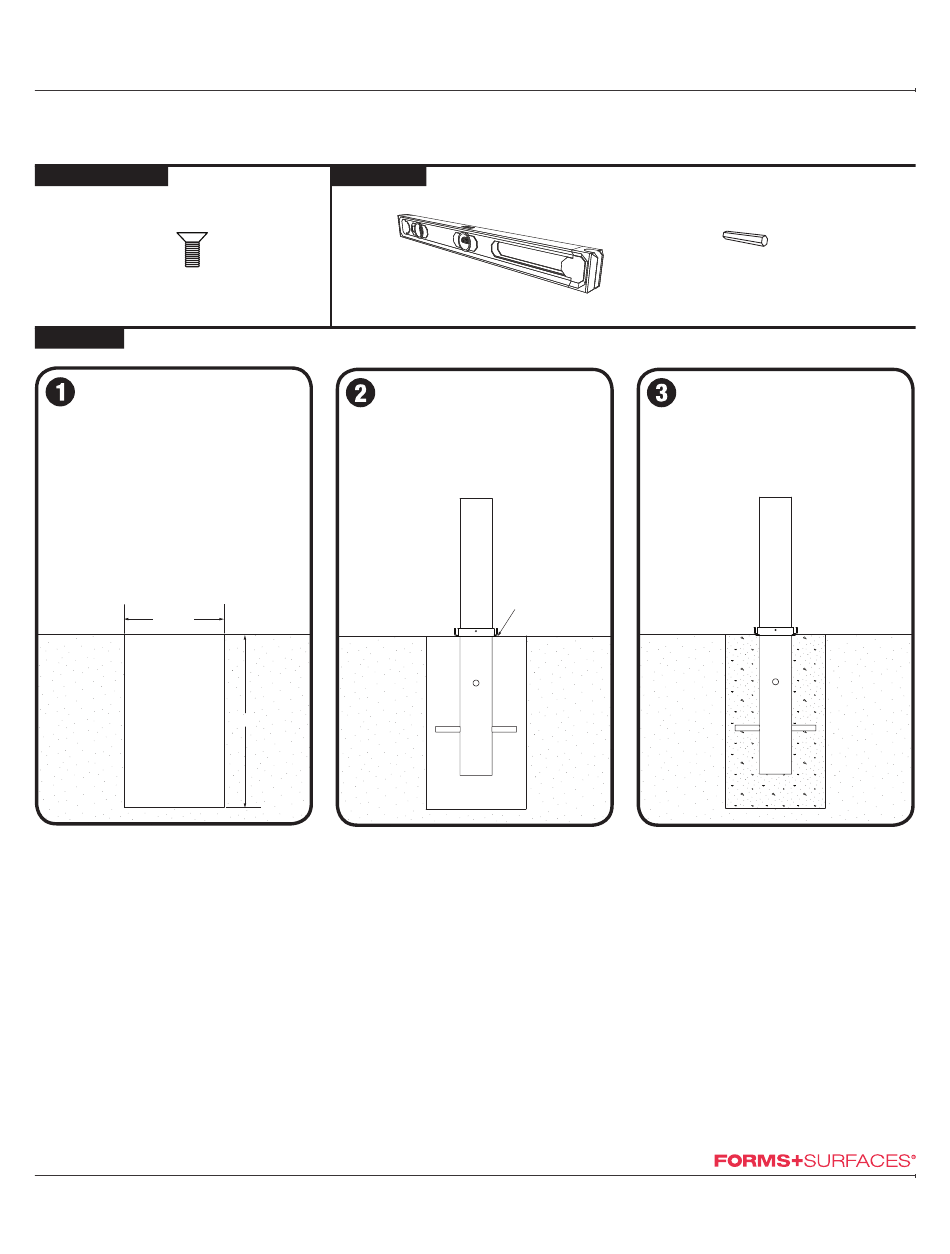

STEP BY STEP FOR ALL KNIGHT SECURITY BOLLARDS
WIDTH
Create space for footer
• A sufficient footer size depends on frost
and other conditions to be determined by
the installer. A minimum of an
18" x 18" wide x 30" deep footer is
recommended.
T 800.451.0410 | www.forms-surfaces.com
© 2016 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
TOOLS NEEDED
DEPTH
Position and support security core
• Position security core in desired final
location and support so concrete can be
poured in hole around security core.
• The bottom of the base plate should be
level with the ground surface.
NOTE: The security core also serves as a
conduit path.
SECURITY CORE INSTALLATION INSTRUCTIONS
level
BOTTOM OF
BASE PLATE
AT GROUND
LEVEL
Pour concrete footer
• Mix concrete and pour footer according to
concrete manufacturer's instructions.
• As soon as footer is poured, verify
levelness.
• Allow concrete to cure completely
according to concrete manufacturer's
instructions before removing any
temporary supports or installing fixture.
NOTE: Security core will need to be free
of moisture prior to fixture installation.
5/32" hex bit
page 1 of 2 | Rev. 08-16-16
