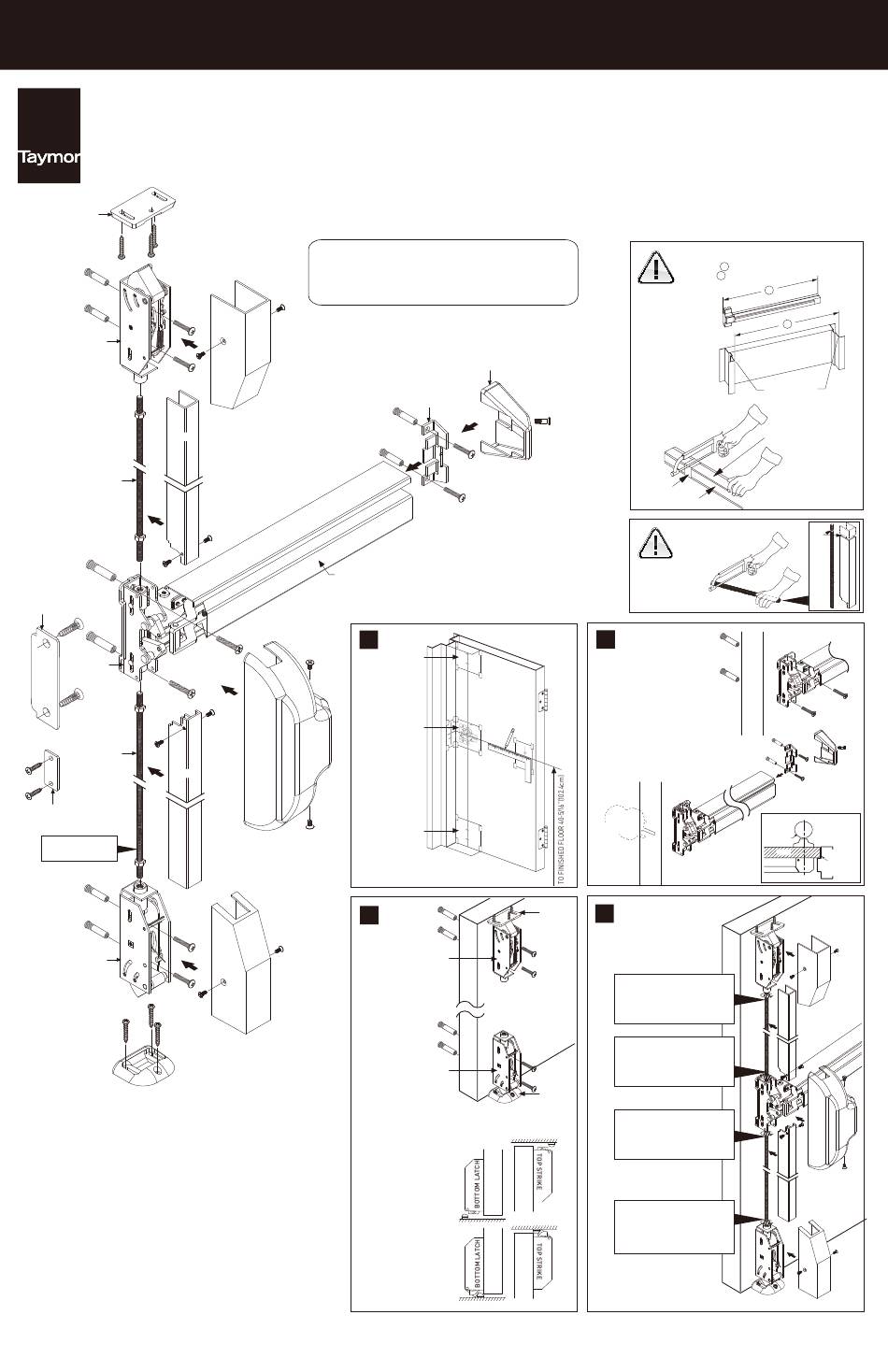

Taymor 8500VF Series Installation Instructions

INSTALLATION INSTRUCTIONS
17-F8536VAL /17-F8536VSS
8500VF SERIES
FIRE RATED PUSH PAD VERTICAL ROD EXIT DEVICE
LHR DOOR SHOWN (RHR DOOR OPPOSITE)
TOP
STRIKE
TOP
LATCH
COVER
TOP
ROD
STRIKE FILLER
PLATE ON FRAME
MAIN
CHASSIS
BOTTOM
ROD
COVER
LATCH FILLER
PLATE ON DOOR
NOTE:
Install bottom rod first.
BOTTOM
LATCH
BOTTOM
STRIKE
OCTOBER 2010
E26-8D50VF112
10/10-00
MAIN CHASSIS & TOP AND BOTTOM LATCHES MOUNTING SCREWS
For steel prepared doors, drill / tap and use supplied machine screws.
For thin gauge metal, non-prepared doors or for labelled wood doors use thru bolts.
See template for details on mounting screws.
COVER
PUSH BAR
1
TOP STRIKE/LATCH
TEMPLATE
COVER
MAIN CHASSIS
TEMPLATE
BOTTOM STRIKE
LATCH TEMPLATE
3
Install the top strike,
top latch, bottom strik
and bottom latch to
the door with screws
COVER
ADJUST SCREW ROD INTO OR OUT OF LATCH
WITH DOOR OPEN:
Latch bolt clears floor
and does not bind on strike
WITH DOOR CLOSED:
Latch bolt fully extended
and dead latched.
(will not push in)
END COVER
END SUPPORT
BRACKET
DOOR
L C
TOP
STRIKE
TOP
LATCH
DOOR
BOTTOM
LATCH
BOTTOM
STRIKE
.
DOOR
DOOR
DOOR DOOR
CUT DEVICE IF NECESSARY
Device length must be at least 2-3/16"(56mm)
A
shorter than
B
A
MEASURE FROM
INSIDE OF FRAME
Tape
Push bar
When a different rod length
is needed use instructions
below to cut rod.
2
A) Remove the rod adapters
then attach the head
DOOR
assembly to the door
with 2 screws as shown.
B) Install the end cover to the door
with 2 screws as shown.
DOOR
TRIM
(OPTIONAL)
EXIT DEVICE
4
Push the top latch in order to
turn the threaded rod
anticlockwise 19/32"(15mm) to
25/32"(20mm) into the top latch.
Push the bar again and turn the
threaded rod into the connection
clockwise about 3/16"(5mm) to
3/8"(10mm).
Push the bar first and then pull
the threaded rod in order to turn
it 3/16"(5mm) to 3/8"(10mm) into
the connection anticlockwise.
Turn the threaded rod clockwise
about 19/32"(15mm) to
25/32"(20mm) into the
bottom latch.
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD
B
PUSH BAR MUST BE FULLY
DEPRESSED WHILE CUTTING
OFF DEVICE
CUT
C L
TRIM
DOOR
STANDARD
FRAME
C L
DOOR
