S U N SA VE R 2 4 K U S E R M A NU AL

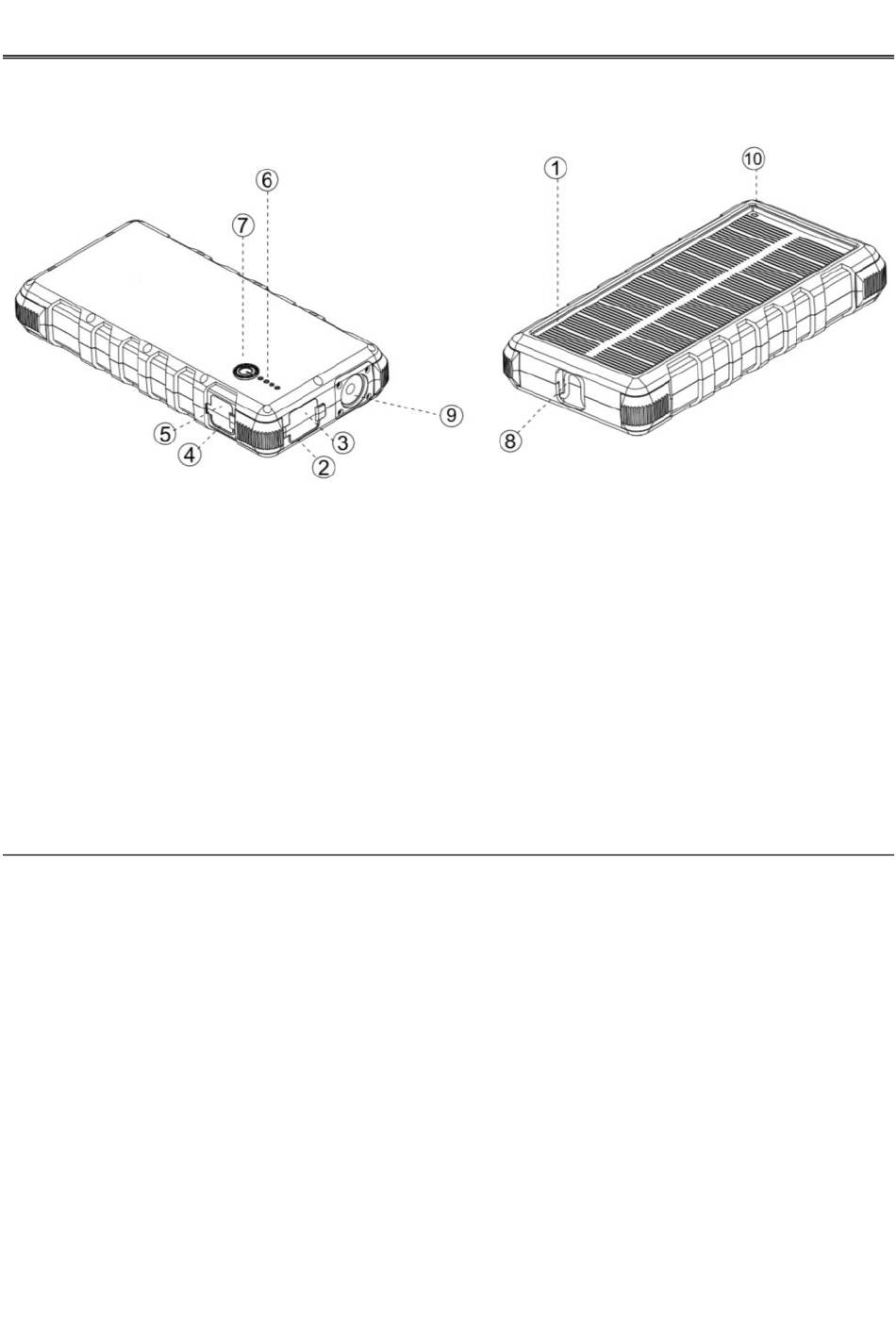

Product Diagram
1.
Monocrystalline Solar Panel
2.
Output 1 – USB Type A
3.
Output 2 – USB QC 3.0
4.
Input 1 – Micro USB
5.
Input 2 / Output 3 – USB Type C
Specification
Battery – 24,000mAh, 3.7V (88.8Wh) (A-Grade Lithium Polymer)
Solar Input – 300mA, 5V (1.5W Max)
Input 1 – 2.0A, 5V (10W Max)
Input 2 / Output 3 – 3.0A, 5V (15W Max)
Output 1 – 3.0A, 5V (15W Max)
Output 2 – 3.0A, 5V / 2.0A, 9V / 1.5A, 12V (18W Max)
Dimensions – 180 x 89 x 30mm / 553g
Operating Temperature – 0 - 45° C
6.
LED Power Indicator
7.
Power Button
8.
Carabineer Hook
9.
1-Watt LED Flashlight
10.
Solar Charging Indicator
Advertisement
Table of Contents
Summary of Contents for SUNSAVER 24K
-
Page 1: Product Diagram
S U N SA VE R 2 4 K U S E R M A NU AL Product Diagram Monocrystalline Solar Panel LED Power Indicator Output 1 – USB Type A Power Button Output 2 – USB QC 3.0 Carabineer Hook Input 1 –... - Page 2 It is normal for slight heating to occur when charging / discharging the 24K. When not in use, store the 24K in a cool dry place. If not used for a prolonged period time, fully recharge the 24K with a USB power supply before use.
- Page 3 24K is fully charged. Charging your device: When you have connected your devices charging cable to either of the 24K’s outputs, the 24K will automatically turn on and start charging your device. The 24K will automatically turn off once your device is fully charged or disconnected.
- Page 4 SOS Mode: With the flashlight ON press the Power Button TWICE. Warning DO NOT expose the 24K to extreme temperatures, such as on the dashboard of a car. DO NOT attempt to charge the 24K in direct sunlight when the 4 power indicator light is on.
