Summary of Contents for Maplin N67DR

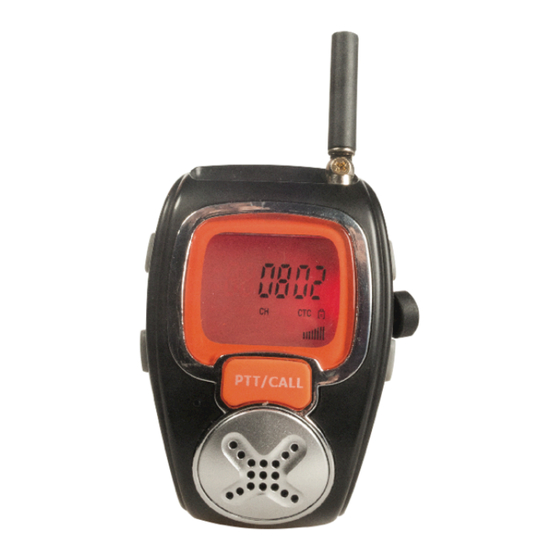

  • Page 1 Two Way Radio Watch N67DR...

  • Page 2: Specifications

    This lightweight and compact wrist watch style PMR446 radio can be operated conveniently with a simple flex of your wrist. Its ideal to stay connected with family or friends at parks, camping holidays, sporting events, music concerts. Virtually any indoor or outdoor activity where keeping in touch is important Key features: ·...
  • Page 3 LCD Screen 1. Channel Number, Displays current channels 2. CTC: display 38 CTCSS/83 DCS sub-channel 3. Battery Level indicator: display battery status 4. Time: will display time mode 5. Channels: Display channels 6. Volume level: Adjustable 8 volume level 7. Receive Indicator (RX)-Indicates when unit is receiving transmissions 8.

  • Page 4: Care And Safety

    CARE AND SAFETY Never open the case of your device, there are no user serviceable parts inside. Your device may interfere with TVs or radios, even when operating properly. To determine whether your PMR is causing interference, simply turn it off. If the interference stops, your device is causing it.

  • Page 5: Charging The Battery

    CHARGING THE BATTERY Caution：Do not use charger before inserting battery Your PMR watch comes with an A/C Adapter charger to charge your Lithium-Ion battery. 1. Lift the Headset/Charger Jack Cover located on the side of your unit 2. Connect the A/C adapter charger into a mains outlet 3.

  • Page 6: Navigating Through The Menu

    NAVIGATING THROUGH THE MENU To access the advance features, your PMR has a Menu with two functions. Watch Mode 1.To enter or exit watch Mode, press the Power key for around 3 seconds. A long keybeep tone is made (after a short keybeep tone) when the unit goes into Watch Mode and the LCD will display the time segments and battery icons for the watch.
  • Page 7 NOTE: In Watch Mode, no button/key will function unless pressing menu key for about 3 seconds to enter Communication Mode To set the Time（watch mode） Your PMR has a 12/24-hour Time Clock, which can be set as follows: 1. In Communication mode, enter to Menu mode by pressing the Menu key until a short keybeep tone is heard.

  • Page 8: Additional Features

    Choosing Frequency and Sub-tone Channels Your PMR has 8 base frequencies and 38 groups of CTCSS sub-tones, 83 groups of DCS sub-tones for each base frequency. If tones are selected, you can improve privacy and unwanted signals on your channel. Only PMR radios using the same frequency and sub-tone will be heard 1.
  • Page 9 Channel Scan To scan the whole channels of the PMR for radio users on the PMR446 band: 1. Press the Scan key found on the side of the unit. The unit will start to rapidly scan the channels of the PMR for any activity. The unit will pause on an active channel for 4~5seconds before resuming Scan function.
  • Page 10 Sending a Call Alert Tone To send a Call Alert Tone, Press the Red Button twice in a rapid action. The Call Alert Tone will be automatically transmitted for a factory-set length of time. During transmission, the Call icon appears on the display. You’ll hear a brief Call Alert Tone to confirm operation.
  • Page 11 When you switch on the PMR it will start the communication mode. The screen will show the time and weekday information after 6 seconds automatically. In the watch mode you can operate the communication functions by pressing the MENU, SCAN, PTT, UP or DOWN buttons. After finishing the operation the screen will show the time and weekday information again.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION ·Check the battery is installed properly ·Battery may be low, recharge as soon as possible No power ·Your battery may be damaged, replace with a new one ·Press the UP button to increase VOLUME. ·The receiving signal may be weak and/or out of range. Weak ·Check the antenna for optimum performance.
  • Page 13 38 CTCSS CODE LIST Code Frequency(Hz) CODE Frequency(Hz) 131.8 67.0 136.5 71.9 141.3 74.4 146.2 77.0 151.4 79.7 156.7 82.5 162.2 85.4 167.9 88.5 173.8 91.5 179.9 94.8 186.2 97.4 192.8 100.0 203.5 103.5 210.7 107.2 218.1 110.9 225.7 114.8 233.6 118.8 241.8...
