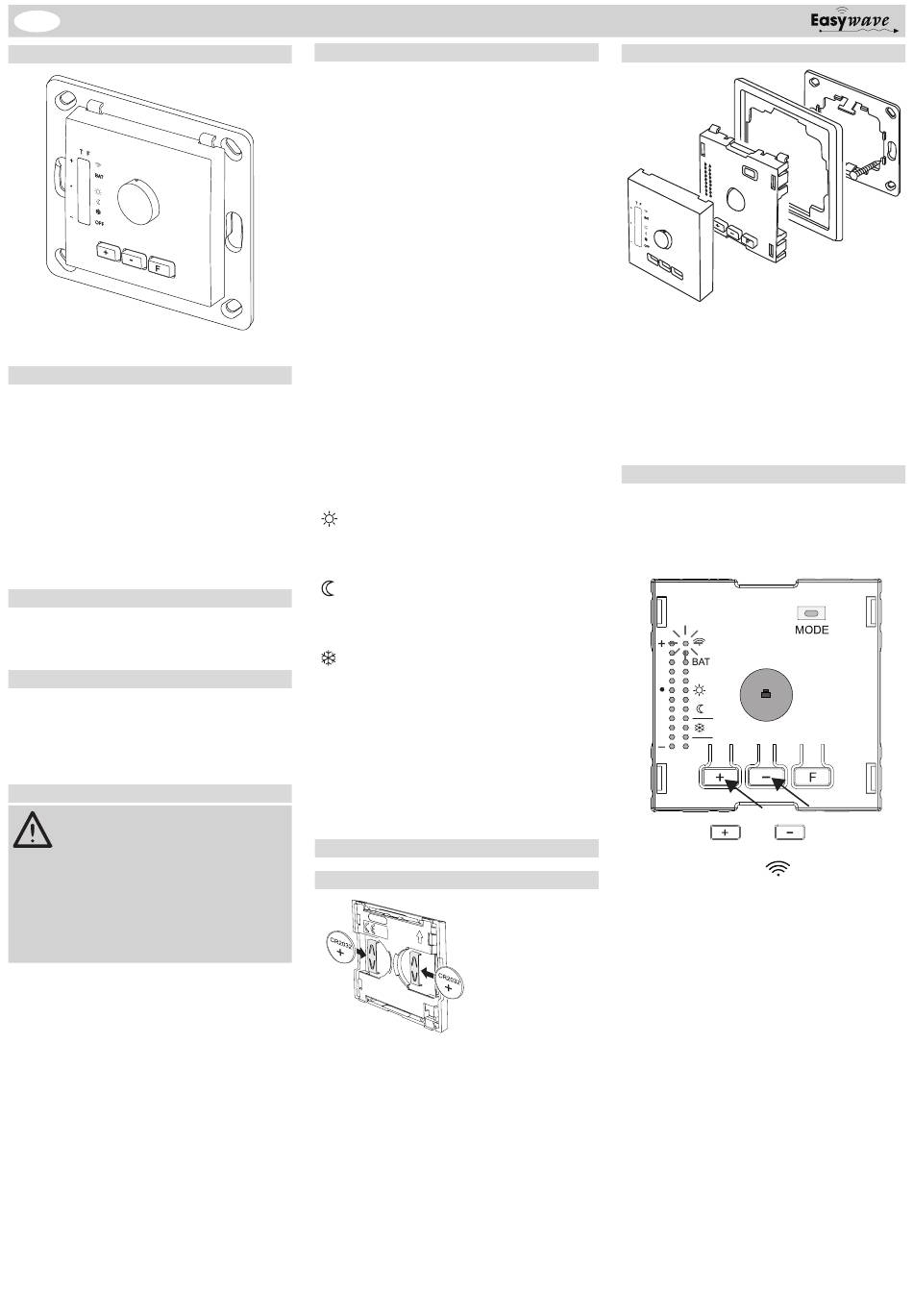

Eldat Easywave ST01 Series Quick Start Manual

ST01 Temperature sensor Heating
GB
Model
ST01E5001-01
Technische Daten
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Range:
under free field conditions
in the building
Operating temperature: -20 °C to +40 °C
Control range: +14 °C to +25 °C
Power supply: 2x 3 V-battery, CR2032
Dimensions: Format 55
Cover 55 x 55 x 16 mm
Plate 71 x 71 x 1,5 mm
Weight: 28 g
Scope of delivery
Transmission module, 2 batteries CR2032, cover,
mounting plate, attachment set, operating instruc-
tions
Intended use
The radio thermostat may only be used to measu-
re the ambient temperature and to operate Easy-
wave radio receivers.
The manufacturer shall not be liable for any da-
mage caused by improper or non-intended use!

Safety instructions

Please read the operating instructions
carefully before using the device!
Also read the operating instructions
for the devices to be controlled! Do not modify
the devices!
Have faulty hand transmitters checked by the
manufacturer!
Keep the batteries away from children!
Keep the packing away from children!
Function
The temperature sensor ST01 is a battery-ope-
rated radio thermostat for indoor use. Detected
deviations from the setpoint are send via Easy-
wave radiogram to radio receivers which are
connected to a heating system (Only with RCJ15
and RCP15 possible!). That way, the tempe-
rature can be controlled between 14 °C and
25 °C via radiogram.
The ST01 can be operated in the control mode
ON/OFF or PDM optionally. These control modes
determine the intervals in which radiograms will
be sent:
ON/OFF (I/O): If the measured temperature ex-
ceeds the setpoint, the heating will be turned off.
If the current value has dropped below the set-
point, the heating will be turned on. The heating
receives the command to turn off or on via radio-
gram.
PDM (Pulse duration modulation): PDM is an
adaptive control mode. The temperature sensor
registers the heating behaviour and sends swit-
ching commands in larger time intervals. So, the
battery in the sensor can be used longer.
You can select three different operating modes
approx. 150 m
on the temperature sensor: day operation, night
approx. 30 m
setback and anti-freeze. You can also turn off the
temperature sensor.
OFF
The radio thermostat has been programmed with
the following settings:
- Control mode I/O
- Operating mode day operation
- Setpoint room temperature 20 °C
Start-Up
Inserting the batteries
Format 55
In the operating modes day operati-
on, you can save room temperature
setpoints for the desired day room
temperature permanently.
In the operating modes night set-
back, you can save room tempera-
ture setpoints for the desired night
room temperature permanently.
In anti-freeze mode, the temperature
remains constantly at + 5 °C in order
to prevent pipes from freezing.
Off does not send radiograms.
Make sure the
poling is correct.
The positive pole
has to be visible!
Mounting
B
A
1. Screw or stick the mounting plate (D) to the
installation site.
2. Put the cover frame (C, not in the scope of
delivery) on the mounting plate (D).
3. Lock the transmission module (B) on the
catches.
4. Mount the cover (A).
Programming ST01 into the receiver
Also read the operating instructions for the
devices to be controlled!
1. Activate the programming mode on the
corresponding receiver. You can only do
that directly on the receiver.
T F
I/O
PWM
OFF
ODER
2. Press the -oder
sensor to send a telegram.
→ the radio symbol
lights up briefly (2 s)
→ the transmitter has been programmed
into the receiver
3. The receiver leaves the programming mode
automatically after having received the
telegram.
E
D
C
-button on the
on the sensor
