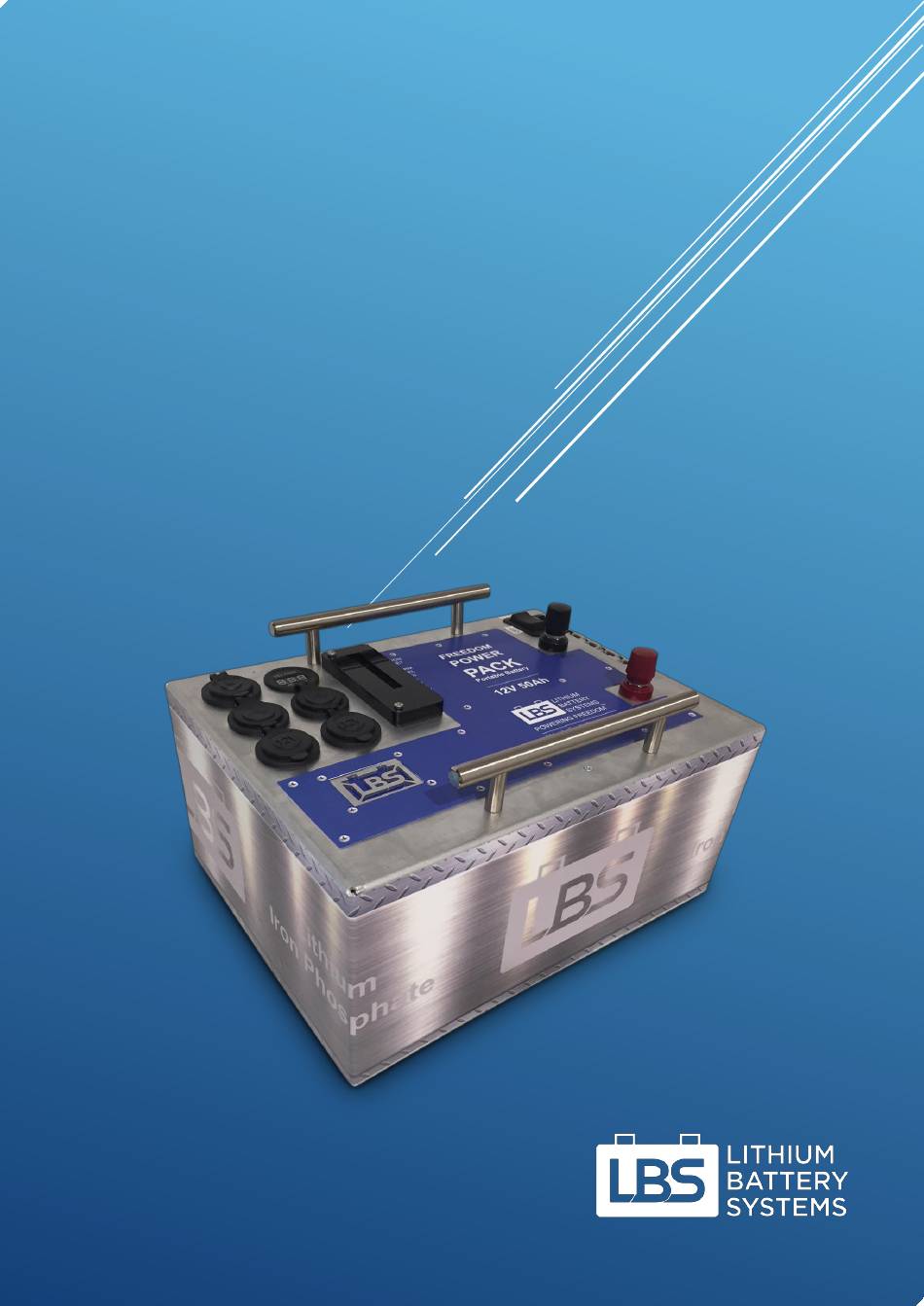

- Page 1 Battery User Guide Freedom Power Pack (FPP) 12V Portable Battery Camping Caravanning Fishing Emergency Power LBS-1250-FPP-STD LBS-1250-FPP-DCC POWERING FREEDOM...
- Page 2 LBS offer these general guidelines; however, you should seek LBS advice or that of a qualified electrical tradesperson if you are in doubt.
- Page 3 2. Ensure the battery is operating within an acceptable temperature range Like all batteries, LBS batteries operate and perform the best as well as last the longest in a cool and stable temperature environment of between 10 C and 25 C.
- Page 4 ___________________________________________________________________________ Always perform work on passive wiring with the battery in the OFF position. If you are unsure how to install your battery seek advice from LBS or a suitably qualified 12V electrical tradesperson. 6. Charging and discharging at the same time There are no issues with charging the battery and discharging the battery (running loads) at the same time.
-
Page 5: Battery Components
1.2 Anderson Connectors The two grey Anderson connectors are rated to a maximum of 50A continuous operation for either charge or load connections. The single black Anderson connector is the DC charger (DCC version only). Page 4 User Guide LBS-1250-FPP_1.32... - Page 6 DC charger (input 5-30V, 10A) The User will need to consider the correct size of cable to connect to the Anderson plugs. LBS has an extensive range of cables that are designed to operate safely at the rated current and distance you would need.
- Page 7 There is also an audible buzzer. Permanent Fault Cell Under Voltage (battery empty) BMS (MOSFETs) too hot Battery too cold Battery too hot Short Circuit (Current > 1000A for 70µs) Page 6 User Guide LBS-1250-FPP_1.32...
- Page 8 Battery User Guide V1.2 April 2018 ___________________________________________________________________________ Over Load (Current > 500A for 1 second) Over Current (Current > 100A for 10 seconds) Communications lost between Atmel and TI BQ microcontrollers (both on BMS). Page 7 User Guide LBS-1250-FPP_1.32...
- Page 9 5 seconds. By depressing the Level button, the battery will again light the LED’s to indicate how full (SOC) the battery is. The battery has an illuminated blue LBS logo which will glow when the battery is ON.
- Page 10 13.3V. This is designed to prevent drawing power from the vehicle start battery when the engine is not running (which would deplete the vehicle start battery). These voltage setpoints are adjustable and can be tuned to suit factors such as cable size and length. Page 9 User Guide LBS-1250-FPP_1.32...
- Page 11 DC charging, so that power goes FROM the FPP into the vehicle start battery to charge it up, perhaps even via the cigarette socket of the vehicle. This is useful if your vehicle (or your neighbour’s vehicle) is struggling to start the engine because of a flat battery. Page 10 User Guide LBS-1250-FPP_1.32...
- Page 12 Before connecting an inverter please follow these steps: 1) Turn the battery AND the inverter OFF 2) Connect the inverter cables 3) Turn the battery ON and wait 4 seconds 4) Turn the inverter ON. Page 11 User Guide LBS-1250-FPP_1.32...
- Page 13 Battery User Guide V1.2 April 2018 ___________________________________________________________________________ Battery Nameplates Specifications – DCC & STD Page 12 User Guide LBS-1250-FPP_1.32...
