Summary of Contents for Hamilton WSA50
- Page 1 WSA50 Wireless Streaming Amplifier User Manual...
- Page 2 INTRODUCTION The Hamilton WSA50 is designed to meet the high demand of the installation market and in most applications, can also be installed as a retrofit Installation. When used in conjunction with the Hamilton range of ceiling speakers, the Hamilton WSA50 can be installed around your home, restaurant etc and can be wirelessly linked together on your Wi-Fi network.
-
Page 3: Interface And Functions

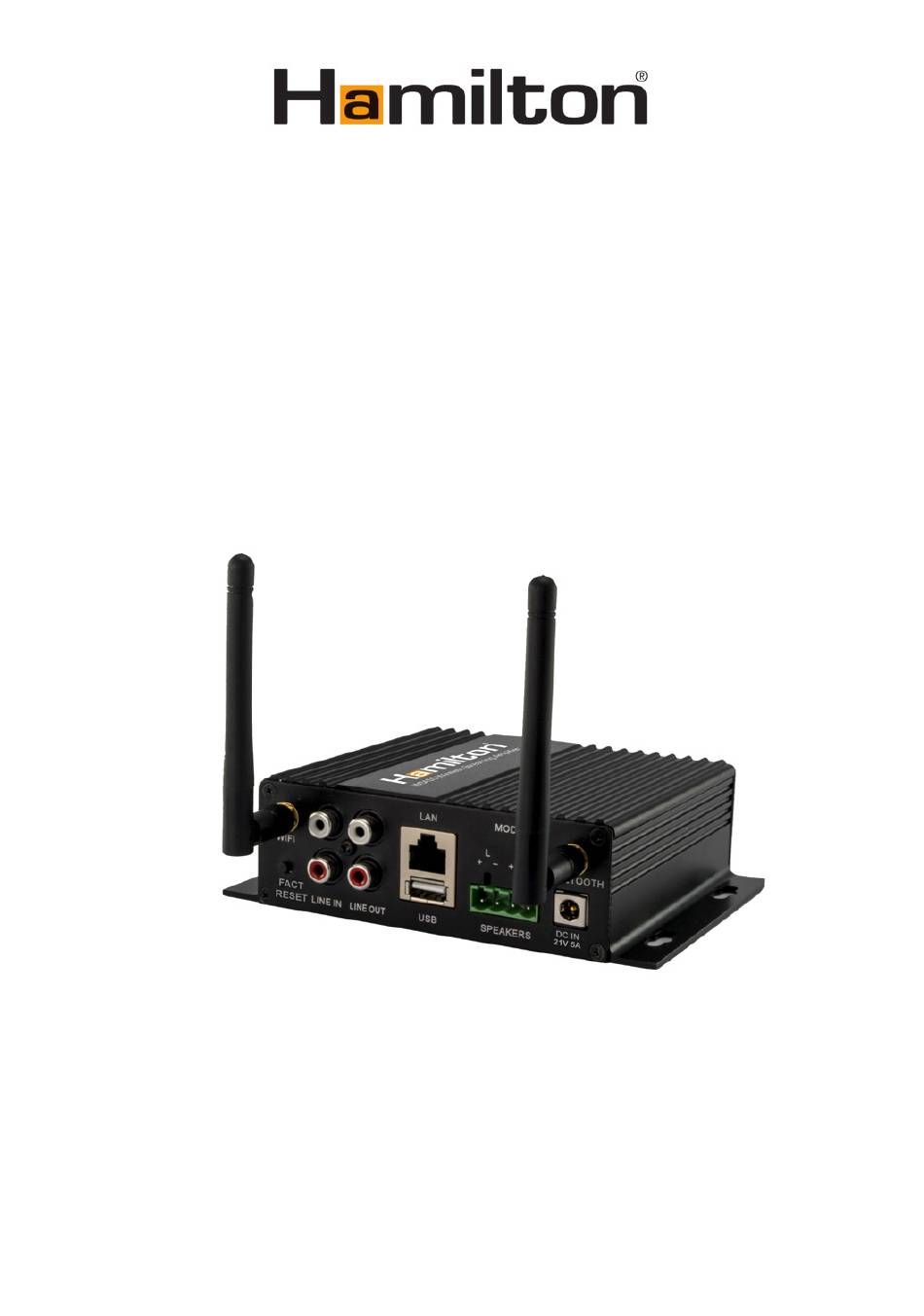

INTERFACE AND FUNCTIONS Rear Panel WIFI FACT DC IN LINE IN LINE OUT SPEAKERS RESET 21V 5A ① WiFi Antenna: Used for Wi-Fi connection ② Factory Reset: Used to reset the device if you have a problem with your Wi-Fi connection ③... - Page 4 INTERFACE AND FUNCTIONS Front Panel ⑩ LED: Indicates the status of the device Blinking White: Power on or Network Connecting Solid White: Network connected, WiFi and USB streaming Solid Blue: Bluetooth Input Active Solid Green: Line Input Active...
-
Page 5: Quick Install
3. Speaker Wire Connection The Hamilton WSA50 can handle speakers from 4-16ohms impedance. (We recommend using a quality 2 core cable of 42 strands). Connect the speakers to the amplifier, noting the positive and negative terminals match with the positive and negative terminals on your speakers. -
Page 6: Wiring Diagrams
WIRING DIAGRAMS 1. Plug Socket Power the amplifier with the power adapter included in the accessories. 21V DC IN POWER SUPPLY 2. For In-Ceiling Installation - Connect using a switched fused spur. SWITCHED FUSED SPUR 3AMP 21V DC IN POWER SUPPLY We recommended you have access to the switched fused spur. - Page 7 CONNECT YOUR DEVICE TO THE NETWORK 1. Download the Hamilton Player app from the app Store for iOS and Google Play for Android. 2. Open the app and select add the device. 3. Select the WSA50 device. 4. This set up will guide you to the Wi-fi settings page on your...
- Page 8 SET UP 5.a Select the Hamilton WSA50 network. 5.b You are now connected to the Hamilton WSA50 network. Now return to the Hamilton Player app. 6. Connect your Hamilton WSA50 to your home router. Enter your network password and press continue.
- Page 9 PLAYBACK Your device list will show your Hamilton WSA50. (1) Press on the device/zone to select your music source. (Note: You will skip the now playing page as no source has been selected (2) and take you straight to the music source page.
-
Page 10: Adding More Devices
ADDING MORE DEVICES 1. Select the + icon on the top right 2 Follow the steps 3-9 above on pages 6&7. 3. Your second device is now added. Multi-room playing 1. Click and drag any device bar into another device bar, this creates a group which all the speakers will play the same music. - Page 11 SETTINGS To access the equaliser settings within the Hamilton Player app, simply go to the device list, press the settings icon on the required device at the top right hand side, then select the EQ. Other settings available include Alarm Clock,...
-
Page 12: Firmware Update
FIRMWARE UPDATE Firmware update Hamilton will notify you in your app when there is a new firm- ware version available. It’s recommended to update firmware whenever available as this might not only correct bugs and improve security, but could also add new features or services. -
Page 13: Limited Warranty
The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposes only. Hamilton assumes no responsibility for any differences between the product mentioned in this guide and the product you may have.
Need help?
Do you have a question about the WSA50 and is the answer not in the manual?
Questions and answers

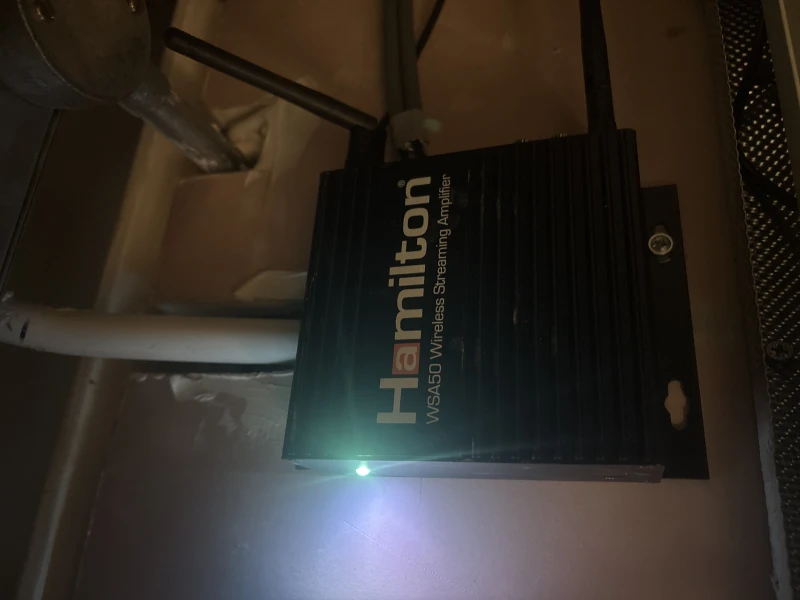

I can’t get my Hamilton phone app to reconnect to the main system - even though the light is on and not blinking
If the LED on the Hamilton WSA50 is solid white, the device is already connected to the network. To reconnect the Hamilton Player app to the main system, ensure your phone is connected to the same network as the device. Open the Hamilton Player app, go to the device list, and select the required device. If the device is not listed, try restarting both the app and the WSA50, then search again.
