ZEN HOME J42003-XY-1L Installation Instruction

INSTALLATION INSTRUCTION
J42003-XY-1L
MODEL: Racketta
CAREFULLY READ THESE INSTRUCTIONS BEFORE MOUNTING THE FAN.
SAFETY PRECAUTIONS
1. Never attach the fan to a power point, but to the ceiling itself.
2. The minimum distance between the blades of the fan and the floor must be more than
2.3m.The minimum carrying capacity of the hook from which the fan is hung must be 100kg.
3. Make sure to install all poles disconnection switch having a contact separation of at least
3mm between poles in the supply wiring to the ceiling fan.
4. The model or type reference of luminaries which may be installed in fans which are
constructed for his purpose.
5. Switch off the power before connecting.
6. The electrical wiring must be in accordance with the local regulation.
7. The fan must be properly earthed to avoid the risk of electric shocks.
8. Never mount the fan in a moist or wet room.
9. Be careful when working near the rotating blades.
CAUTION
Always have your fan installed by someone who is knowledgeable about electrical wiring.

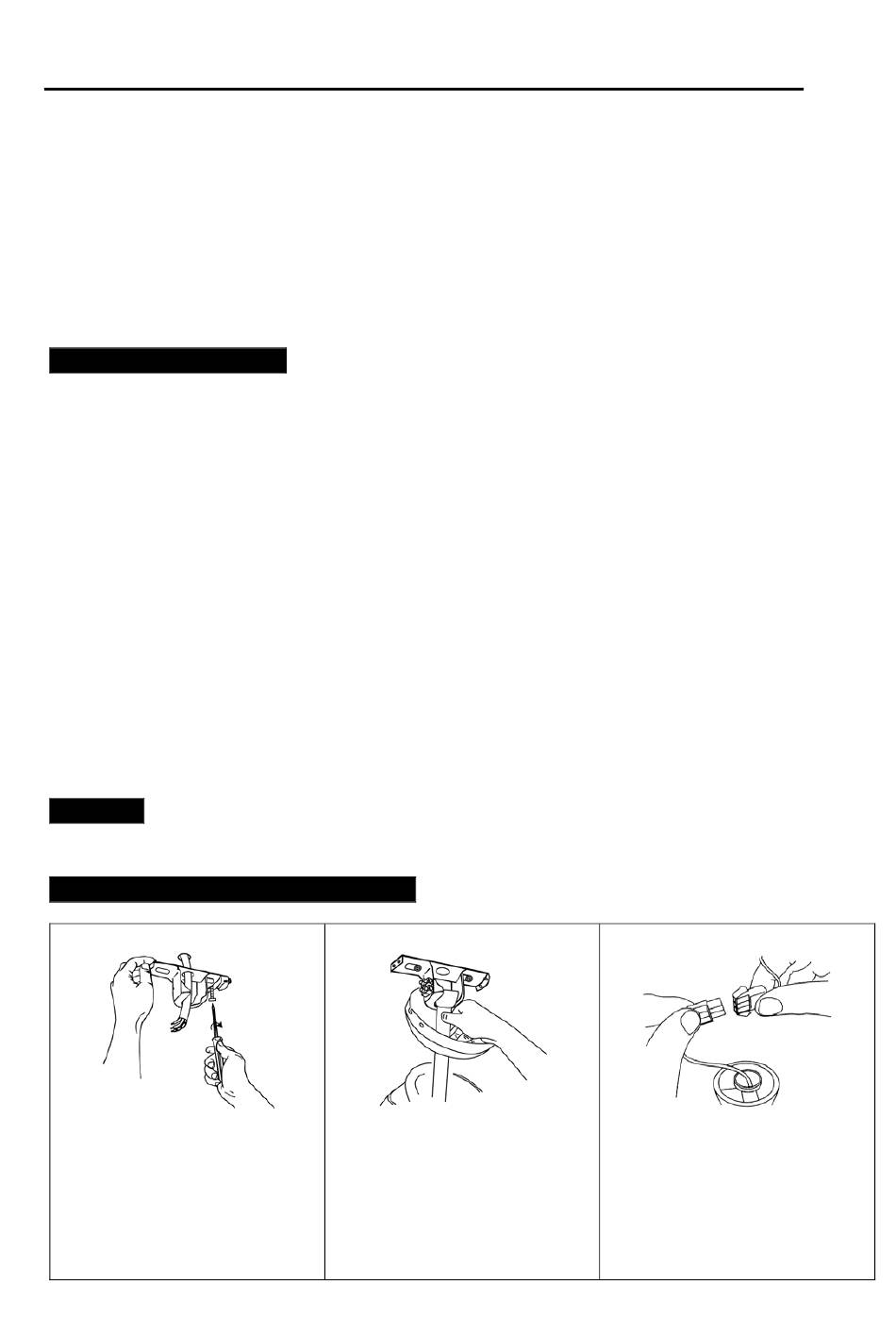

FAN INSTRALLATION ILLUSTRATION
1. Secure the mounting plate to a
ceiling joist with two screws,
spring washers and flat washers
provided. Ensure the support for
the mounting plate must be
capable of safely and securely
holding the moving weight of the
fan.
2. Hang the fan assembly onto
the mounting plate.
mounting plate has a lug on it;
this should be lined up with the
corresponding groove on the
fan assembly ball joint.
1
3. Connect the internal lead to
The
the fan body by clipping together
the two plastic male / female
connectors are firmly clicked
together.
