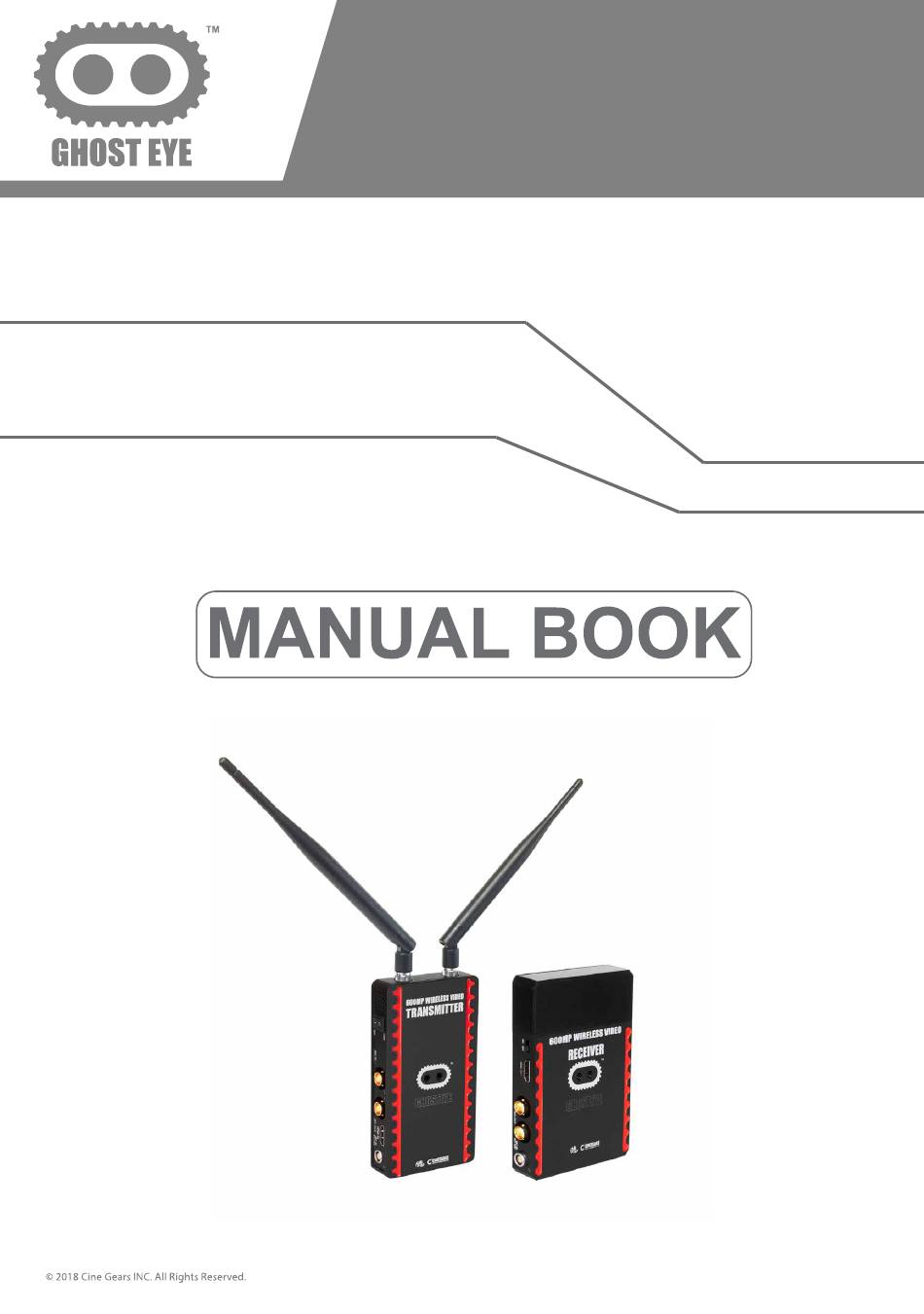

- Page 1 600M PLUS WIRELESS VIDEO TRANSMISSION SYSTEM...
-
Page 3: Table Of Contents
About the 600M Plus Wireless Video Transmission System Foreword Brief Introduction Features Specification Structure & Interface Installation LCD Screen Supports full PSF resolutions Trouble Shooting Disclaimers About Cinegears... -
Page 4: About The 600M Plus Wireless Video Transmission System
Foreword Please read this manual carefully before you use this product retain it properly for future reference. If there is any doubt or difficulty in the process of product usage, please feel free to contact us or the dealer. The company reserves the authority to amend the specification. Brief Introduction As the widely use of live broadcasting, there is some problem existing in the process of cable wiring, such as the high cost and short-life usage of the cable. -
Page 5: Specification
Specification Specification ITEM Specification Frequency 5.1-5.9(GHz) Bandwidth 40MHz Video Formats 1080p 23.98/24/25/30/50/60 Supported 1080psf 23.98/24/25 1080i 50/59.94/60 Audio Formats PCM, DTS-HD, Dolby TrueHD Supported transmission range 300m(MAX) Transmitter Antenna External Antenna x 2 pcs Transmission power 18dbm HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Functional Interface Socket;... -
Page 6: Structure & Interface
Structure & Interface Structure & Interface Transmitter 600MP... - Page 7 Structure & Interface Structure LCD Screen Display the information about the Channel, signal input, capacity, temperature. Select the correct Channel. DOWN Select the correct Channel. MENU Unlock the screen and confirm the selection. Power ON/OFF Power ON/OFF SDI IN Connect the HD camcorder which support 3G-SDI, HD-SDI SDI OUT (Loop) Connect to the HD digital monitor which support 3G-SDI, HD-SDI HDMI IN...
- Page 8 Structure & Interface Structure & Interface Receiver 600MP...
- Page 9 Structure & Interface Structure Antenna Built-in Antennas. LCD Screen Display the information about Channels, signal input, capacity, temperature. Select the correct Channel. DOWN Select the correct Channel. MENU Unlock the screen and confirm the selection. RSSI Status Display Signal Strength Power ON/OFF Power ON/OFF HDMI OUT...
-
Page 10: Installation
Mini USB For firmware upgrade use. *Since the product’s improving process, all the performance, design and specifications of our products are subject to minor change without prior notice. Installation For Transmitter 1.Fix the antennas to the transmitter, and arrange them to be right angle as figured below... - Page 11 2.Connect the transmitter to the power supply via the certail power cable or SONY F970/F550 battery. Connect the SDI/HDMI cable to the HD video source. 3.Turn ON the power supply and make sure the transmitter strat to work.
- Page 12 4.Long press the “MENU” button to unlock the screen and then press “+” or “-” button to select the wireless channel that corresponding to the Receiver, then press the “MENU” button to comfirm. When the video signal is normally transferred, the LCD screen will display “video”.
- Page 13 2.Turn ON the power supply and make sure the receiver start to work. 3. Long press the “MENU” button to unlock the screen and then press “+” or “ - ” button to select the wireless channel that corresponding to the Transmitter, then press the “MENU”...
-
Page 14: Lcd Screen
LCD Screen LCD Screen 600MP Transmitter LCD Screen Screen Lock/Unlock : The screen will be always locked unless long press the MENU button to unlock. Power Info : Display the current power supply status. Channel NO. : Display the current Channel NO. of device. Video format : Display the video source format. - Page 15 LCD Screen 600MP Receiver LCD Screen Screen Lock/Unlock : The screen will be always locked unless long press the MENU button to unlock. Power Info : Display the current power supply status. Channel NO. : Display the current Channel NO. of device. Video format : Display the video source format.
-
Page 16: Supports Full Psf Resolutions
Supports full PSF resolutions Supports full PSF resolutions 25PFS in = 25PFS out 23.98P in = 23.98P out 29.97PSF in = 29.97PSF out 24P in = 24P out 30PSF in = 30PSF out 25P in = 25P out 29.97P in = 29.97P out 30P in = 30P out 50i in = 50i out 59.94i in = 59.94i out... -
Page 17: Trouble Shooting
Trouble Shooting Trouble Shooting TROUBLES&POSSIBLE REASONS: SOLUTON: Displaying “Waiting for connection…” for a long time Transmitter is not powered up. Power on the transmitter. Transmitter or receiver is not placed correctly. Place the TX or RX correctly. The transmitter and receiver are too far away. Move the receiver closer to the transmitter.
