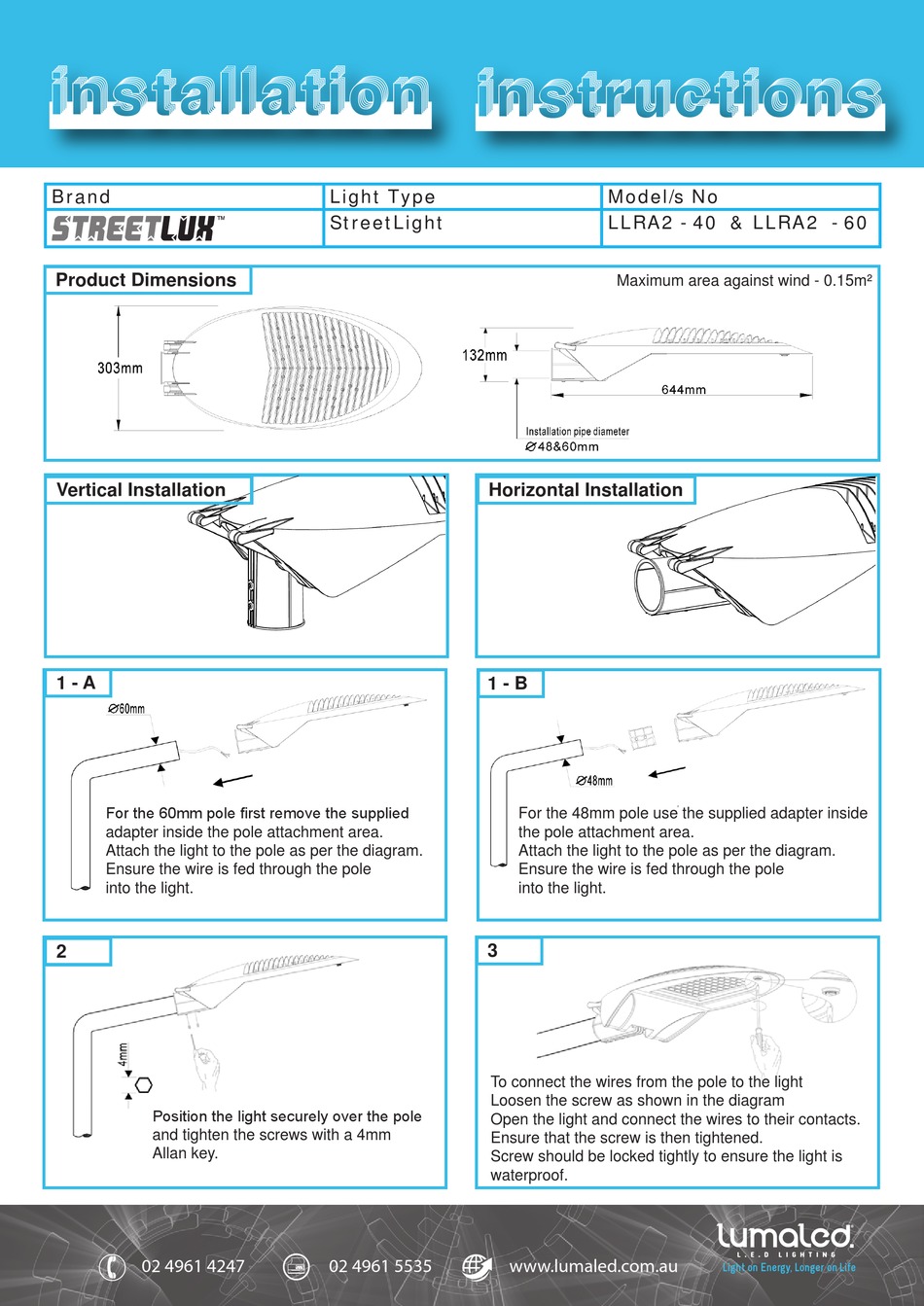

INSTALLATION INSTRUCTIONS
Brand
Product Dimensions
Vertical Installation
1 - A
For the 60mm pole first remove the supplied
adapter inside the pole attachment area.
Attach the light to the pole as per the diagram.
Ensure the wire is fed through the pole
into the light.
2
Position the light securely over the pole
and tighten the screws with a 4mm
Allan key.
02 4961 4247
Light Type
StreetLight
02 4961 5535
Model/s No
LLRA2 - 40 & LLRA2 - 60
Maximum area against wind - 0.15m²
Horizontal Installation
1 - B
For the 48mm pole use the supplied adapter inside
the pole attachment area.
Attach the light to the pole as per the diagram.
Ensure the wire is fed through the pole
into the light.
3
To connect the wires from the pole to the light
Loosen the screw as shown in the diagram
Open the light and connect the wires to their contacts.
Ensure that the screw is then tightened.
Screw should be locked tightly to ensure the light is
waterproof.
www.lumaled.com.au
Advertisement
Table of Contents
Summary of Contents for Streetlux LLRA2-40
- Page 1 INSTALLATION INSTRUCTIONS Brand Light Type Model/s No StreetLight LLRA2 - 40 & LLRA2 - 60 Product Dimensions Maximum area against wind - 0.15m² Vertical Installation Horizontal Installation 1 - A 1 - B For the 60mm pole first remove the supplied For the 48mm pole use the supplied adapter inside adapter inside the pole attachment area.
- Page 2 Installation Instructions - cont. Wire Connection Connecting the light source The length of the bare wire is 6 mm Electrical components Neutral (Blue Wire) Earth (Yellow/Green Wire) Active (Brown Wire) Detailed sketch for wire path. 1. Inspect the light, to ensure it is intact. 2.
- Page 3 Installation Instructions - cont. Installation options & Angle adjustments +5° 0° 0° +5° +10° - 5° 02 4961 4247 02 4961 5535 www.lumaled.com.au...
