Tysso PDC2 Manual

Install Utility Software
Run Setup.exe from your CD ROM drive and follow
the installation instructions accordingly.
Login to PDC2/MPDC
PDC2/MPDC is password protected to prevent
unauthorized access to the data stored in the reader. No
default password is set at factory. You have the option
not to use this login feature at all. Simply press OK
when prompted for your password at login.
Download Captured Data to Host PC
Execute the download command from the main menu
of the bundled utility. Upon completion of the
download operation, a data window will pop up in the
foreground of your screen for your review. You can
either print it out or save it to a file for further
processing.
Download and Configuration Utility
A PDF softcopy of the Operation Guide is contained in
the utility CD. Refer to the step-by-step operating
procedures to use the utility to interoperate with the
reader.
4

Specifications

PDC2
80C31 8-bit CPU
Processor
Memory Capacity 256KB Flash
Battery Type 9V DC Alkaline disposable
Tracks 1&2&3 configurable
Track Readability
Magnetic Head Life 300,000 passes minimum
Swipe Speed 5 to 60 inch/sec bidirectional
ISO 7811
Standard Compliance
Housing ABS Plastic
Color Black
x
100 mm 33 mm 58 mm
Dimensions
Weight 131 grams (with battery)
o
Operating Temperature 0 to 45 C
o
Storage Temperature -20 to 70 C
Relative Humidity 0% to 95% (non-condensing)
Stereo plug to DB9F
RS-232 Cable
Operating System Windows 98, 2000, XP
MPDC
Processor 80C31 8-bit CPU
256KB Flash
Memory Capacity
Battery Type 3.7V 600 mAh Lithium-Ion
rechargeable
Track Readability Tracks 1&2&3 configurable
Magnetic Head Life 300,000 passes minimum
5 to 60 inch/sec bidirectional
Swipe Speed
Standard Compliance ISO 7811
Housing ABS Plastic
Black
Color
x
Dimensions 53 mm 34 mm 34 mm
Weight 51 grams (with battery)
o
Operating Temperature 0 to 45 C
o
Storage Temperature -20 to 70 C
0% to 95% (non-condensing)
Relative Humidity
RS-232 Cable Stereo plug to DB9F
Operating System Windows 98, 2000, XP
5

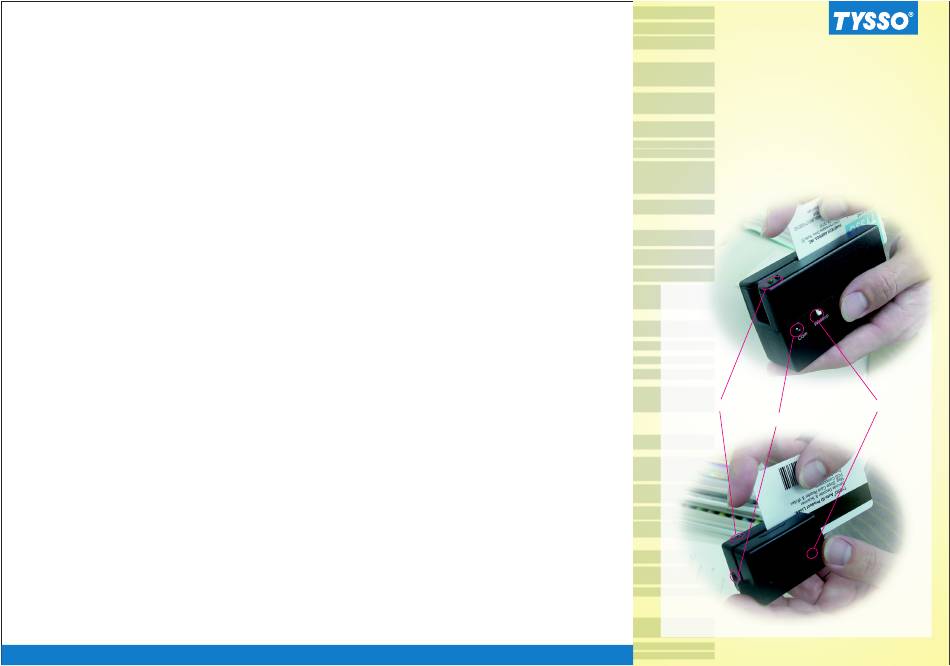

PDC2/MPDC
Magstripe Portable
x

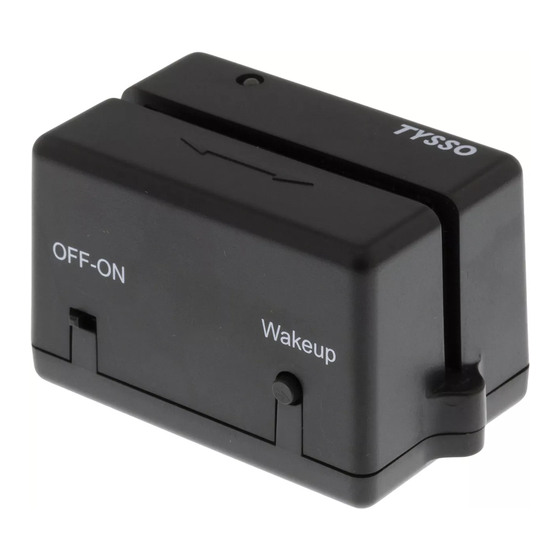

PDC2
Status Indicator
x
Wakeup Button
Download Cable Jack
MPDC
