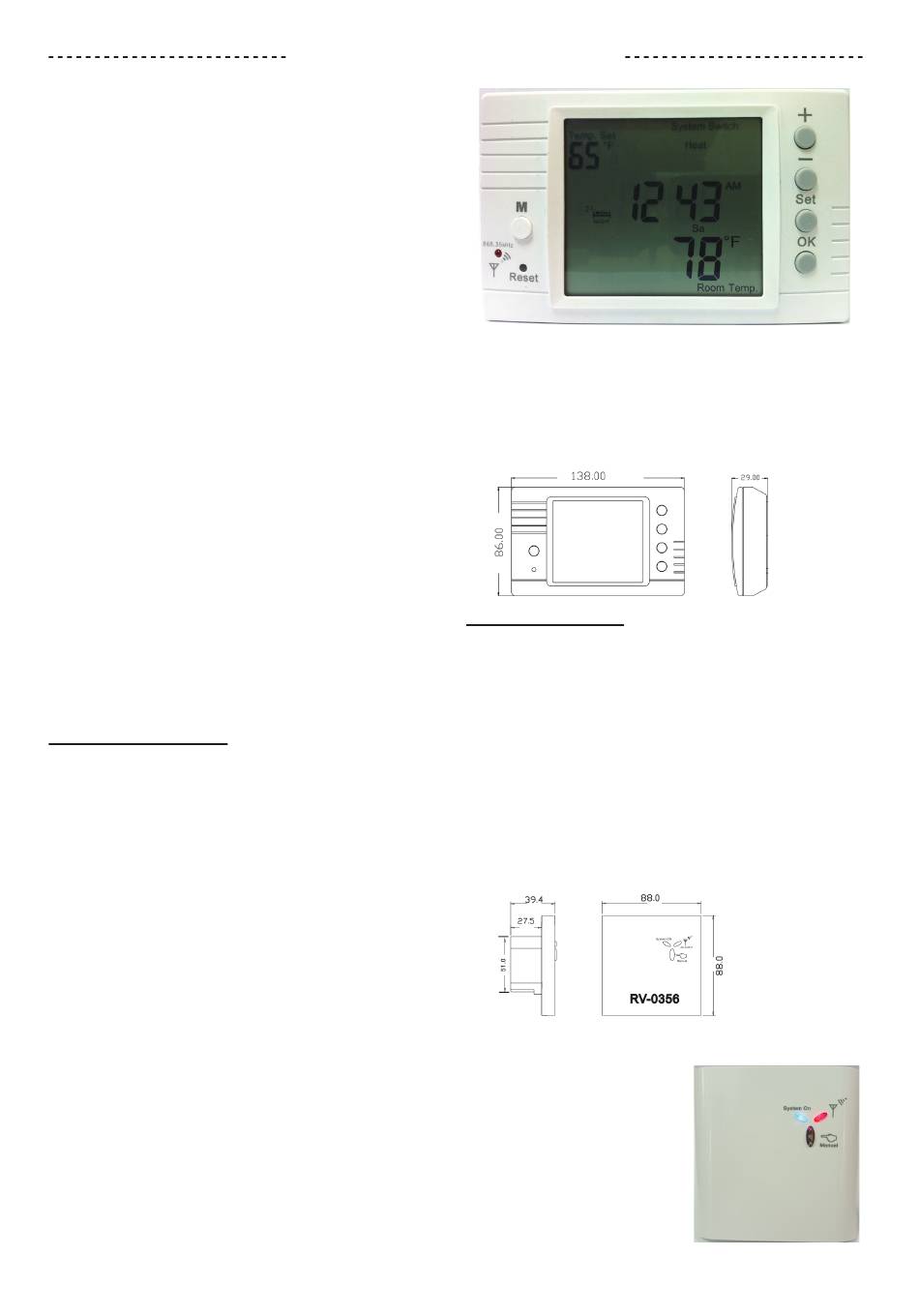

TH-2005 Wireless Programmable Thermostat
This Programmable R/F controlled Room- Thermosta-
Pair consists of a mobile Transmitter Unit TH-2005(TX)
(Surface-mount bracket for installing this unit is
available) and a Receiver unit RV-0356 which is designed
with flush-mounting structure to fit most commercially
available recessed conduit boxes of 60 mm for controls
of 1channel(2 pipes) heating /cooling. Surface-mount
box for installing Receiver and a Stand to for holding
Transmitter on desk are included.
Its installation requires no wiring between Transmitter
& Receiver and can be fitted in any normal operating
environment within 30 meters range between the two
units.
Unique facility of R/F-address code setting is built
into R/F Receiver as part of commissioning procedure
to ensure that your R/F Receiver will only respond
to instruction sent to it from Transmitter. The special
feature of blue-backlit & soft-Key in the Transmitter
provide easy operating in dim surrounding.
There are 3 working frequencies in this thermostat-
pair available for choice. Working "frequency" is marked
on the top of plastic housing on both Transmitter and
Receiver. The marked frequency on both units must be
consistent, or this thermostat pair will not operate.
The transmitter unit requires 2 x AAA Alkaline for
operation to power the thermostat, the Receiver unit
will be connected to the main in operation.
Technical Data
Transmitter Unit TH-2005
1. Power supply: 1.5 V AAA Battery x 2
2. Battery Low protection integrated.
3. Temperature reading: °C/°F selective by internal
setting.
Default setting: °C
4. Clock format: 24H/12H selectable by internal setting.
Default setting: 24H
5. Temperature sampling rate: 1 minute
6. Switching differential (Hysteresis):
0.5°C~1.0°C / 1.0°F~2.0°F selectable by internal
setting
7. Temperature control range : 5~35°C
8. Temperature display range : 0~50°C
9. Temperature setting: 1.0°C
10. Programming feature:
7-d or 5-1-1d day-format & P6/P4 program- periods/
day by default setting, not selectable at user's side.
Default setting : 5-1-1d /P4
11. Shortest cycle rate protection : 3-minute. Default
setting "deactivated".
12. Non volatile EEPROM ensure no program/setting loss
13. Temperature sensor: NTC 100K Ω at 25 °C
SAVE THESE INSTRUCTIONS
14. Working Frequency: 3 types for option
(preset ,not selective at user's side)
•
•
•
15. Working distance: 30 meters
16. Dimension: 138 W x 86 H x 29 D mm.
Receiver Unit RV-0356
1. Operatingpow:er:230±10%Vac, 50/60Hz
2. Power consumption:5VA
3. Out put rating: Volt-free, 10Amp/250Vac resistive, in
each channel.
4. Storage temperature: -10°C ~ 60°C
5. Working frequency:
•
•
•
6. Working distance: 30 Meters
7. Tempe rature sensor: NTC 10 KΩ at 25°C
8. Installation: 60 mm flush-mount
9. Dimension : 88.0 W x 88.0 H x 39.4 D mm
1/6
T433: 433 MHZ
T868: 868 MHZ
T915: 915 MHZ
433MHz
868MHz
915MHz
