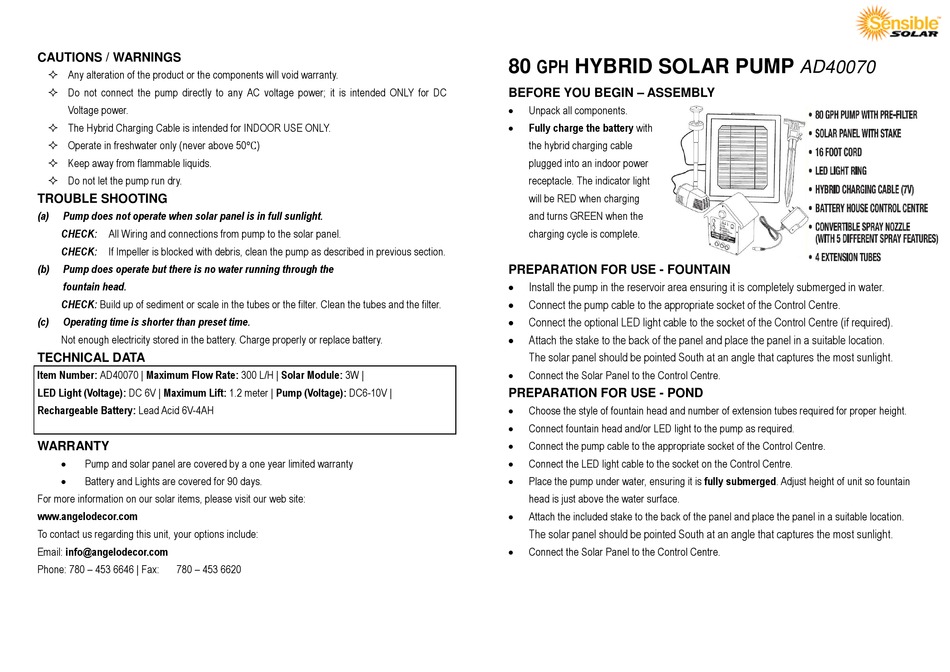

Sensible Solar AD40070 Manual

CAUTIONS / WARNINGS

 Any alteration of the product or the components will void warranty.
 Do not connect the pump directly to any AC voltage power; it is intended ONLY for DC
Voltage power.
 The Hybrid Charging Cable is intended for INDOOR USE ONLY.
 Operate in freshwater only (never above 50℃)
 Keep away from flammable liquids.
 Do not let the pump run dry.

TROUBLE SHOOTING

(a) Pump does not operate when solar panel is in full sunlight.
CHECK: All Wiring and connections from pump to the solar panel.
CHECK: If Impeller is blocked with debris, clean the pump as described in previous section.
(b) Pump does operate but there is no water running through the
fountain head.
CHECK: Build up of sediment or scale in the tubes or the filter. Clean the tubes and the filter.
(c) Operating time is shorter than preset time.
Not enough electricity stored in the battery. Charge properly or replace battery.

TECHNICAL DATA

Item Number: AD40070 | Maximum Flow Rate: 300 L/H | Solar Module: 3W |
LED Light (Voltage): DC 6V | Maximum Lift: 1.2 meter | Pump (Voltage): DC6-10V |
Rechargeable Battery: Lead Acid 6V-4AH

WARRANTY


Pump and solar panel are covered by a one year limited warranty

Battery and Lights are covered for 90 days.
For more information on our solar items, please visit our web site:
www.angelodecor.com
To contact us regarding this unit, your options include:
Email: info@angelodecor.com
Phone: 780 – 453 6646 | Fax: 780 – 453 6620
GPH
80 HYBRID SOLAR PUMP
BEFORE YOU BEGIN – ASSEMBLY

Unpack all components.

Fully charge the battery with
the hybrid charging cable
plugged into an indoor power
receptacle. The indicator light
will be RED when charging
and turns GREEN when the
charging cycle is complete.

PREPARATION FOR USE - FOUNTAIN


Install the pump in the reservoir area ensuring it is completely submerged in water.

Connect the pump cable to the appropriate socket of the Control Centre.

Connect the optional LED light cable to the socket of the Control Centre (if required).

Attach the stake to the back of the panel and place the panel in a suitable location.
The solar panel should be pointed South at an angle that captures the most sunlight.

Connect the Solar Panel to the Control Centre.

PREPARATION FOR USE - POND

 Choose the style of fountain head and number of extension tubes required for proper height.

Connect fountain head and/or LED light to the pump as required.

Connect the pump cable to the appropriate socket of the Control Centre.

Connect the LED light cable to the socket on the Control Centre.

Place the pump under water, ensuring it is fully submerged. Adjust height of unit so fountain
head is just above the water surface.

Attach the included stake to the back of the panel and place the panel in a suitable location.
The solar panel should be pointed South at an angle that captures the most sunlight.

Connect the Solar Panel to the Control Centre.
AD40070
