Dietsche BRAVAT F565104C-2-ENG Products Installation Instructions

E

SPECIFICATION

This technical product information is exclusively
GB
for the installer or trained specialists.
Please pass these instructions on to the user.
Application:
Operation with unpressurized storage heaters is not possible.
Specifications
Flow pressure: min. 0.5 bar – recommended 1 – 5 bar
O p r e t a n i g p e r s s r u : e m a . x
T e t s p e r s s r u : e
Flow rate at 3 bar flow pressure
f r o b t a : h a p p o r . x 2 1
f r o s h o w e : r a p p o r . x 1
H t o w t a r e l n i t e e t m p e a r u t e r m a . x
Recommended (energ y s a v n i g : )
If static pressure exceeds 5 bar, a pressure-reducing valve
must be fitted.
Avoid major pressure differences between hot and cold water
supply.
F

MAINTENANCE

Always turn water OFF before removing existing or disassembing the faucet. Open faucet handles to relieve water
CAUTION:
pressure and insure that complete water shut-off has been accomplished.
To keep the surface clean and bright, please clean the faucet regularly,please abide by the following
procedures:
1. Use rinsing water and soft cloth, clean bilge and bilge membrane on the surface to the best of the abilities.
2. Cleaned the residua with the following cleansers only.
Soft liquid cleanser.
Colorless glass cleanser, totally soluble powder cleanser without abrasive capability.(Mixed by instructions.)
No abrasive cleansers waxes.
Never use cleanser, emery cloth or handkerchief which can rub.
Never use cleaners containing abrasive cleansers, ammonia,bleach, acids, waxes, alcohol, solvents or other
products not recommended for chrome.
3. After cleaning, use rinsing water to clean all cleanser immediately and drying with a soft cotton cloth.
4. Carefully dismantle the aerator regularly, rinse under clean running water until any loose debris is cleared to avoid
the influence to water outflow.
G

SPECIAL STATEMENT

The products installation instruction is written in accordance with the latest product information, following the sustainable development
strategy of the Company, to improve continually the produce's specification, performance etc.,subject to change without notice. (The
Company reserves the right to interpret)
4
Designed and developed by Bravat/Dietsche Germany
Installation:
Flush piping system prior and after installation of
fitting thoroughly (Consider EN 806)!
Fitting a temperature limiter is possible
The projection can be increased by 20mm, extension
Function:
Check connections for leaks and check function of
1 0 b r a
fitting.
1 6 b r a
Flow is diverted automatically from shower outlet to
bath inlet when the fitting is closed.
5 , / l m n i
8 / l m n i
Maintenance:
8 0 ° C
Inspect and clean all components and replace if
6 0 ° C
necessary.
Shut off water supply for maintenance work.
When installing the cartridge, ensure that the
seals are correctly seated.
Tighten the screws evenly and alternately.

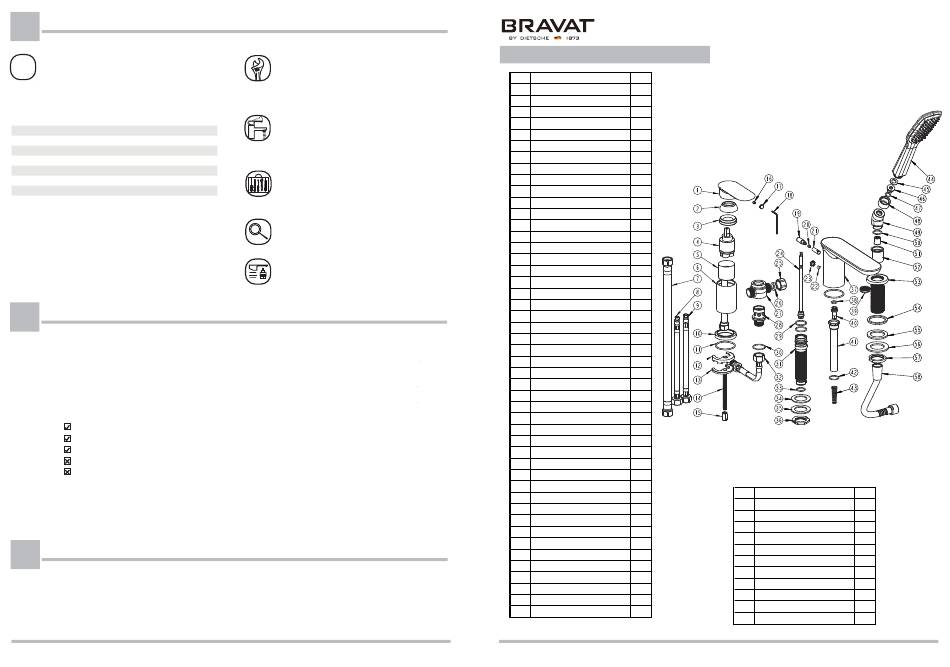

Replacement parts: see exploded drawing
(* = special accessories)
Care: see Care Instructions
PRODUCTS INSTALLATION INSTRUCTIONS
NO. NAME
1 Handle
2 Dome
3 Nut
4 Cartridge
5 Cartridge Base Assembly
6 Cartridge Cover
7 Hose(700)
8 Braided Hose(Hot)
9 Braided Hose(Cold)
10 Decorative Cover
11 O-Ring D42XD2.5
12 Rubber Washer
13 Washer
14 Shank M8x90
15 Nut
16 Set Screw
17 Plug
18 Allen Key 2.5
19 Knod
20 Set Screw M5X8
21 Knod Connector
22 Set Screw M6x6
23 Button
24 Diverter Assembly
25 Blockage Cap
26 Washer D10xXD18X4
27 Connector
28 Connector
29 O-Ring D23XD2
30 O-Ring D26XD2
31 Shank
32 Hose
33 O-Ring D17XD2
34 Washer 45X28.5X2
35 Washer D45XD29X2
36 Lock Nut
37 Spout
38 O-Ring D10XD2
39 Aerator
40 Diverter Shank
41 Shank
42 O-Ring 19.5X1.8
43 Spring
44 Handle Shower
45 Washer D18.5XD10.5X2
46 Connector
47 O-Ring D9.5XD1.8
15121302 15121302
MODEL: F565104C-2-ENG
Description: 3Pcs Widespread Bath Faucet
QTY.
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
NO. NAME
1
48 Nut
1
49 Shower Connector
1
50 O-Ring D17.8XD2
1
51 Check Valve
1
52 Retainer
1
53 Shower Holder
1
54 Washer D46XD38X3
1
55 Washer D33.5XD48X3
1
56 Washer
1
57 Nut
1
58 Hose
Designed and developed by Bravat/Dietsche Germany
QTY.
1
1
1
1
1
1
1
1
1
1
1
1
