DA-052 R
EMOTE
DA-052 R
W
EMOTE
HISTLE
1. Unplug Drive-Alert Control Panel

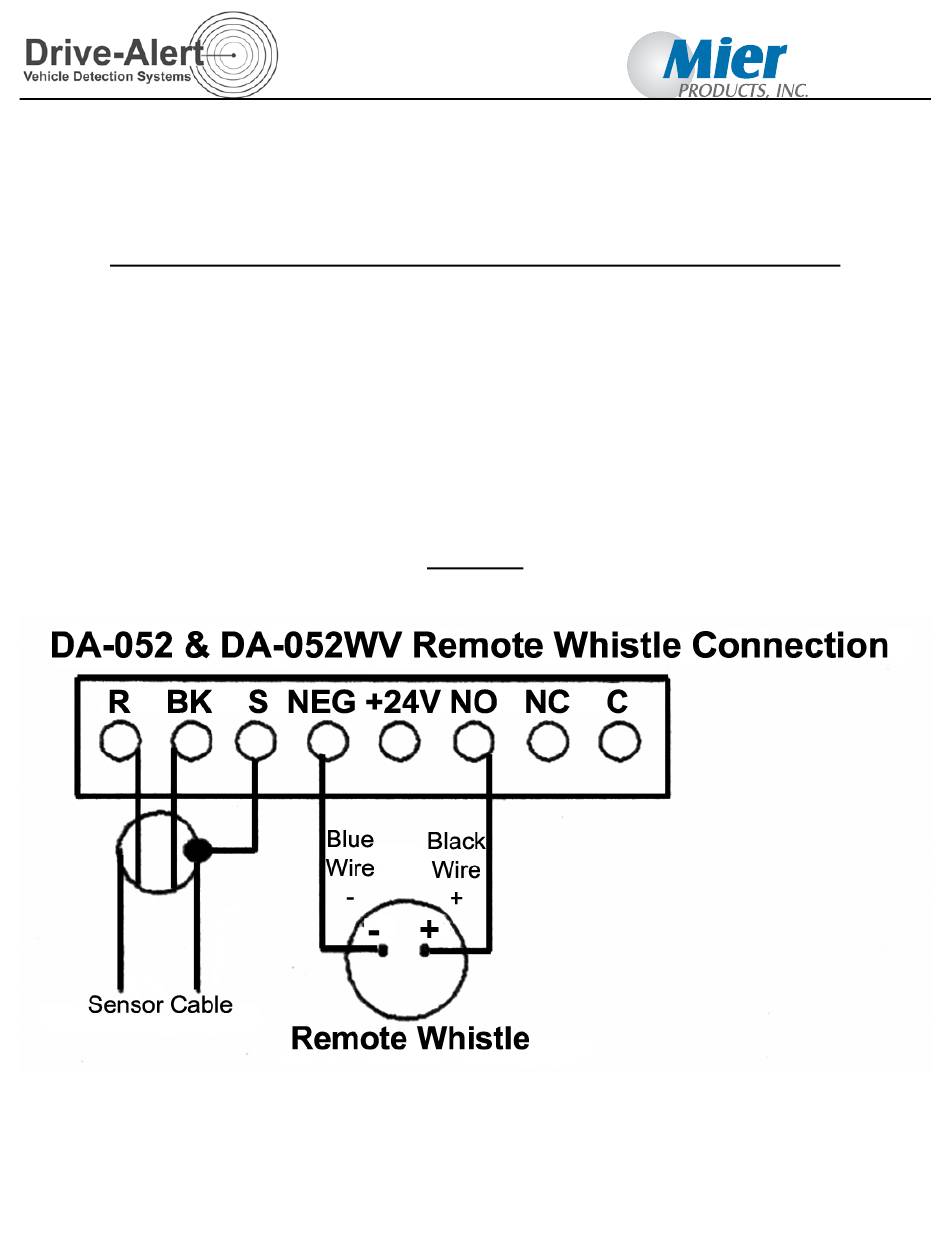

2. Connect the DA-052 or DA-052WV wires as shown below in Diagram "A"
3. Connect the BLUE wire (-) to the Drive-Alert Control Panel's NEG Terminal
4. Connect the BLACK wire (+) to the Drive-Alert Control Panel's NO Terminal
5. Whistle Switch must be "ON" at all times (if equipped on the Drive-Alert model you choose)
__________________________________________________________________________________________
W
DA-052WV (
HISTLE AND
I
:
NSTALLATION
Diagram A
1500 North Ann Street
Kokomo, IN 46901
800-473-0213 ~ Fax: 765-457-0607
Email: info@mierproducts.com
Website: www.mierproducts.com
V
C
WITH
OLUME
ONTROL
) I
NSTRUCTIONS
1
Advertisement
Table of Contents
Summary of Contents for Mier DA-052
- Page 1 NSTALLATION 1. Unplug Drive-Alert Control Panel 2. Connect the DA-052 or DA-052WV wires as shown below in Diagram “A” 3. Connect the BLUE wire (-) to the Drive-Alert Control Panel’s NEG Terminal 4. Connect the BLACK wire (+) to the Drive-Alert Control Panel’s NO Terminal 5.
- Page 2 Inc. agrees to repair or replace parts (Mier’s option) that are deemed defective by our Quality Control Team, without charge for parts or labor, if the defective unit is returned prepaid to Mier Products, Inc., Kokomo, IN, 46901, within the one year period.
