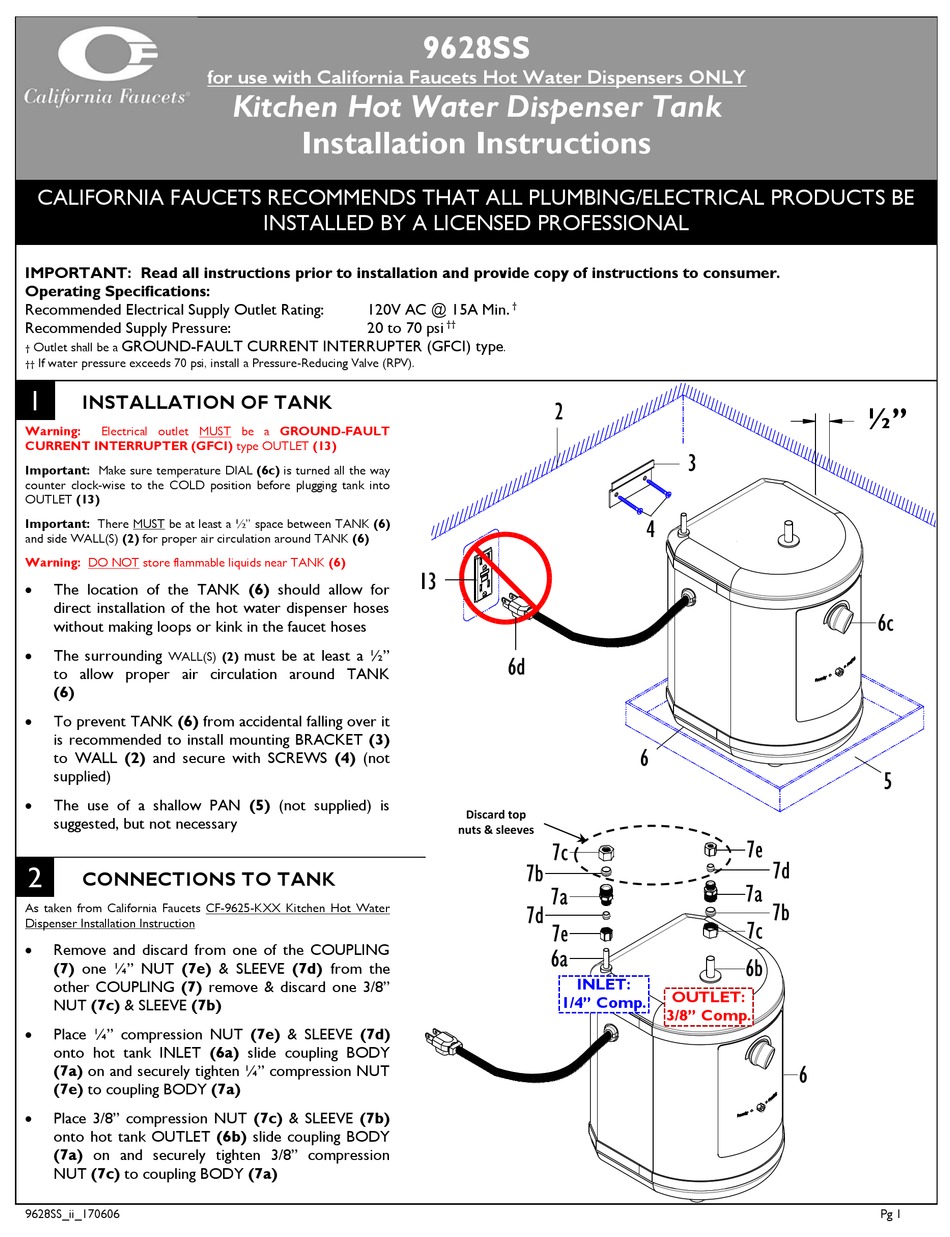

California Faucets 9628SS Installation Instructions

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING/ELECTRICAL PRODUCTS BE
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
Operating Specifications:
Recommended Electrical Supply Outlet Rating:
Recommended Supply Pressure:
GROUND-FAULT CURRENT INTERRUPTER (GFCI) type
Outlet shall be a
†
If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (RPV).
††
1

INSTALLATION OF TANK

Warning: Electrical outlet MUST be a GROUND-FAULT
CURRENT INTERRUPTER (GFCI) type OUTLET (13)
Important: Make sure temperature DIAL (6c) is turned all the way
counter clock-wise to the COLD position before plugging tank into
OUTLET (13)
Important: There MUST be at least a ½" space between TANK (6)
and side WALL(S) (2) for proper air circulation around TANK (6)
Warning: DO NOT store flammable liquids near TANK (6)

The location of the TANK (6) should allow for
direct installation of the hot water dispenser hoses
without making loops or kink in the faucet hoses

The surrounding
WALL(S) (2)
to allow proper air circulation around TANK
(6)

To prevent TANK (6) from accidental falling over it
is recommended to install mounting BRACKET (3)
to WALL (2) and secure with SCREWS (4) (not
supplied)

The use of a shallow PAN (5) (not supplied) is
suggested, but not necessary
2

CONNECTIONS TO TANK

As taken from California Faucets CF-9625-KXX Kitchen Hot Water
Dispenser Installation Instruction

Remove and discard from one of the COUPLING
(7) one ¼" NUT (7e) & SLEEVE (7d) from the
other COUPLING (7) remove & discard one 3/8"
NUT (7c) & SLEEVE (7b)

Place ¼" compression NUT (7e) & SLEEVE (7d)
onto hot tank INLET (6a) slide coupling BODY
(7a) on and securely tighten ¼" compression NUT
(7e) to coupling BODY (7a)

Place 3/8" compression NUT (7c) & SLEEVE (7b)
onto hot tank OUTLET (6b) slide coupling BODY
(7a) on and securely tighten 3/8" compression
NUT (7c) to coupling BODY (7a)
9628SS_ii_170606
for use with California Faucets Hot Water Dispensers ONLY
Kitchen Hot Water Dispenser Tank
Installation Instructions
INSTALLED BY A LICENSED PROFESSIONAL
120V AC @ 15A Min.
20 to 70 psi
must be at least a ½"
9628SS
†
††
.
Discard top
nuts & sleeves
INLET:
1/4" Comp.
OUTLET:
3/8" Comp.
½"
Pg 1
