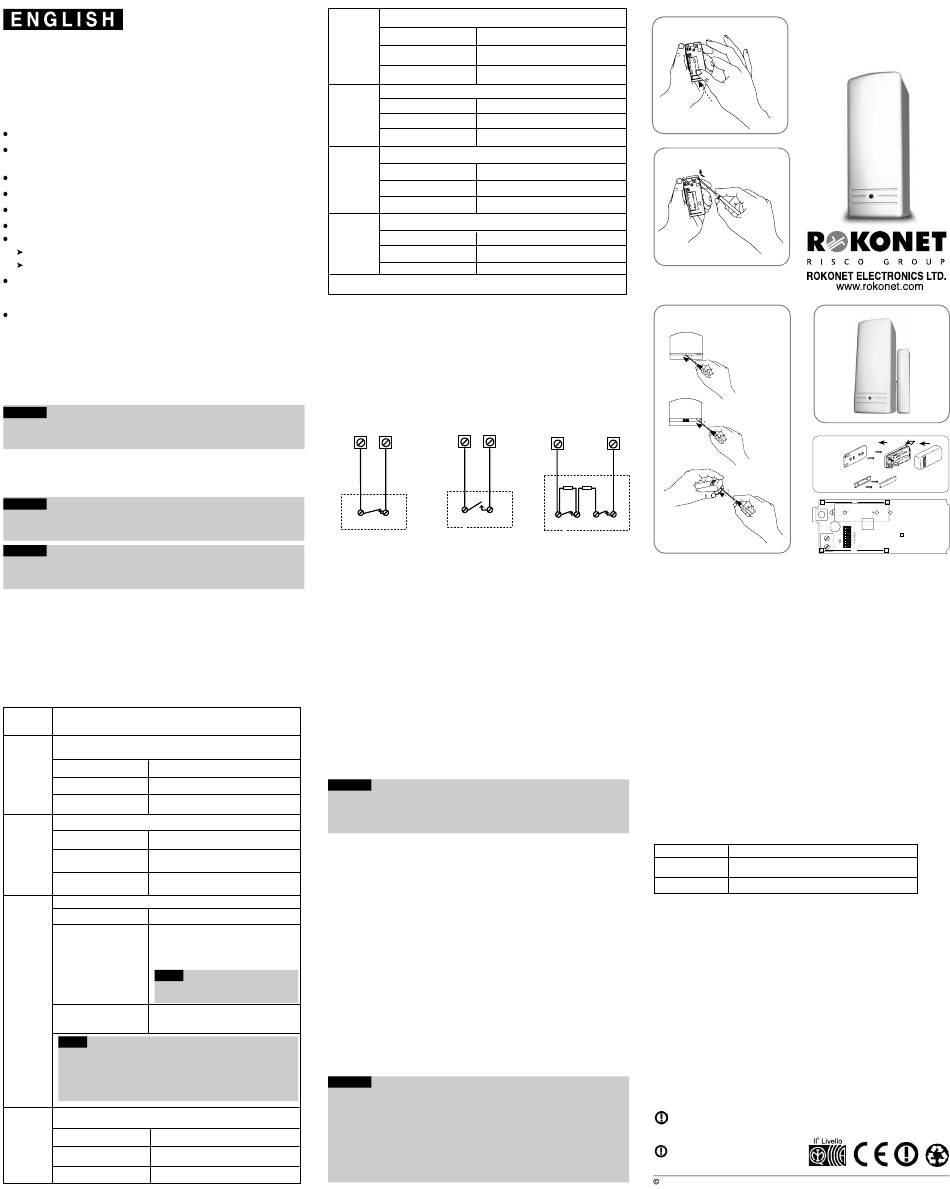

1. GENERAL DESCRIPTION

The RWT72M868IQA/RWT71M433IQA are supervised general
purpose transmitter that can be connected to magnetic contacts
(door/window protection) or to other sensors. It operates together
with Rokonet's programmable receivers and is powered by a standard
3-volt lithium battery.
MAIN FEATURES
Operates up to 1000 ft. (300m) range (outdoor)
Uses one of more than 16 million pseudo-randomaly selected
code addresses for setup (no DIP swiches).
Microprocessor design.
Extended battery life.
Selective fully supervised: 15/65 minutes.
Hold on/off
Selective response time:
Fast - for shock sensors
Slow - for magnetic switches, etc.
Selective wired input - N.C., N.O. or DEOL
Back & Cover tamper protection

2. OPERATIONAL MODES

NORMAL: The RWT72M868IQA/RWT71M433IQA transmits an
alarm message when it is triggered; when restored, it transmits a
restoral message. Only one alarm message is transmitted in any
2.5 minutes time slot.
Note:
Extra restoral message can be generated by reopening
and closing the inputs.
WRITE: A Write message will be transmitted by pressing both tamper
buttons (back and cover) for at least 3 seconds.
Note:
The unit sends a supervisory message every 15/65 minutes
indicating the input state and battery condition.
Note:
At installation or replacement, perform a Communication
Check with the receiver to verify proper operation.

LED INDICATION

After each detection, the LED turns ON momentarily.
On Low Battery condition - the LED will blink during each transmission.

3. DIPSWITCH SETTINGS

The RWT72M868IQA/RWT71M433IQA has eight dipswitches:
Dipswitch
D e s c r i p t i o n
Number
Used to determine the external sensor mode.
1
Dipswitch Position
External Sensor Mode
Normally Closed (NC)
ON
*
OFF Normally Open (NO)
Used to determine the transmitter response time.
2
Dipswitch Position Response Time
*
Fast: 10 ms (For operation with a
ON
shock sensor)
Slow: 400 ms (For operation with
OFF
magnetic contacts, etc.)
Used to determine the transmitter HOLD status.
3
Dipswitch Position
Hold is On: There will be 2.5 minutes dead
ON
time between the alarm detection
transmissions. (Restore messages will be
sent immiately).
Note:
Only one alarm message is transmitted
in any 2.5 minute period.
*
Hold is Off: No dead time between alarm
OFF
detection transmissions (the unit transmits
after each detection).
Note:
In both HOLD status the following occurs:
1. Disconnecting the detector's input terminal will send an alarm
after 400 ms.
2. Reopening and closing the detector inputs will generate an
extra alarm and restore messages.
4
Used to determine the time between the transmitter supervision messages.
Dipswitch Position Supervision 15/65 Minutes
15 minutes
ON
*
OFF 65 minutes
5
6
7
8
*
= Default

4. INPUT CONNECTION

Use the following diagrams for appropriate input termination wiring.
For DEOL termination connect two 470K Ohm resistors (supplied)
as illustrated below.
INPUT TERMINATIONS
NORMALLY CLOSED
INPUT CONFIGURATION
Transmitter Terminal Block
ALARM
DETECTOR

5. FRONT COVER REMOVAL (Fig. 1).

6. TRANSMITTER/RECEIVER COMMUNICATION SETUP

The RWT72M868IQA/RWT71M433IQA must identify itself to the
system's receiver by writing its coded message into the receiver's
address memory. This is accomplished by performing the following
steps:
a. Set the receiver to Write Mode.
b. Remove the battery from the insulation material (Fig. 2).
Send a Write message pressing both tamper buttons (back and
cover) for at least 3 seconds. Verify that
RWT72M868IQA/RWT71M433IQA has been identified by the
receiver.
c. Set the receiver to Normal Mode.
Note:
If for any reason it is necessary to re-send a write message,
press both of the tamper buttons (back and cover) for at
least 3 seconds.

7. SELECTION OF INSTALLATION LOCATION

a. Select a location best suited for communication
quality and near the intended wired detector (for switched sensor).
Place the unit at the highest possible position.
Hold Status
b. Temporarily attach the unit to this point using two sided adhesive
tape.
c. Generate an alarm signal (by momentarily opening or closing
the input terminals) and verify that the receiver has received the
signal. If the alarm signal is not detected, reposition the
RWT72M868IQA/RWT71M433IQA and try again.

8. FINAL MOUNTING

Separate the back part of the transmitter (Fig. 3), and mount all the
parts in place (Fig. 4).
If relevant, connect the sensor to the input terminals.
Notes:
1. The mark on the magnet's plastic case should be opposite the
mark on the transmitter's case (Fig. 5).
2. When installing the product, be sure that the back tamper is
correctly closed against the wall.
3. For installations on wood or alloy, the maximum distance for
normal operation is 10mm, while for metal ferromagnetic materials
(iron) it is 5mm.
Used to determine whether the external sensor input will be DEOL or not.
Dipswitch Position
ENABLE / DISABLE DEOL
*
Enable DEOL
ON
OFF
Disable DEOL
To activate or deactivate function of Rokonet's magnet.
Internal Reed Switch (S2)
Dipswitch Position
ON Disable
*
OFF Enable
To activate or deactivate function of anti- sabotage.
Dipswitch Position
Internal Reed Switch (S1)
*
Enable
ON
OFF Disable
Used to determine the transmitter power
Dipswitch Position
RF Power Transmission
RF low power (when the transmitter is
ON
close the receiver)
*
RF high power
OFF
NORMALLY OPEN INPUT DOUBLE END OF LINE
CONFIGURATION INPUT CONFIGURATION
Transmitter Terminal Block Transmitter Terminal Block
470
ALARM
ALARM
DETECTOR
DETECTOR
Fig. 2
Fig. 3
Fig. 1
a
b
470
K K
TAMPER

TECHNICAL SPECIFICATIONS

ELECTRICAL
Battery Type:
Current Consumption:
Frequency:
Dead Time (HOLD ON):
Supervision Transmission:
Modulation Type:
Battery Life:
PHYSICAL Size:
ENVIRONMENTAL
RF immunity:
Operating temperature:
Storage temperature:
Specifications are subject to change without prior notice.
Should any questions arise please contact your supplier.

Ordering Information:

Description
Part Number
Universal transmitter with magnet- 868.65 MHz
RWT72M868IQA
RWT71M433IQA Universal transmitter with magnet- 433.92 MHz
USA
Rokonet Industries, Inc.
Tel: +1-305-592-3820
Fax: +1-305-592-3825
Toll Free: 1-800-344-2025
e-mail: sales@rokonetusa.com
UK
Risco Group UK Ltd.
Tel: +44-161-655-5500
Fax: +44-161-655-5501
Free Phone: 0870-60-510000
e-mail: sales@riscogroup.co.uk
ITALY
Rokonet Electronics SRL
Tel: +39-02-392-5354
Fax:: +39-02-392-5131
e-mail: info@rokonet.it
RW T 71 X4 3 3 IQA: No t re stricte d
fro m u se i n an y Eu ro pe a n
C ommun i ty co u ntri e s.
RW T 7 2 X8 6 8 IQA: R estri cte d from
u se i n the Sl o vak R e p ub l i c.
9/05 Rokonet Electronics Ltd.
RWT72M868IQA/
RWT71M433IQA
TRANSMITTER
Fig. 5
Fig. 4
199 8
KON ET
© RO
S1 1PCT72IQX000B
SW1
BATTERY
LD1
SW2
H1
ANT
S2
CR123 3V Lithium Battery
10µA standby
433.92/ 868.65 MHz
2.5 minutes
Every 15/65 minutes
ASK
5 years (HOLD ON)
81x35x32 mm (3.2 x 1.37 x1.27 in.)
20V/m 80MHz to 1GHz
0°C to 50°C (32°F to 122°F)
-20°C to 60°C (-4°F to 140°F)
